Replacing the Rope Grounding Kit

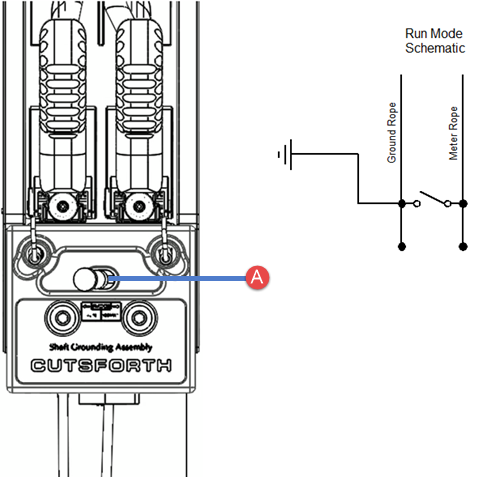

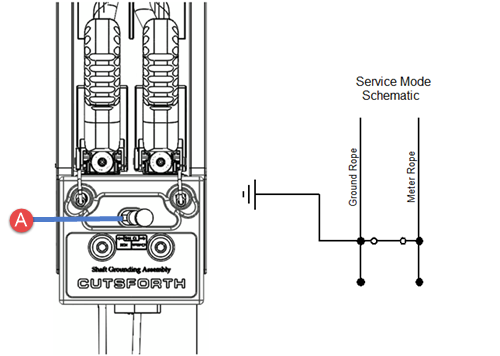

If unit is online, flip the switch  to "Dual Ground" or "Service" mode. If you are changing ropes online, always have one rope installed in the grounding system to ensure the shaft is grounded throughout the rope change.

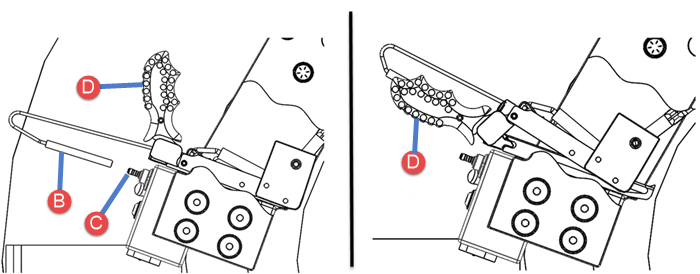

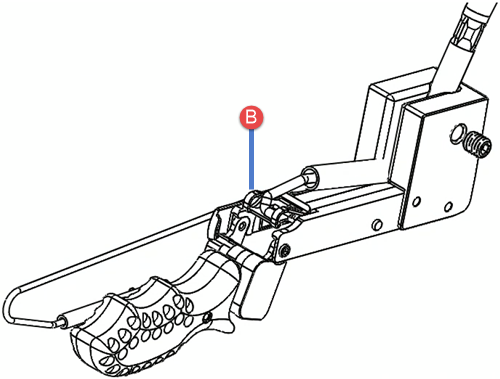

Disconnect the signal wire  from the junction box adapter faceplate . Then, while maintaining control of the holder, apply pressure to the handle  away from the shaft and rotate it to its retracted position.

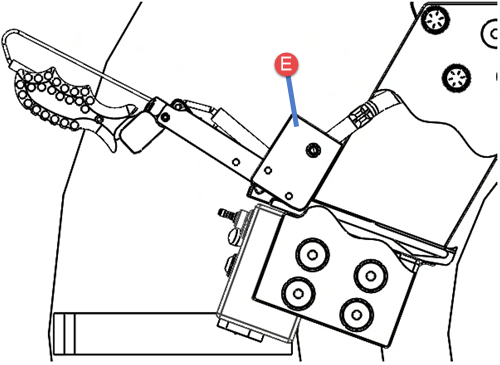

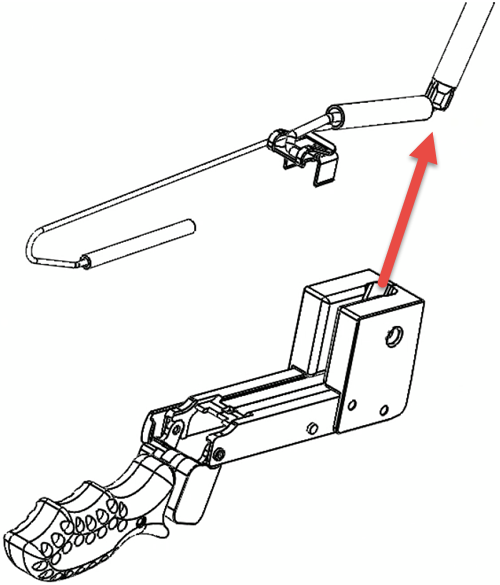

Once the holder  is free to slide on the mount, pull the holder away from the shaft to remove it from the mount.

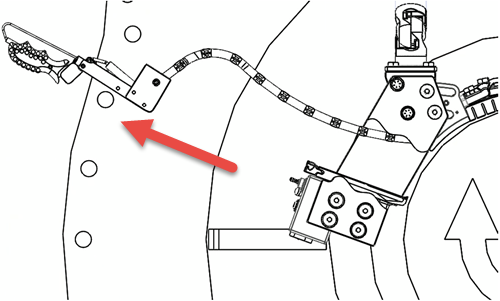

Continue to pull the holder and rope away from the grounding system while maintaining control of the rope until the rope is completely removed.

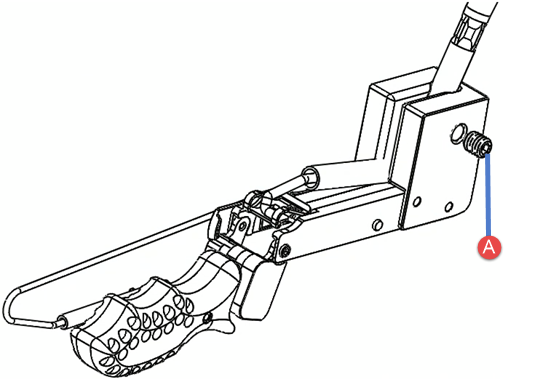

Use a 1/4 in hex key wrench to unscrew the set screw  holding the rope in position.

Unclip the terminal  from the terminal mount rib.

Slide the copper rope up and out of the rope slot.

Install the Rope Grounding Kit.

Install the rope holders and verify the installation.

Flip the switch located below the rope holders back to "Metering" or "Run" mode.
