This manual describes the installation of the Cutsforth Shaft Grounding System.
The following parts are included in the Shaft Grounding System installation package:
|

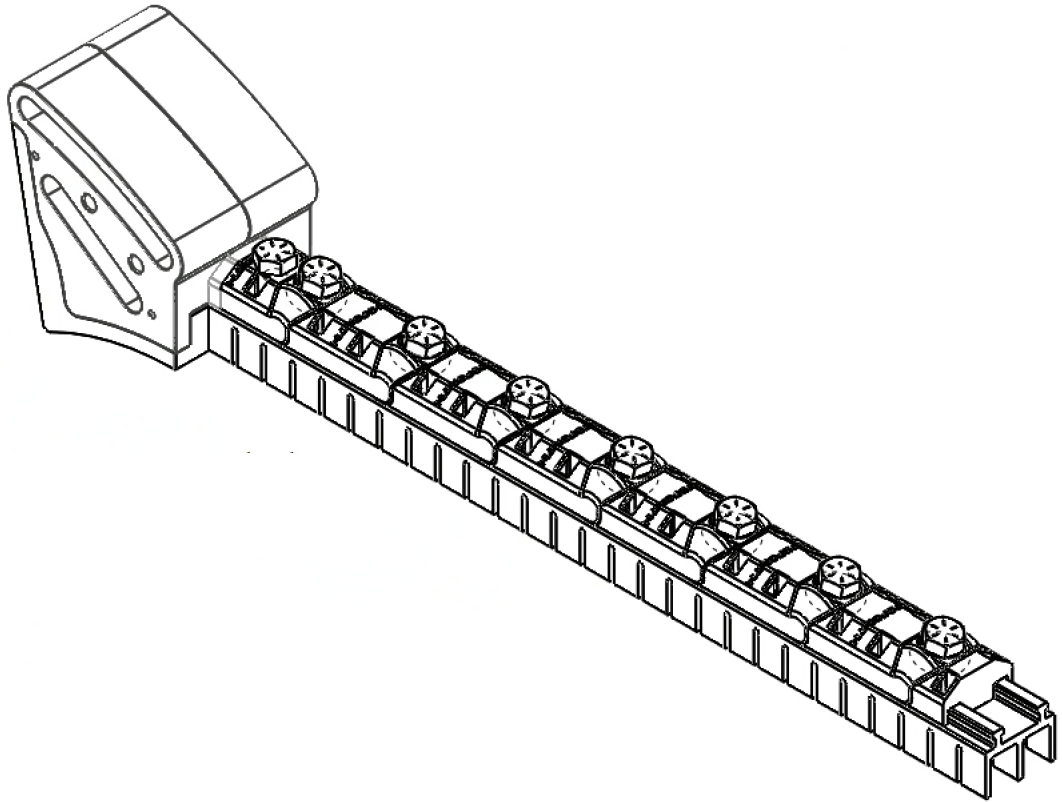

2 Cutsforth Shaft grounding rope holders Part # EGHA-003 |
|
1 Remote Meter Point for Shaft Grounding Assembly - Comes with four wall mounting brackets and 4 M4 x 10 mm self-tapping screws Part # EGSA-017 - Dimensions: 11.81 x 7.87 x 6.29 in |
|
|
1 Panel kit Part # EGSK-007 |
|

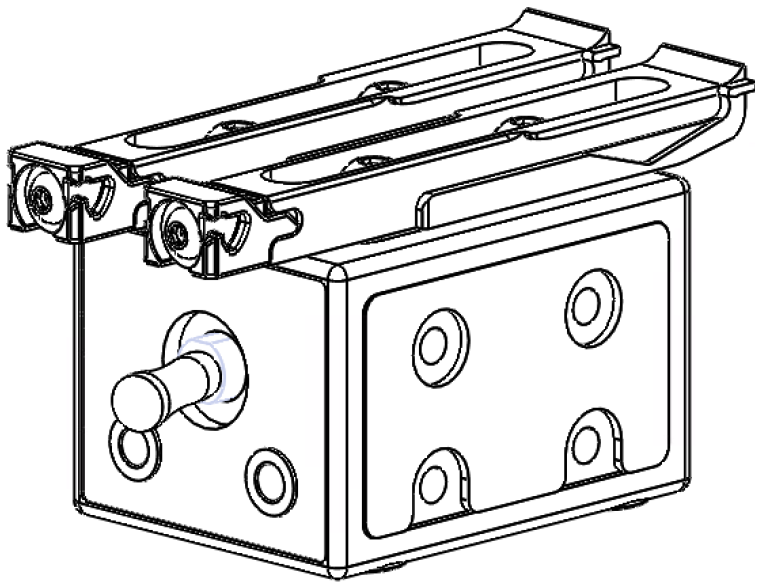

1 Junction box assembly Part # EGBA-001 |
|
|

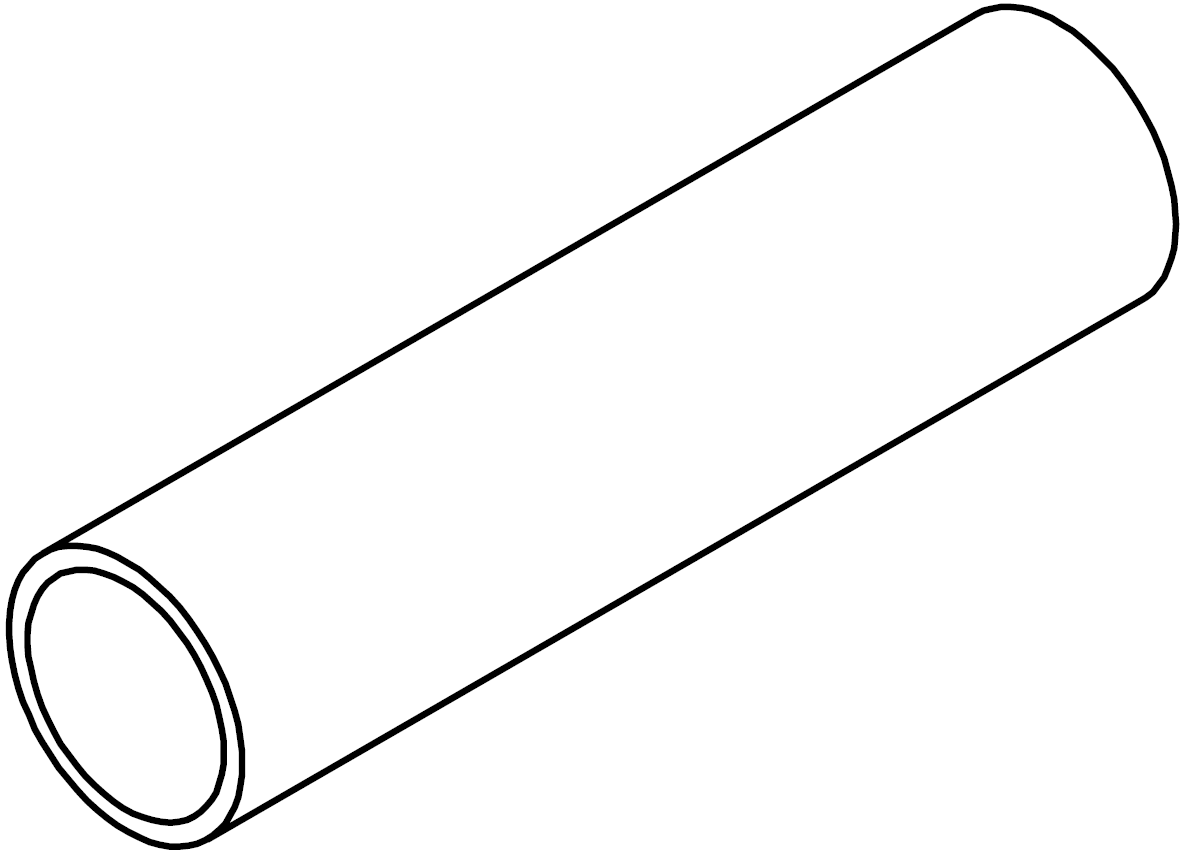

1 Section of attachment arm tubing Part # EGSM-012 |
|
2 Elbow assemblies Part # EGSA-003 |
|
|

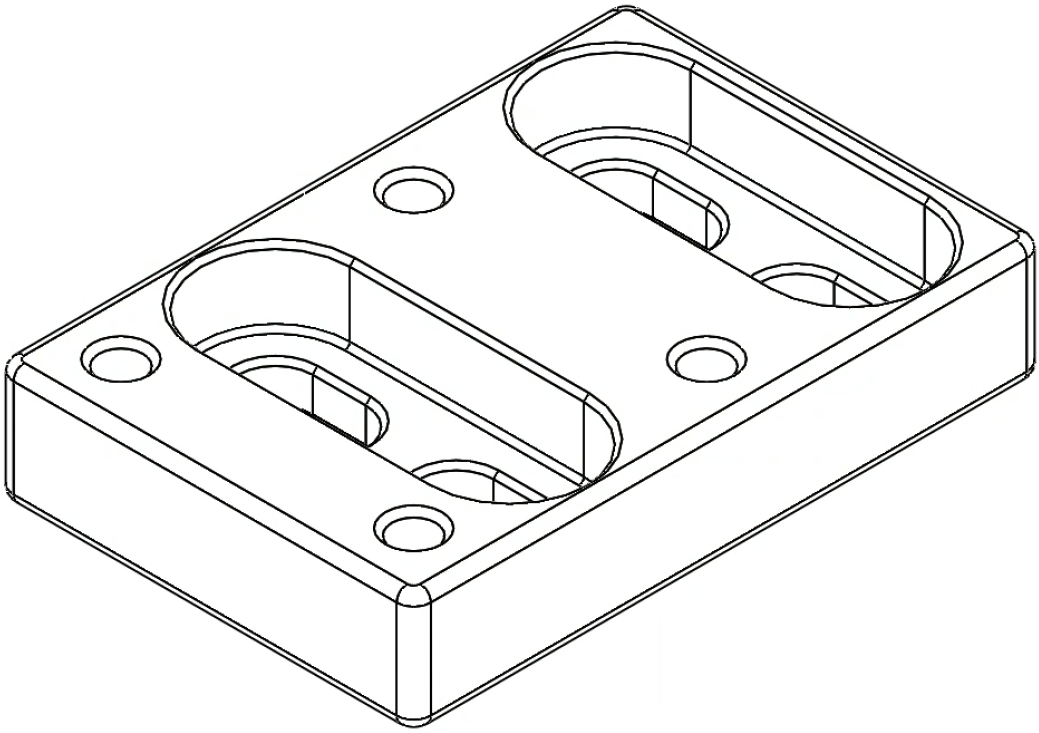

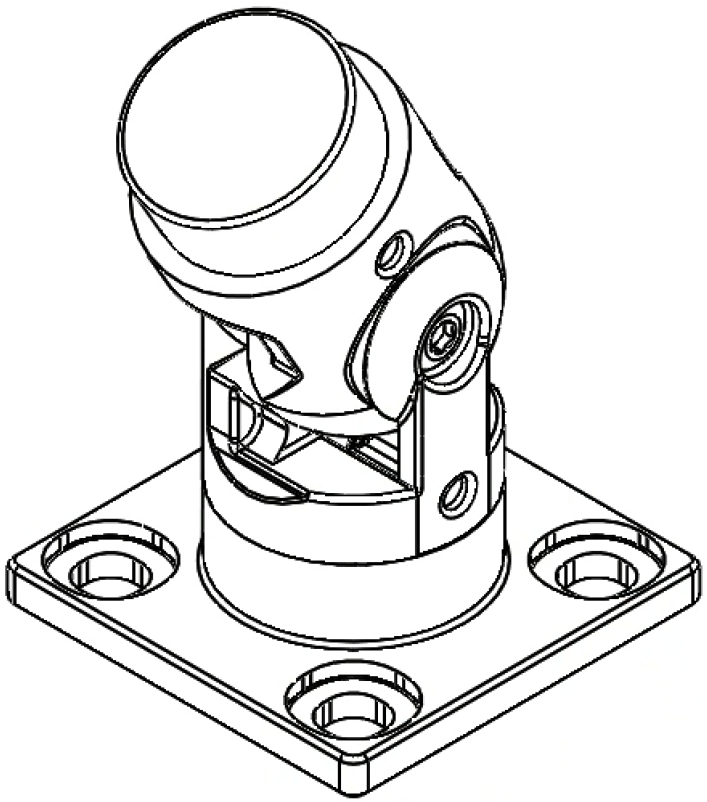

1 Mounting bracket spacer for GE units (Optional) Part # EGSM-016 |
|

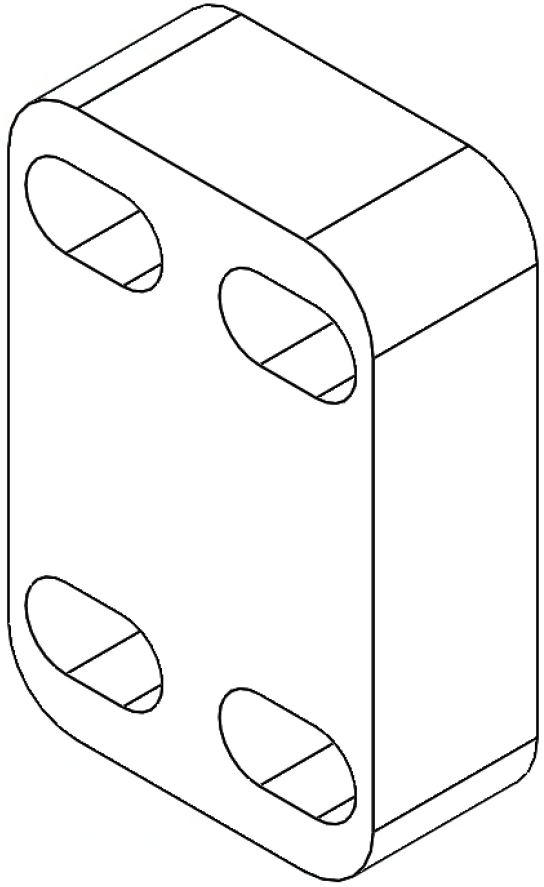

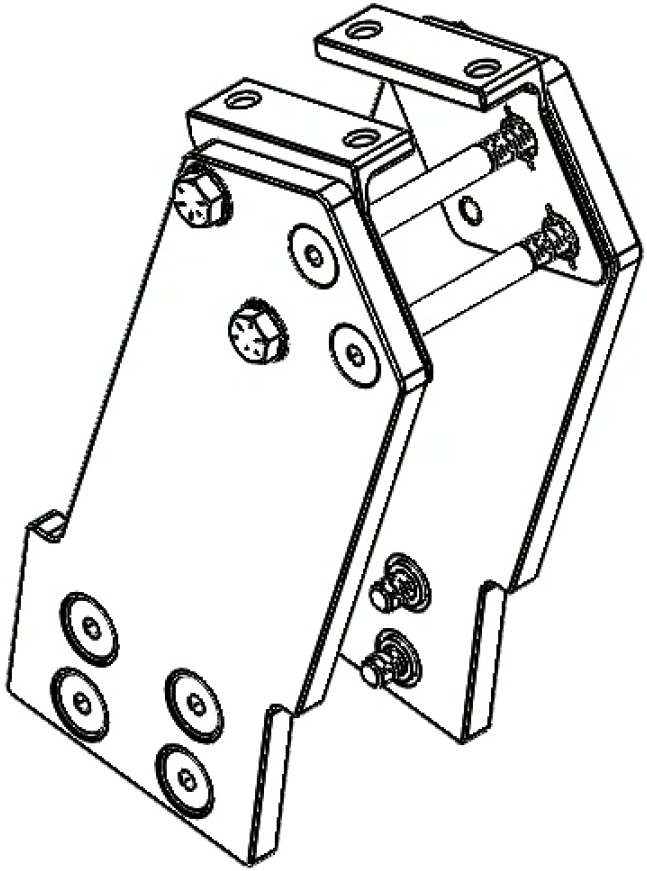

1 Mounting bracket adapter for GE Units (Optional) Part # EGSM-013 |
|
|

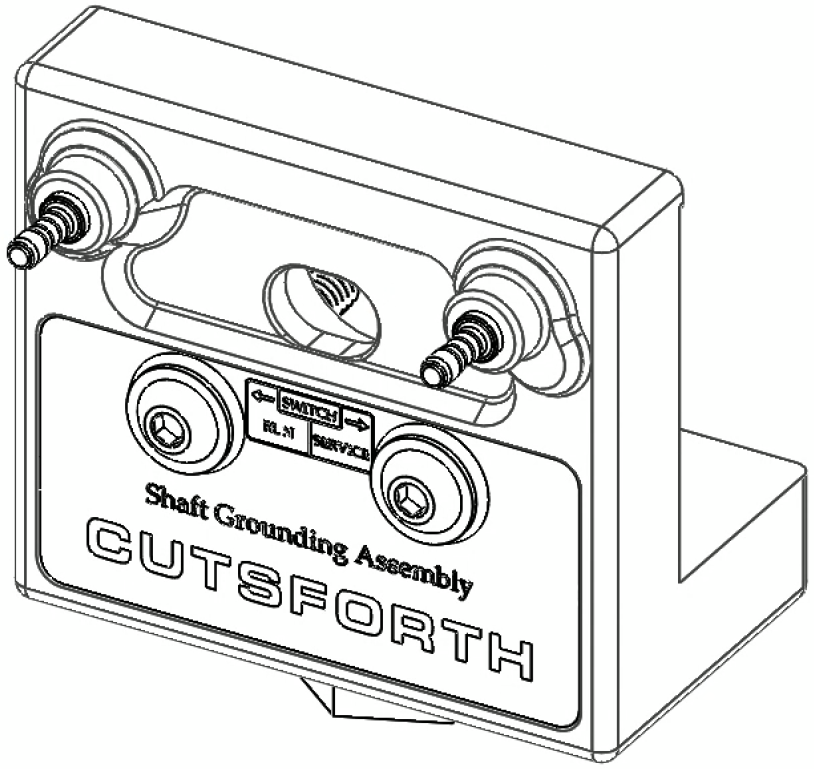

1 Junction box adapter assembly Part # EGBA-006 |
|

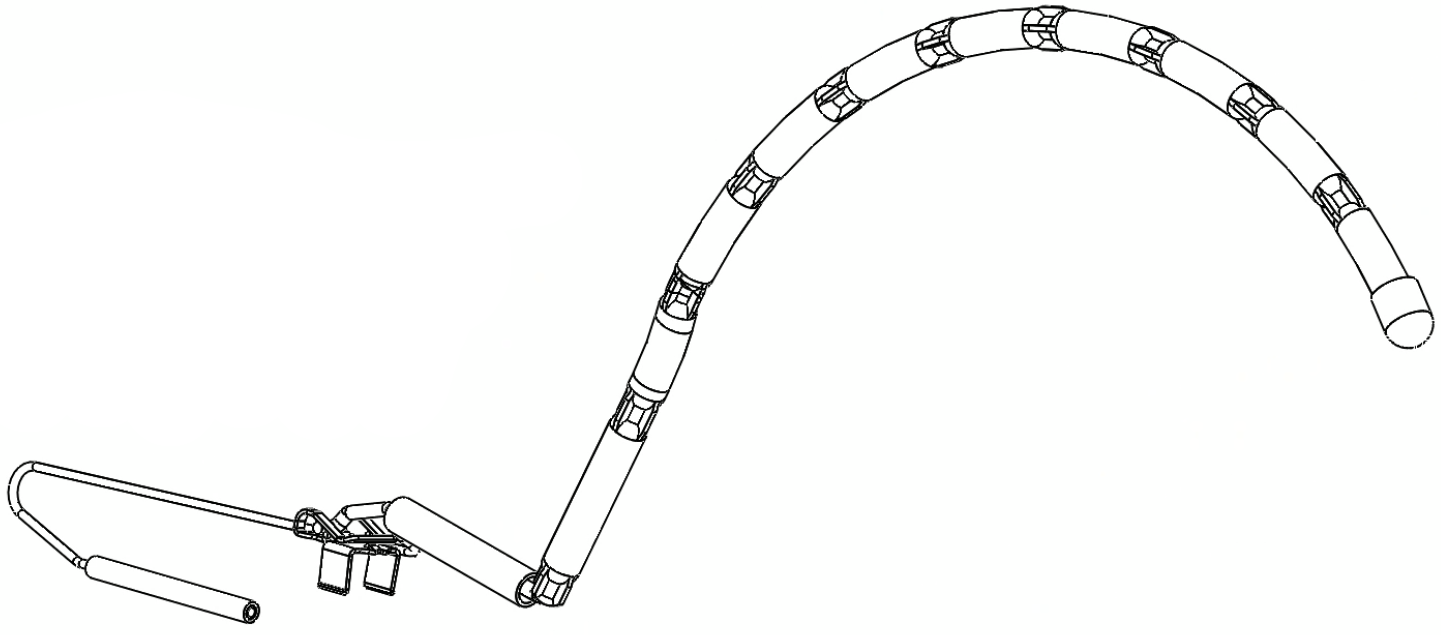

2 Grounding ropes with signal wires Part # EGHK-007, EGHK-008, or EGHK-011 |
|
|

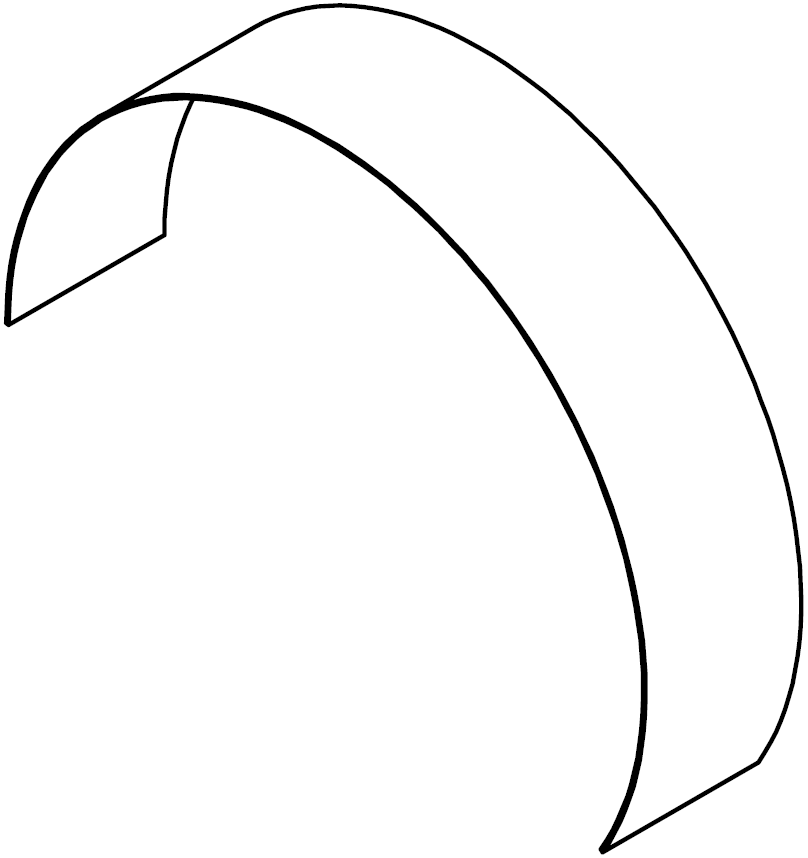

1 Rope guide spacer (1/16 in thick) |
|

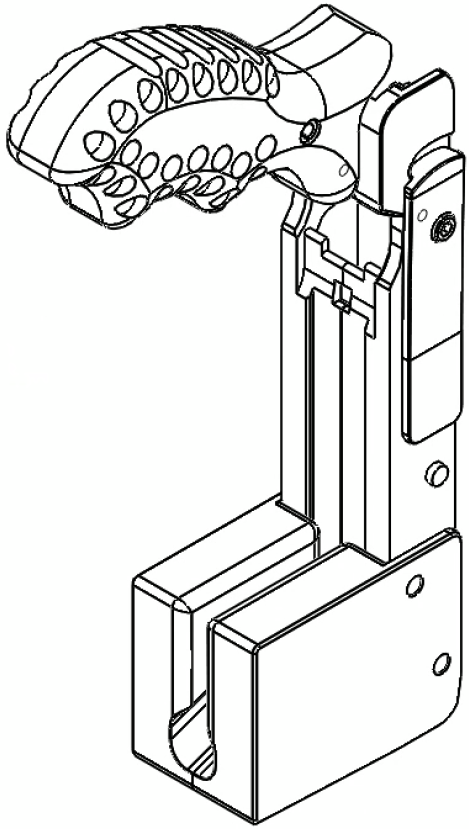

1 Rope Guide channel assembly Part # EGSK-013 |
|
-
Welder, TIG preferred (for Shaft Grounding Assembly only)
-
1/2 in hex wrench socket
-
9/16 in socket wrench
-
1/4 in hex key wrench
-
3/16 in hex key wrench
-
Drill
-
5/16 in-18 tap
-
Letter F drill bit
-
Wire cutters
-
Wire strippers
-
Wire crimpers
-
Tape, banding, and/or clamps (for Shaft Grounding Assembly only)
