This section provides the technical specifications for the EMI Monitoring installation.
|

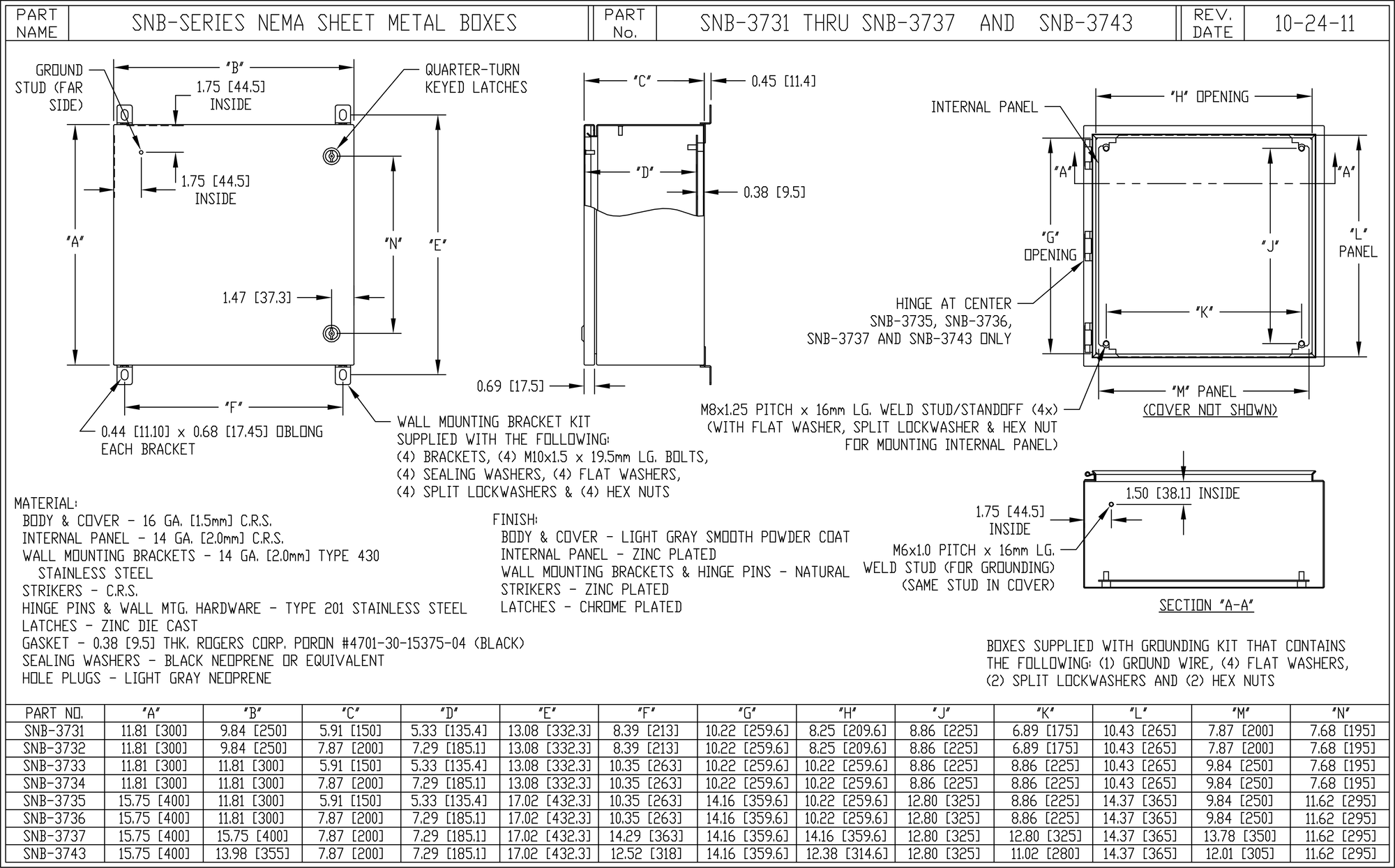

Catalog Number |
A |
B |
C |
Steel Type |
Door/Body Gauge |
Latch Qty |
|---|---|---|---|---|---|---|
|
SNB-3734 |
11.81 in (300 mm) |
11.81 in (300 mm) |
7.87 in (200 mm) |
Painted Steel, Cold Rolled |
16 |
1 |
Specifications:
|
|
|

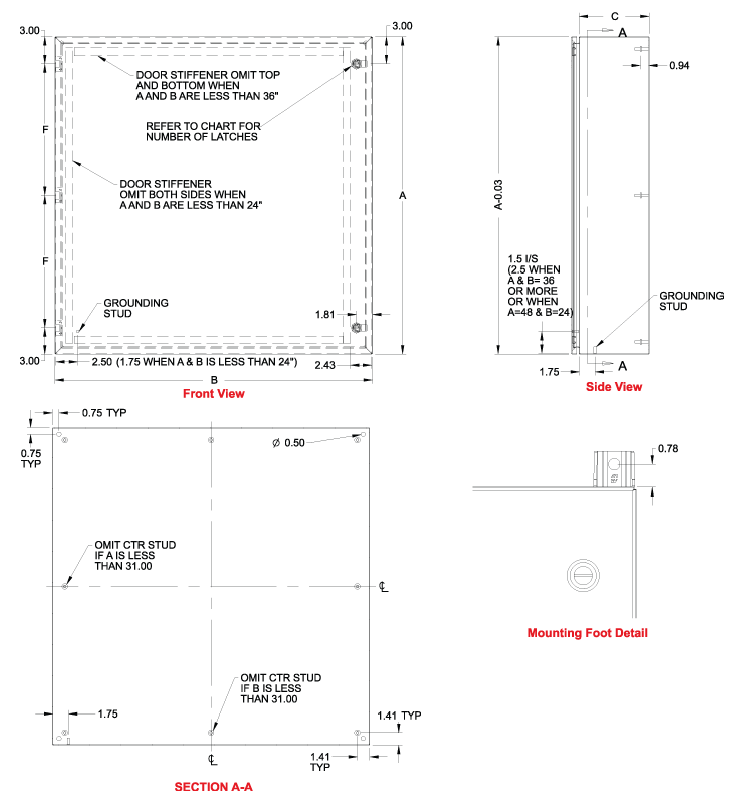

Catalog Number |
A |
B |
C |
Steel Type |
Door/Body Gauge |
Latch Qty |
|---|---|---|---|---|---|---|
|
EN4SD12126S16 |
12.0 in (305 mm) |
12.0 in (305 mm) |
6.00 in (152 mm) |
316 Stainless |
16 |
1 |
Specifications:
|
|
|
Catalog Number |
Dimensions (in. (mm)) |
|---|---|
|
CSD16168SS6-MODS |
16.0 (406) x 16.0 (406) x 8.0 (203) |
Specifications:
|
|
EXMC-002: Optional sunshield for outdoor installations
|
Catalog Number |
A in (mm) |
B in (mm) |
C in (mm) |
D in (mm) |
E in (mm) |
F in (mm) |
|---|---|---|---|---|---|---|
|
SNB-3740-SS |
9.84 (250) |
9.84 (250) |
5.91 (150) |
5.33 (135) |
11.12 (282) |
8.39 (213) |
Specifications:
|
|
Table 1. EU Directive Information – CE Compliance
|
Electro Magnetic Compatibility (EMC) Directive 2014/30/EU |
EN 61326-1:2013 |
|
Low Voltage Directive (LVD) 2014/35/EU |
IEC 61010-1: 2010; EN 61010-1-2010 |
|
RoHS Directive 2011/65/EU |
Large Scale Fixed Installation Exclusion |
Table 2. North America
|
Electro Magnetic Compatibility (EMC) |
Conforms to FCC 47CFR 15: 2022, Certified to CSA Std. ICES-001 2020 |
|
Safety |
Conforms to UL 61010-1: 2012 Ed.3+R: 19-Jul-2019, Certified to CSA C22.2 61010-1: 2012 Ed. 3+U1;U2; A1 |
Table 3. UK Conformity Assessed (UKCA)
|
Electro Magnetic Compatibility (EMC) 2016 |
EN 61326-1:2013 |
|
Electrical Equipment (Safety) Regulations 2016 |
EN 61010-1-2010 |
|
Regulations: Restriction of Hazardous Substances (RoHS) |
Large Scale Fixed Installation Exclusion |
WEEE Directive Statement
Marking for the Waste of Electrical and Electronic Equipment in accordance with Article II of Directive 2012/19/EU (WEEE). The European Directive 2012/19/EU requires marking:
-
That applies to electrical and electronic equipment falling under Annex 1, Category 9 of Directive 2012/19/EU.
-
That serves to clearly identify the producer of the equipment and that the equipment has been put on the market after 13 August 2005.
-
That the crossed out wheeled bin alerts the end user to dispose of this equipment via the special recycling procedure for electrical and electronic equipment that is applicable in the country of use.
-
The shown marking is attached to the product and identifies the product to fall within the scope of this directive.
|
Storage Temperature |
–40°C to 85°C (–40°F to 185°F) |
|
Operating Temperature |
–20°C to 60°C (–4°F to 140°F) |
|
Storage Humidity |
5% RH to 95% RH, non-condensing |
|
Operating Humidity |
10% RH to 90% RH, noncondensing |
|
Maximum Altitude |
2,000 m (6,560 ft) |
|
Installation Location |
For either indoor or outdoor installations |
|
Overvoltage Category |
II |
|
Pollution Degree |
2 |
|
Plant-supplied power source |
120 V, 60 Hz AC or 240 V, 50 Hz |
|
Circuit breaker |
Internal 120 V, 5 A |
|
Circuit draw under normal usage |
Approximately 0.6 A |
|
Input Voltage Range |
85 - 264 VAC |
|
Input Frequency Range |
47 – 63 Hz |
|
Input Power Rating |
150 W |
|
Over Voltage Category |
III ; According to EN62368, EN61558, EN50178, EN60664-1, EN62477-1 |
|
Input Wire Connection Type |
DIN, Screw-Down Terminal Block |
|
Input Wire Size |
26 - 10 AWG |
This product meets the requirements of the following EMC standards for electrical equipment for measurement, control, and laboratory use:
|
EN 61326 (IEC 61326) |
Class A emissions; Basic immunity |
|
EN 55011 (CISPR 11) |
Group 1, Class A emissions |
|
AS/NZS CISPR 11 |
Group 1, Class A emissions |
|
FCC 47 CFR Part 15B |
Class A emissions |
|
ICES-001 |
Class A emissions |
|
CE Compliance |
Meets the essential requirements of applicable European Directives, as amended for CE marking, as follows: 2006/95/EC, Low-Voltage Directive (safety); 2004/108/EC, Electromagnetic Compatibility Directive (EMC) |
The Cutsforth EMI Monitoring System is designed to be integrated into InsightCMTM software. For more information on InsightCMTM, including specific server requirements, visit the InsightCMTM README on the Cutsforth Support webpage at https://support.cutsforth.com.
Ensure the plant's InsightCMTM server is set up and ready for communication to field equipment in advance of system commissioning by Cutsforth.
