Equipment Layout

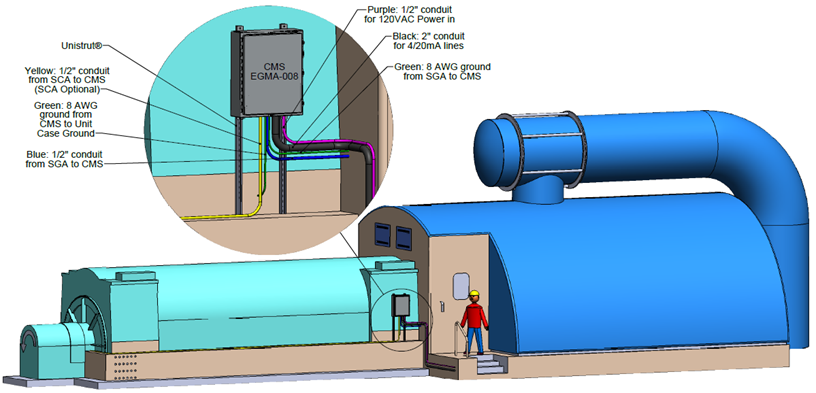

The diagram below represents a typical layout. Individual installations may vary.

2040_C_6_1.svg

Conduit Layout

Color on Diagram

Conduit Run Description

Conduit Trade Size

Wire Qty

Wire Description

Purpose

Wire Supplied By

Blue

SGA to monitoring system

1/2”

1

3 conductors, shielded, 18 AWG, high temp

2 rope wear status, 1 shaft voltage

Cutsforth

Green

SGA to monitoring system

1/2"

1

Single conductor, 8 AWG

Ground from SGA to monitoring system

Cutsforth

Green

Monitoring system to unit case ground

N/A

1

Single conductor, 8 AWG

Ground from monitoring system to unit case ground

Cutsforth

Purple

Plant 120VAC Power to monitoring system

3/4”

1

120VAC Power (20A dedicated circuit, preferably with isolated ground)

Power for the monitoring system

Plant

Black

Plant DCS Drop to monitoring system

2"

7

4/20mA DCS signal lines

Monitoring output to plant’s DCS system

Plant

Yellow*

SCA to monitoring system

1/2"

1

3 conductors, shielded, 18 AWG, high temp

1 rope wear status, 1 shaft voltage, 1 unused

Cutsforth

*Applies only when optional SCA is being installed

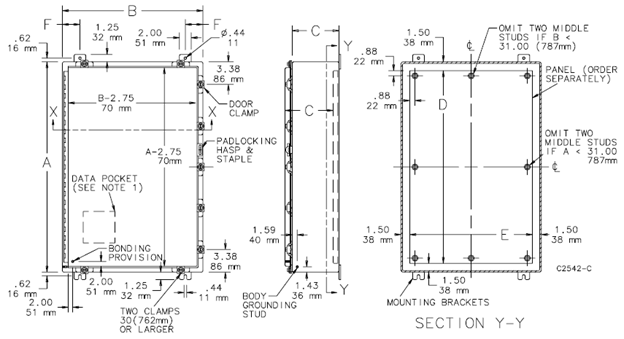

NEMA 4X Enclosure Specifications

Catalog Number

AxBxC (in.)

Stainless Steel Type

Panel Size DxE (in.)

F (in.)

Clamps Qty.

A24H2006SSLP

24.00 x 20.00 x 6.00

304

21.00 x 17.00

3.00

5
