The following settings can be changed in the Configuration window:
-
Brush Alert Length
Note
At this level the location background color will change to pink.
-
Displacement Fault Maximum
Note
At this level the displacement background color will change to orange.
-
Temperature Fault Maximum
Note
At this level the temperature background color will change to orange.
To configure the Brush Condition Monitoring System settings:
-

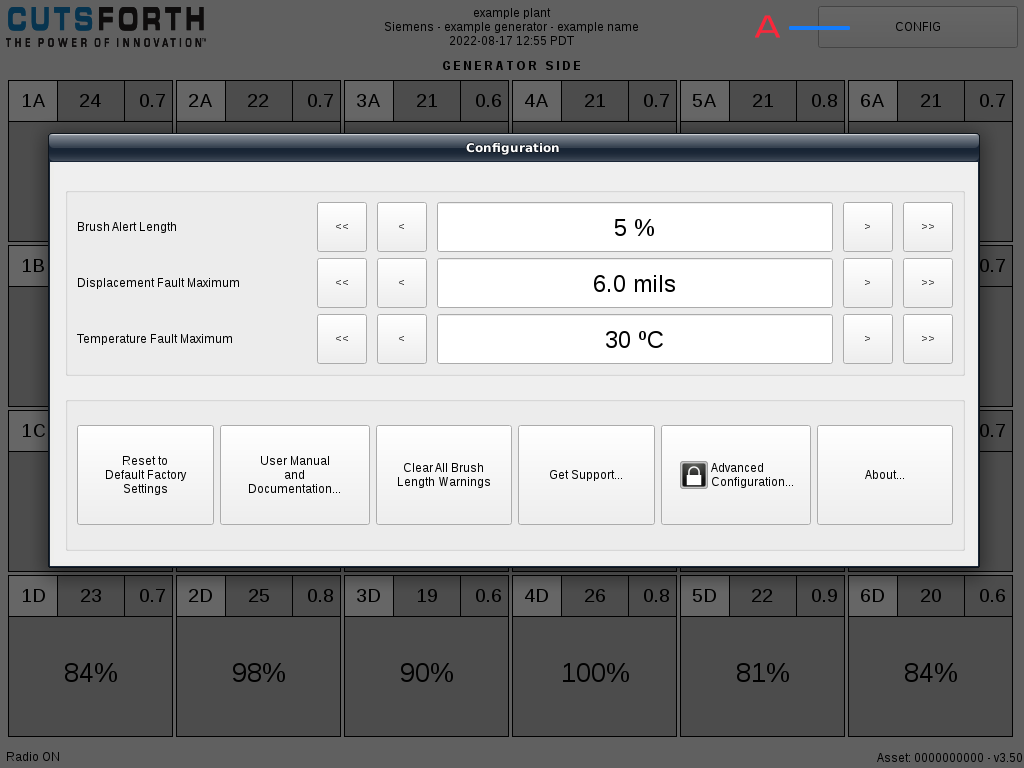

Press Config (A) to open the Configuration window.
-

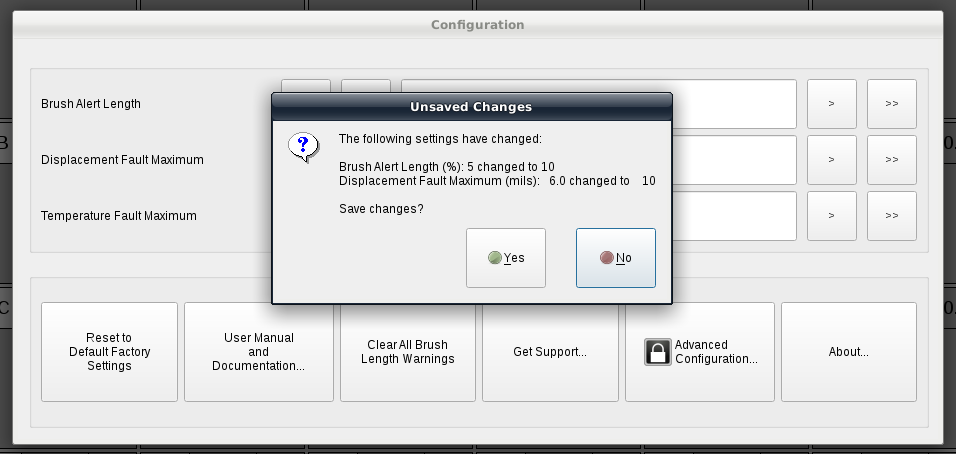

Click anywhere on the shaded area outside of the Configuration window to close it. If any settings have changed, a Save changes dialog appears.
