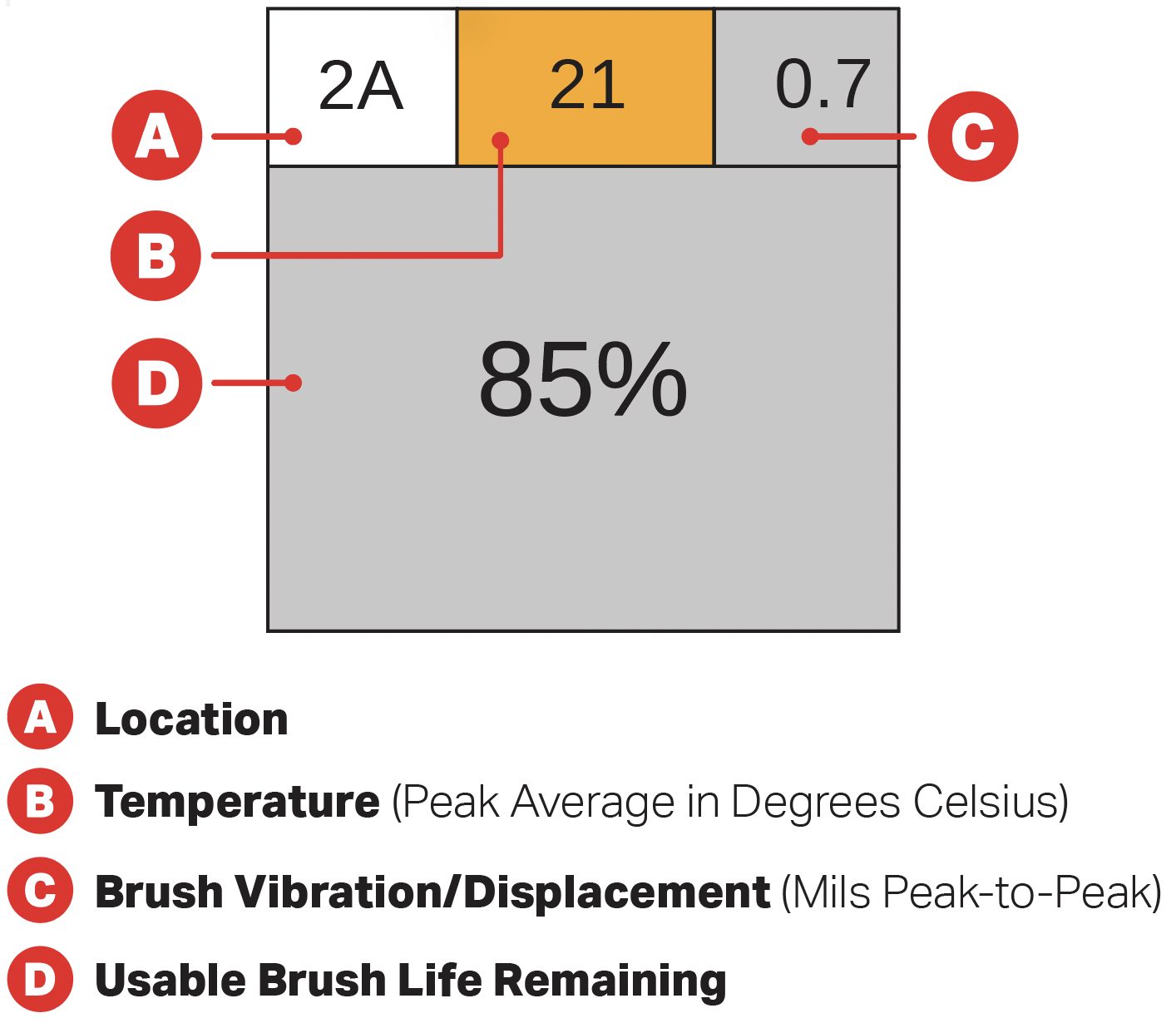

The individual brush status indicators provide the following information:
The background color of the brush status indicator area changes depending on the remaining brush length:
-
Red indicates the remaining brush length is less than or equal to 0%
-
Pink indicates that the remaining brush length is less than or equal to the threshold set in the Configuration window
The background color of the displacement or temperature areas will be orange if the brush displacement or temperature value is greater than or equal to the associated threshold set in the Configuration window.

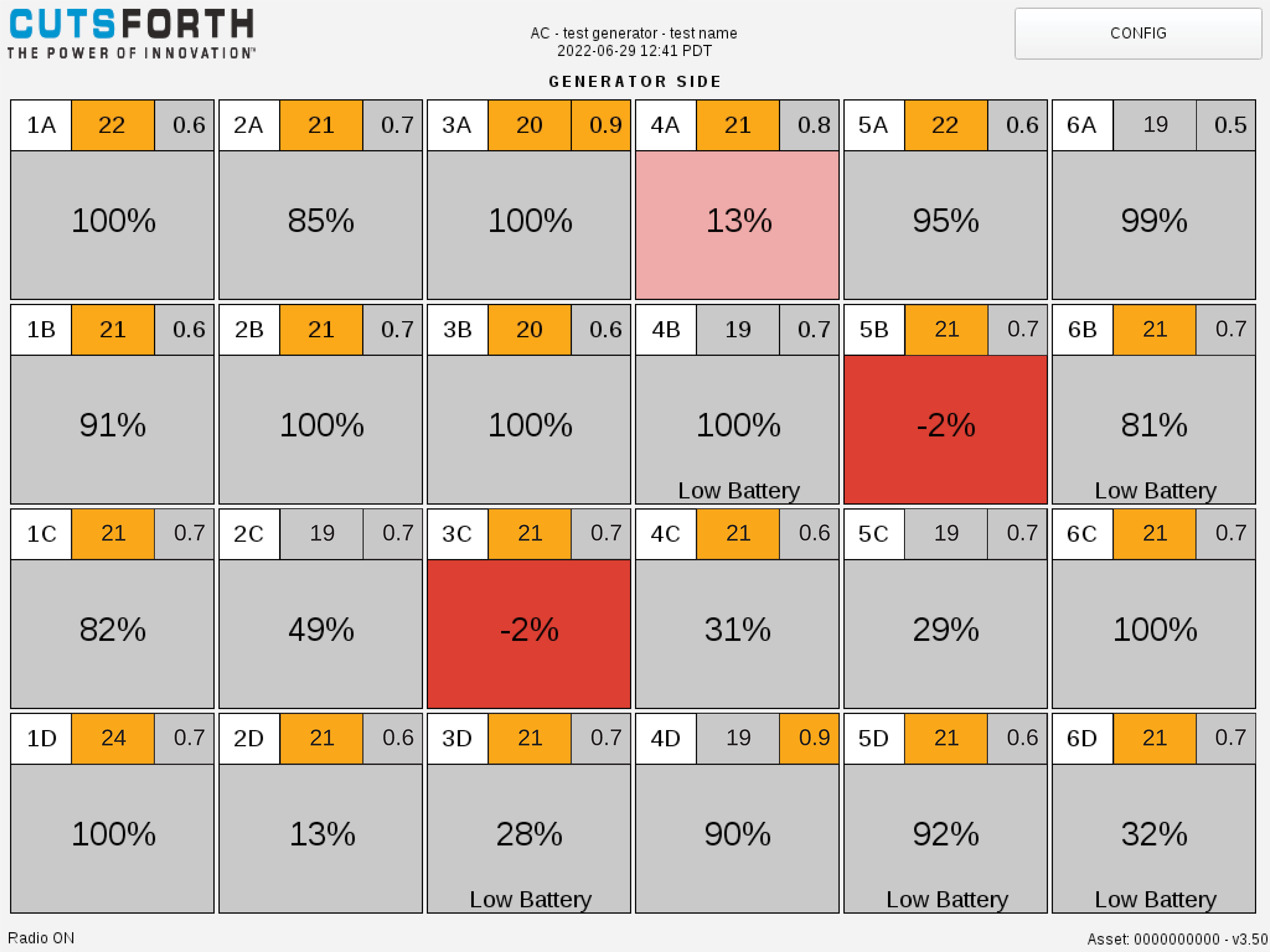

This figure shows possible background colors for different areas of the brush status indicator:
