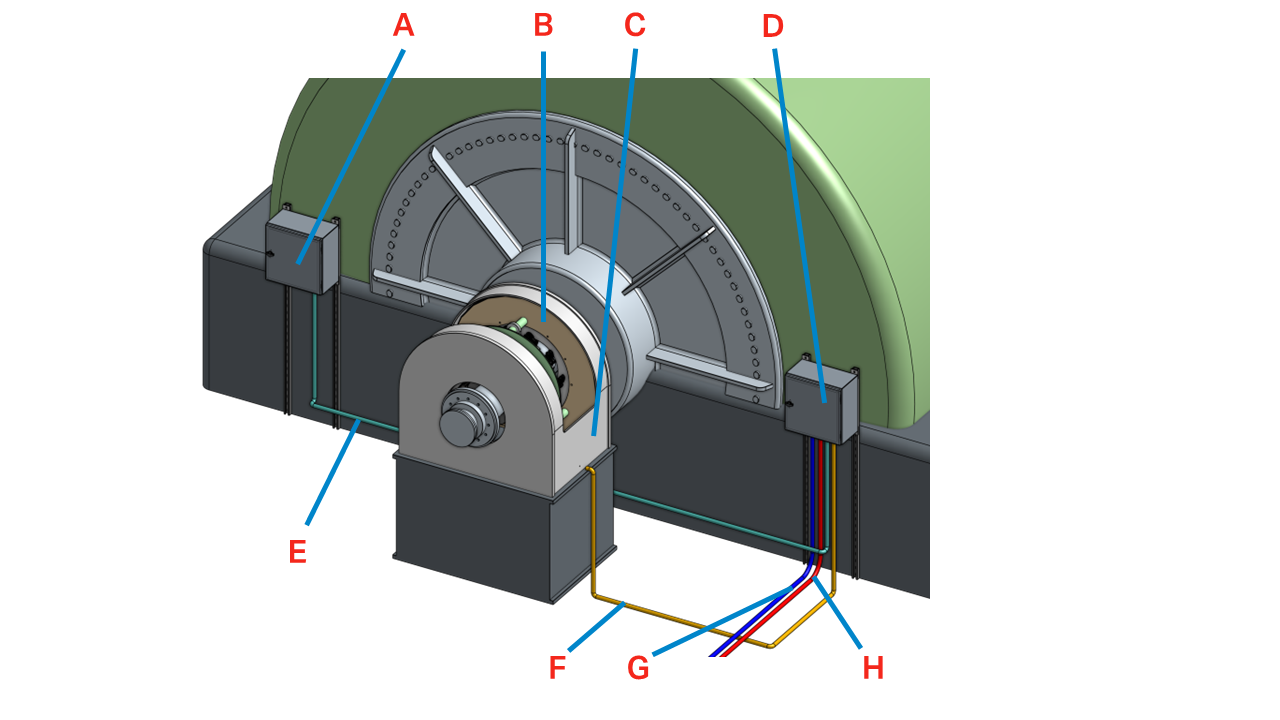

Conduit Layout

Color on Diagram (see below)

Conduit Run Description

Conduit Trade Size

Max Run Length

Wire Description

Purpose

Wire Supplied by

Conduit Supplied by

Gray

Plant 120VAC Power to BCM

3/4 in

(2 cm)

N/A

AC 85-264 V AC, 47-440 Hz, 10 W20 A Circuit

Power for the Monitoring System

Plant Electrical Contractor

Plant Electrical Contractor

Yellow

Primary Controller to Exciter Housing

1/2 in

(1.27 cm)

18ft

(5.5 m)

LMR-240 Coax with SMA ends

Brush Health Sensor antenna signal cable

Cutsforth

Plant Electrical Contractor

Blue*

Primary Controller to Auxiliary Enclosure

3/4 in

(2 cm)

25 ft

(7.6 m)

Shielded 2-conductor; Two CAT5e ethernet cables

Aux display power, video, and touch signals

Cutsforth

Plant Electrical Contractor

*Only applies when optional Auxiliary Display is being installed.

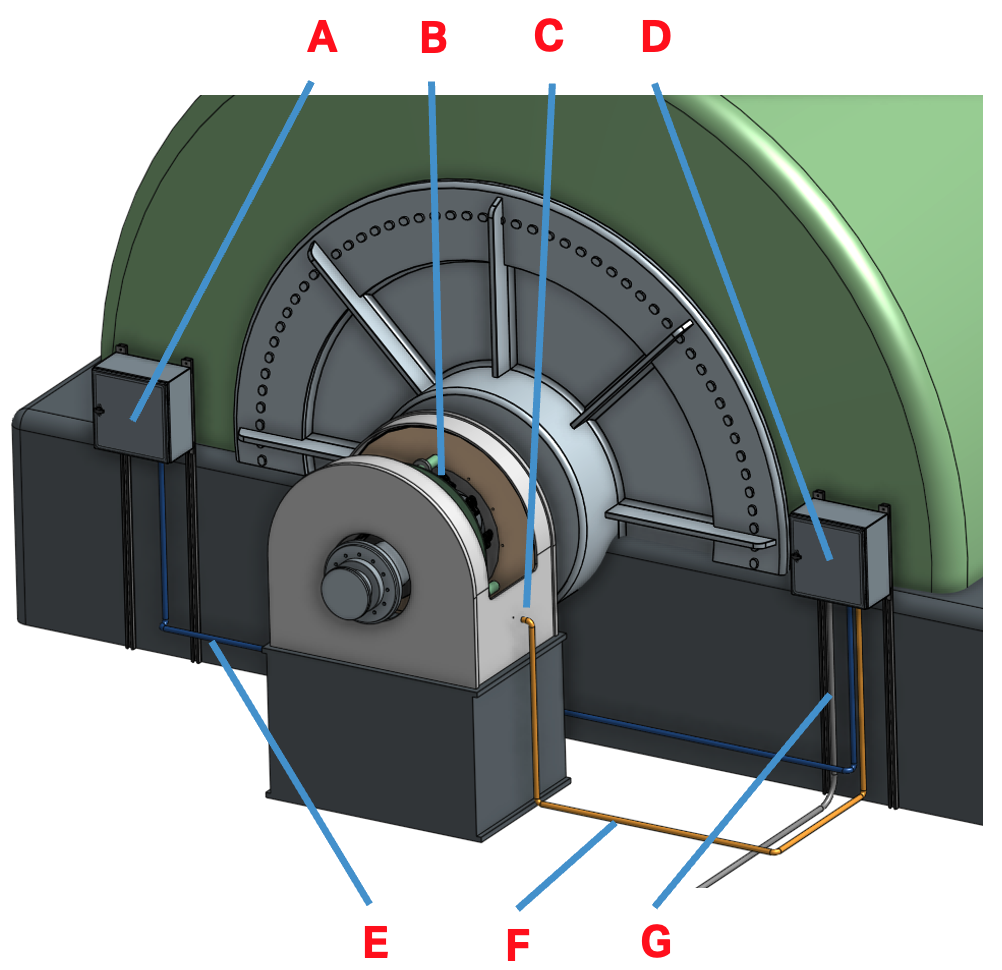

Part

Name

A

(Optional) Brush Condition Monitoring Auxiliary Display

B

EASYchange® Brush Holders and Brush Health Sensors

C

Antenna (inside exciter housing)

D

Brush Condition Monitoring Primary Controller

E

(Optional) Blue: 3/4 in. (2 cm) Conduit from Primary Controller to Auxiliary Display

F

Yellow: 1/2 in. (1.27 cm) Conduit from Primary Controller to Exciter Housing

G

Gray: 3/4 in. (2 cm) Conduit from Plant Power Supply to Primary Controller

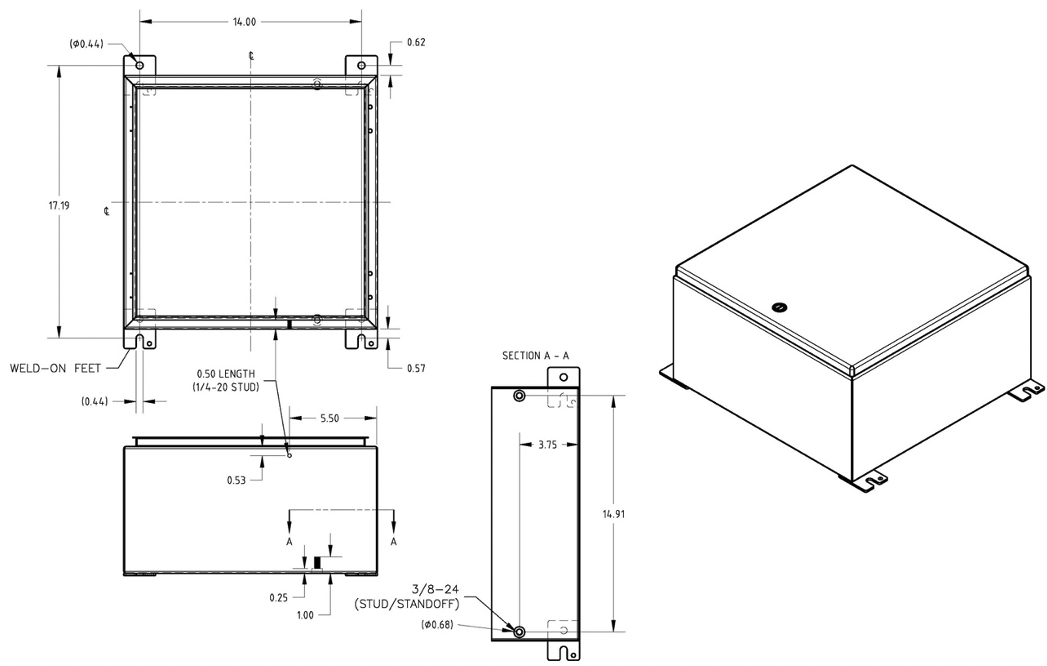

Enclosure Specifications

Catalog Number

Dimensions [in (mm)]

Stainless Steel Type

CSD16168SS6-MODS-A

16.0 (406) x 16.0 (406) x 8.0 (203)

316


UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997

cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997

NEMA/EEMAC Type 3R, 4, 4X, 12, 13

CSA File No. 42186: Type 4, 4X, 12

VDE IP66 IEC 60529, IP66

Meets NEMA Type 3RX requirements

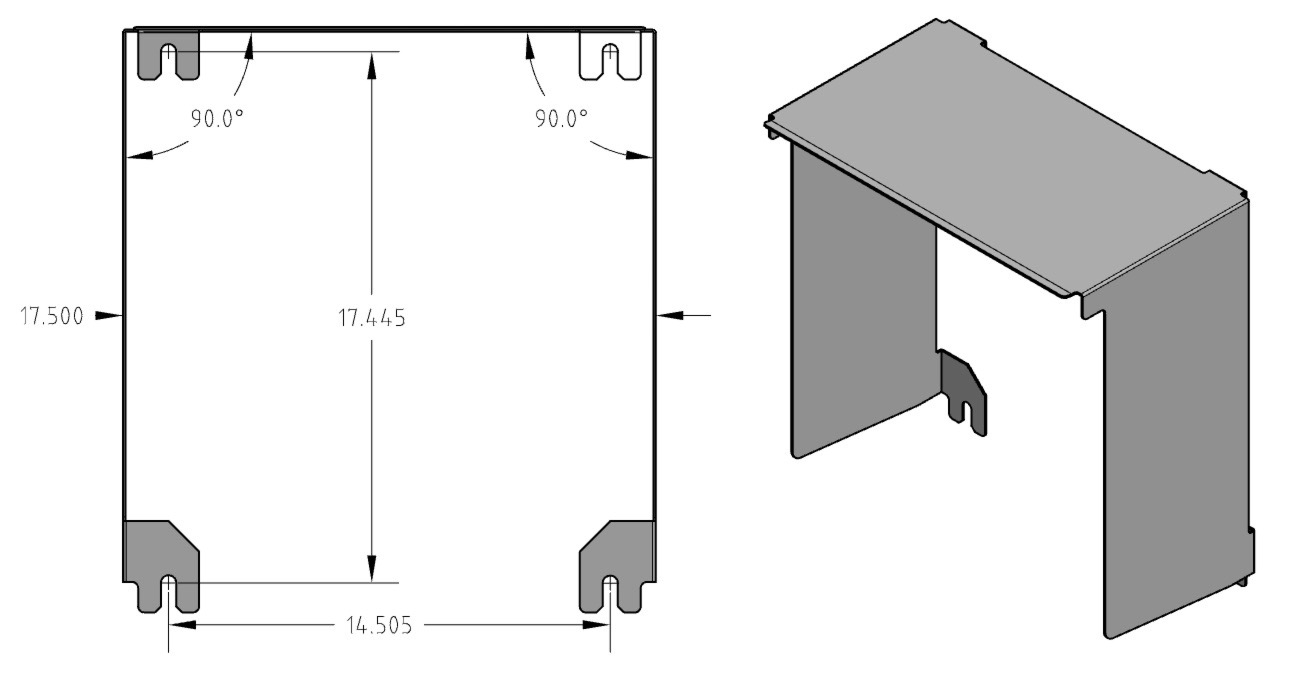

EXMC-002: Optional sunshield for outdoor installations.
