Complete the steps in these sections to install the brushes:

Installing Adapters on the Yokes

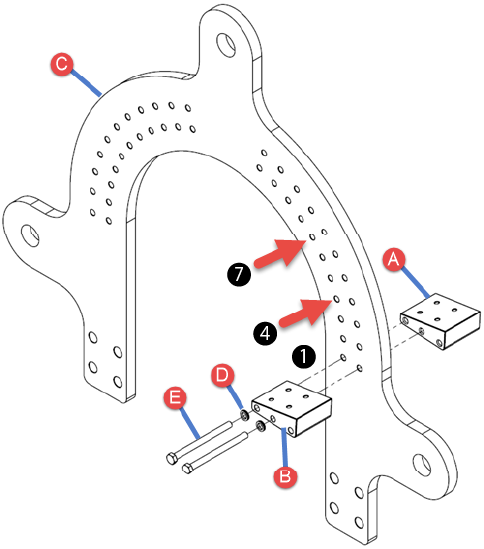

  1. Align the first two adapters, one with cross hole threads circle-a.png and one without circle-b.png, with the holes on each side of the yoke circle-c.png. Align the adapters with the mount side facing the center of the yoke.

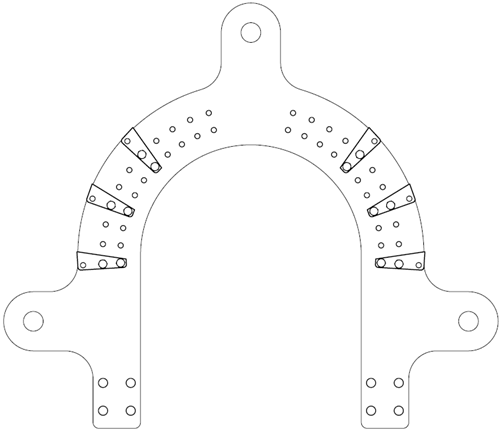

  2. Install the adapters at the first 1.png, fourth 4.png and seventh 7.png set of holes starting from the outside of the yoke.

  3. Secure the adapters using NL8 Nordlock washers circle-d.png and 5/16-18 x 4 in bolts circle-e.png.

    Torque to 220-240 in lbs (25-27.5 Nm).

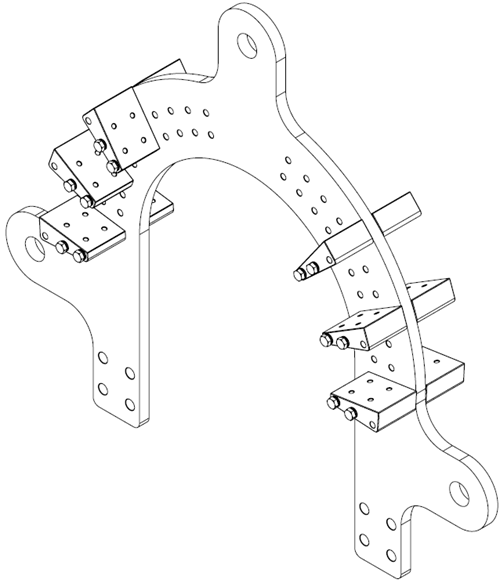

  4. Repeat steps 1 through 3 for the next four adapters on the same side of the yoke.

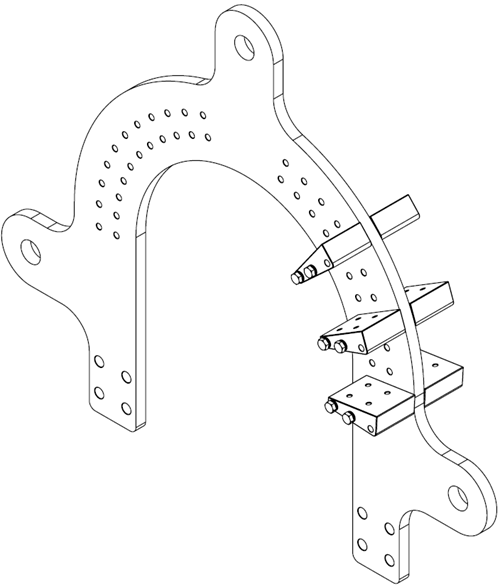

  5. On the opposite side of the yoke, align and attach the adapters facing the opposite direction of the first three adapter pairs.

  6. Repeat steps 1 through 5 for the second yoke.

Installing the Holder Mounts

This section explains how to install the holder mounts using the height setter.  The height setter verifies that the holder mount and the brush holders are at the correct distance from the collector ring.

Complete the steps in these sections to install the holder mounts:

Install a Holder Mount Using the Height Setter

  1. While holding the trigger (A) in its disengaged position, slide the height setter (B) onto the holder mount (C) until the guide boss (D) is bottomed out in the guide slot (E).

    1008_6-2-1-A-01.svg
  2. With the height setter positioned all the way down, release the trigger (A) and allow it to move to the engaged position (F).

    1008_6-2-2-D.svg
  3. Ensure the height setter with holder mount (B) is on the mount side of the adapter (G). Place the height setter with holder mount against one of the adapters on the yoke (H). Position so that the height setter rests against the collector ring (I) until both height setter ribs (J) contact the collector ring.

    The adapter may need a rotational adjustment. To maximize ring coverage, use the alternate mounting positions on the adapters as needed.

    1008_6-2-2-B.svg
  4. Using a 5/32 in Allen wrench, fasten the 1/4-28 button head cap screws (K) and NL6 Nordlock washers (L) to 110-120 in lbs (12-13.5 Nm) of torque.

    1008_6-2-2-C-01.svg

Center the Brush Installation Area and Remove the Height Setter

  1. Use the height setter to check that the brush will be properly centered on the ring when the brush holder is installed. Measure the position of the height setter and compare to the position of the original brush.

    If necessary, insert or remove washers by the spacers so that the brush holder is properly centered.

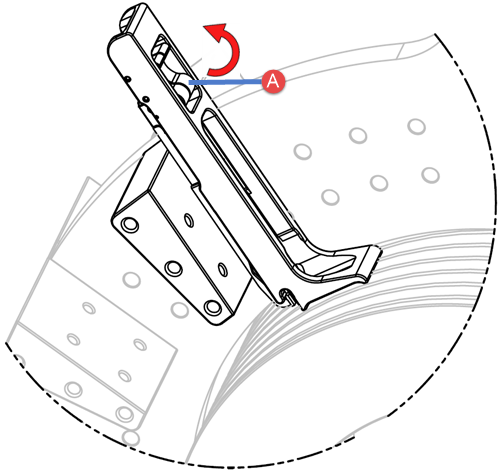

  2. Pull the trigger circle-a.png back to the disengaged position.

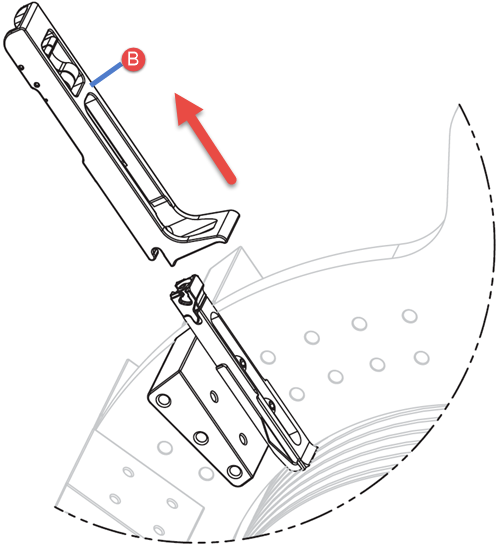

  3. Remove the height setter circle-b.png from the holder mount.


Install the Remaining Holder Mounts

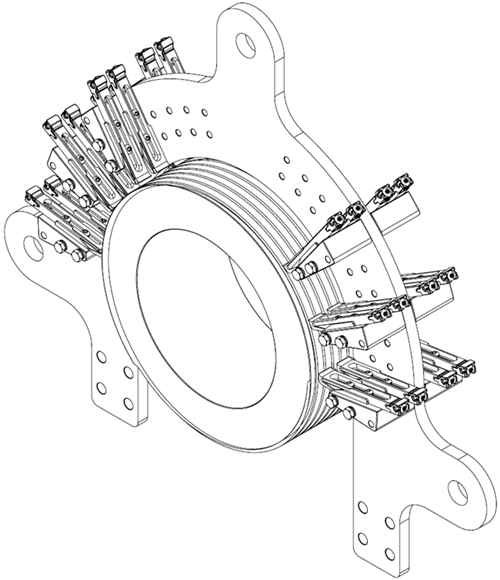

  1. Repeat the steps in the previous sections of this article for any remaining holder mounts.

  2. Torque the 5/16 in adapter bolts to 220-240 in lbs (25-27.5 Nm).

  3. If the yoke stud nuts are loose, tighten and torque the nuts to the manufacturer’s recommended torque value.

Installing the Brushes into the Brush Holders

Complete the steps in these sections to install the brushes into the brush holders.

Install a Brush Spring

  1. Insert a brush spring (A) onto the spring rib (B).

  2. Push until the spring hole (C) snaps onto the spring pin (D).

    1008_5-5-1-A.svg

Install a Brush

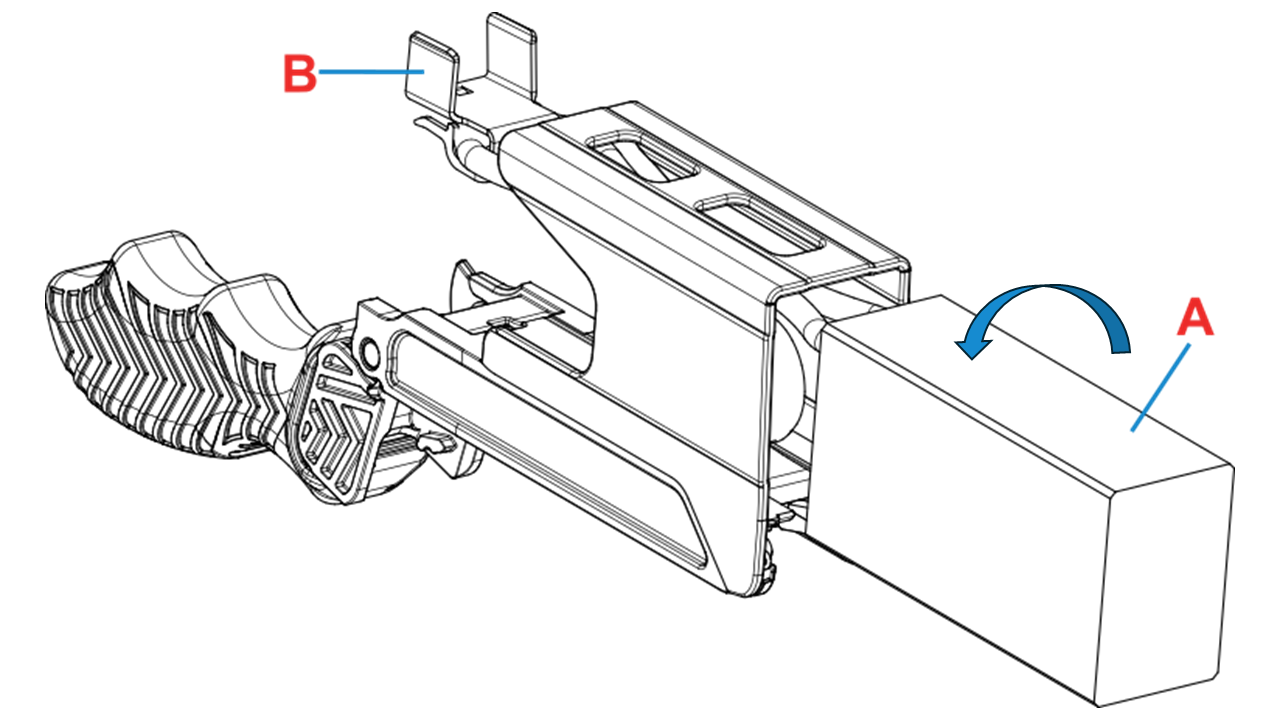

  1. Rotate the brush (A) so the terminal ears (B) point down.

    1008_5-5-2-A.svg
  2. Insert the brush (A) into the holder (C) until the terminal ears (B) pass the brush spring.

    1008_5-5-2-B.svg
  3. Rotate the brush (A) so the terminal ears (B) point up and start to insert the brush into the holder.

    1008_5-5-2-C.svg

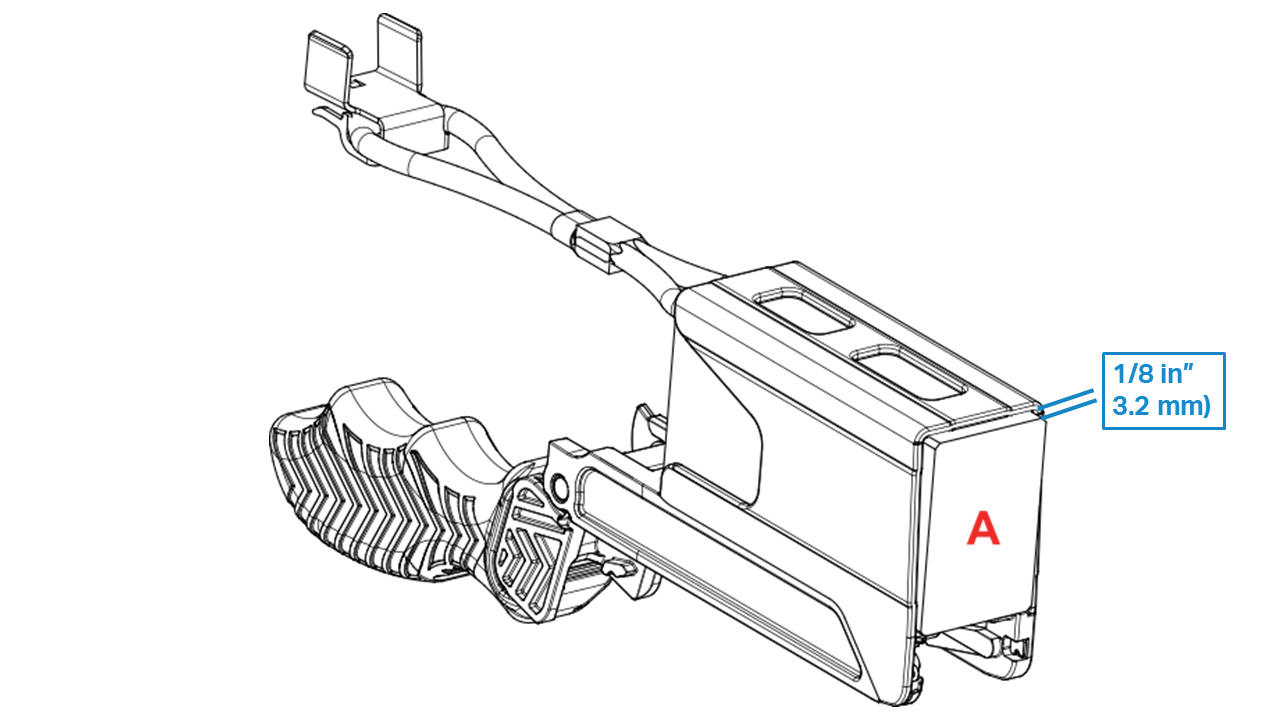

  4. Insert the brush the rest of the way into the holder until approximately 1/8 in (3.2 mm) extends out of the brush box, (A) .

    1008_5-5-2-D.svg
  5. Insert the brush terminal (D) onto the terminal mount rib (E).

    1008_5-5-2-E.svg

Position the Brush Shunts

  • To prevent brush binding, lead damage, and interference with the handle (A), position the brush leads (B) as shown:

    1008_5-5-3-A.svg

    Review these correct/incorrect examples for additional clarification:

    Correct

    Incorrect

    In this correct example the brush shunts are formed straight up so that they will not catch on the box.

    1008_5-5-3-B.svg

    Do not position the brush leads as this example shows. In this position the leads will restrict free movement of the brush (hang up).

    1008_5-5-3-C.svg

Install a Brush Holder

  1. Align the brush holder (A) with the grooves on the side of the holder mount (B) and slide into the holder mount.

    1008_5-6-1-1-A.svg

    These example images provide additional clarification:

    1008_5-6-1-1-B.svg
  2. Rotate and lock the handle (C) into place while applying light pressure toward the collector ring (D).

    1008_5-6-1-1-C.svg
  3. Repeat the procedures in this article for the remaining springs, brushes, and brush holders.

Verify the Brush Holder Installation

This section provides visual examples of correctly and incorrectly installed brush holders.

Correctly Mounted Brush Holders

Correctly Aligned Insertion

Properly Engaged Terminal and Holder

1008_5-6-2-1-A.svg
1008_5-6-2-1-B.svg

Incorrectly Mounted Brush Holders

Misaligned Insertion

Brush Holder not Fully Engaged

Handle Engaged with Brush Holder Misaligned

1008_5-6-2-2-A.svg
1008_5-6-2-2-C.svg
