To install the Wireless Condition Monitoring system, you need the equipment listed below. Please review this list thoroughly, taking care to note who is responsible for supplying each piece of equipment.
|
Equipment |
Supplied by Cutsforth |
Supplied by Plant |
Supplied by Plant Electrical Contractor |
|---|---|---|---|
|
Wireless Gateway |
|
||
|
NEMA 4X rated gateway enclosure |
|
||
|
Wireless Sensor(s) |
|
||
|
Ethernet cable for connection from gateway to server |
|
||
|
600 volt rated power cable or Ethernet cable for PoE power |
|
||
|
Conduit |
|
This section provides step by step instructions for installing the Wireless Condition Monitoring system.
-
Mount the Wireless Condition Monitoring system enclosure containing the gateway at the planned location.
-
Install the wireless sensor(s) at desired location(s) on equipment to be monitored.
-
Install the conduit and run cable for AC or PoE power input to the gateway enclosure. Minimum circuit size if using AC: 20A circuit free of non-linear loads. Consider a circuit with isolated ground.
-
Install the conduit and run cable for data connection to the gateway enclosure. Cutsforth recommends Cat6a or fiber connection (media converter required if using fiber).
|

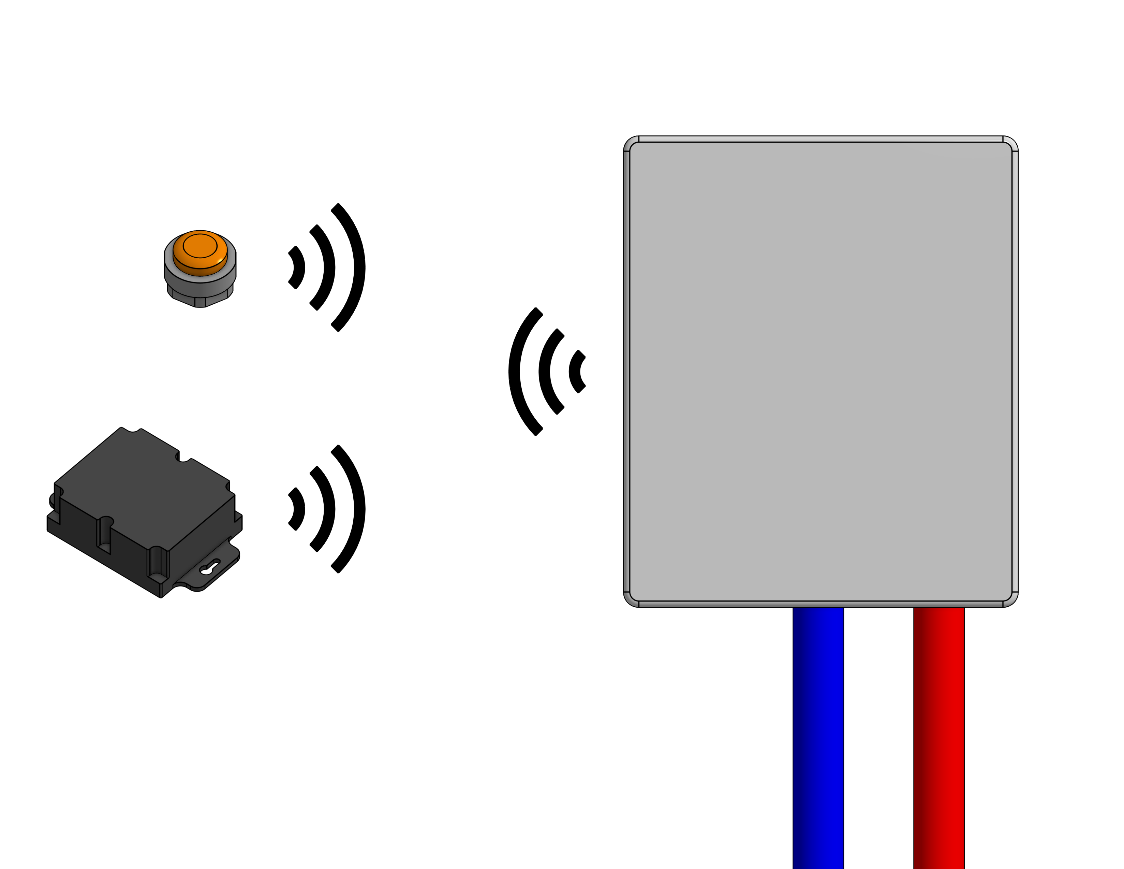

Color on Diagram |
Conduit Run Description |
Conduit Trade Size* |
Wire Description |
Purpose |
Max. Cable Length |
Wire Supplied By |
|---|---|---|---|---|---|---|
|
Blue |
Gateway Enclosure to InsightCM Server |
¾ in (2 cm) |
Cat6a or Fiber |
Data to InsightCM Server |
330 ft (100 m) |
Plant Electrical Contractor |
|
Red |
Plant Power to Monitoring Enclosure |
¾ in (2 cm) |
120VAC or PoE Power |
Power for the monitoring system |
N/A |
Plant Electrical Contractor |
*Enclosures do not come with conduit holes pre-drilled. Conduit sizing and hole placement is customizable.
Up to 250 wireless nodes can be connected to each wireless gateway, provided that the line-of-sight distance between all nodes and the gateway stays within the specified limitations.
|
Part |
Name |
|---|---|
|
A |
Erbessd wireless vibration sensor |
|
B |
Erbessd general wireless sensor module |
|
C |
Cutsforth Wireless Condition Monitoring System |
|
D |
Blue: Data Output to InsightCM Network |
|
E |
Red: Plant Power Input to Monitoring System Enclosure |
|

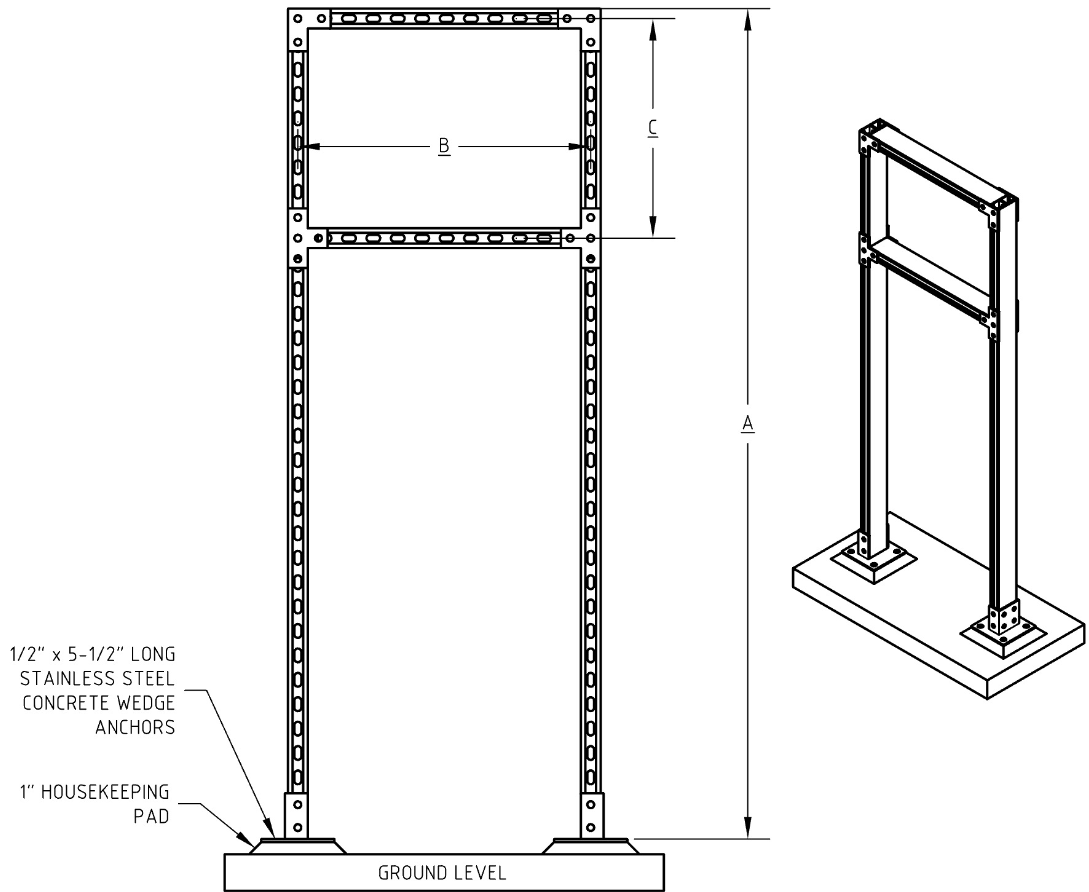

Component |
Standard Recommendation |
Recommendation for High-Corrosion Environments |
|---|---|---|
|
Conduit type |
Galvanized rigid metal conduit (RMC) |
Rigid Aluminum Conduit (RAC) |
|
Conduit fittings type |
Malleable, NEMA 4X rated or greater |
Aluminum |
|
Strut channel type |
Hot dipped galvanized, back-to-back |
316 Stainless steel |
|
Mounting hardware |
316 Stainless steel |
316 Stainless steel |
|
Liquid flexible metallic conduit |
Type HCX |
Type HCX |
|
Plant-supplied power source |
120 V, 60 Hz or 240 V, 50 Hz |
|
Circuit breaker |
Internal 120 V, 5 A |
|
Maximum power consumption |
10 W |
|
Catalog Number |
Dimensions (in. (mm)) |
|---|---|
|
NF100806-DIN |
10 x 8 x 6 (254 x 203.2 x 152.4) |

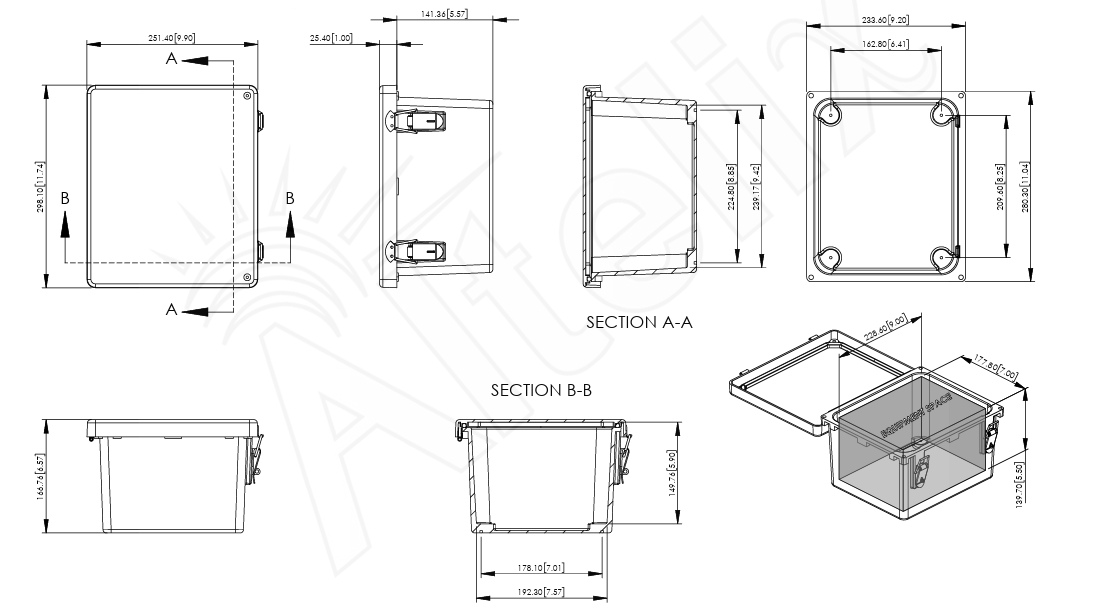

Specifications:
-
UL 508A Listed Type 1, 2, 4, 4X, 12, and 13 File No.
-
IP Rating: IP65 and IP66
-
Fiberglass Reinforced Polyester (FRP) enclosure
-
Weatherproof, UV stable, and highly corrosion resistant
-
Stainless steel quick-release latches with padlock hasps
|
Storage |
100,000 recordings (embedded) |
|
Wireless Nodes Supported |
Up to 250 |
|
Wireless Protocol |
Bluetooth BLE 5.0 @ 2.4 GHz |
|
Operating Temperature |
-7˚C to 60˚C (20˚F to 140˚F) |
|
Protection Rating |
IP54 |
|
Wireless Range |
100 m (Line of sight with no competing signals) |
|
Frequency Range |
0.5 Hz – 10 kHz (x,y), 0.5 Hz – 5.1 kHz (z) |
|
Dynamic Range |
±8 / ±16 / ±32 g |
|
Sensitivity |
100 mV/g |
|
Data Receiving Interval |
As often as 1 min (configurable) |
|
Operating Temperature |
-40˚C to 80˚C (-40˚F to 176˚F) |
|
Protection Rating |
IP67 |
|
Wireless Protocol |
Bluetooth BLE 5.0 @ 2.4 GHz |
|
Wireless Range |
100 m (Line of sight with no competing signals) |
|
Power Supply |
CR2477 Coin Cell Battery (Replaceable) |
|
Battery Lifetime |
Up to 100,000 Measurements |
|
Thermocouple Type |
K |
|
Number of Input Channels |
4 |
|
Temperature Measurement Range |
-100˚C to 1250˚C (-212˚F to 2282˚F) |
|
Data Receiving Interval |
1 min to 120 min (configurable) |
|
Operating Temperature |
-40˚C to 80˚C (-40˚F to 176˚F) |
|
Protection Rating |
IP67 |
|
Wireless Protocol |
Bluetooth BLE 5.0 @ 2.4 GHz |
|
Wireless Range |
100 m (Line of sight with no competing signals) |
|
Power Supply |
5-24 VDC or 2x AA Batteries (Replaceable) |
|
Battery Lifetime |
12,000 Measurements |
|
IR Resolution |
32 x 24 pixels |
|
Max Distance to Object |
1 m |
|
Field of View |
110 deg x 75 deg |
|
Target Temperature Range |
-40˚C to 300˚C (-40˚F to 572˚F) |
|
Accuracy |
±1˚C (±1.8˚F) |
|
Data Receiving Interval |
5 min to 1440 min (configurable) |
|
Operating Temperature |
-40˚C to 75˚C (-40˚F to 167˚F) |
|
Protection Rating |
IP5X |
|
Wireless Range |
100 m (Line of sight with no competing signals) |
|
Power Supply |
5-24 VDC or 2x AA Batteries (Replaceable) |
|
Battery Lifetime |
12,000 Measurements |
|
Sensor Type |
Hall Effect Sensor |
|
Switching Speed |
600 kRPM |
|
Active Distance |
5 mm to 15 mm |
|
Data Receiving Interval |
1 min to 120 min (configurable) |
|
Operating Temperature |
-40˚C to 80˚C (-40˚F to 176˚F) |
|
Protection Rating |
IP67 |
|
Wireless Protocol |
Bluetooth BLE 5.0 @ 2.4 GHz |
|
Wireless Range |
100 m (Line of sight with no competing signals) |
|
Power Supply |
5-24 VDC or 2x AA Batteries (Replaceable) |
|
Battery Lifetime |
12,000 Measurements |
|
Input Range |
4-20 mA CC |
|
Number of Input Channels |
4 |
|
Data Receiving Interval |
5 min |
|
Operating Temperature |
-40˚C to 80˚C (-40˚F to 176˚F) |
|
Protection Rating |
IP67 |
|
Wireless Protocol |
Bluetooth BLE 5.0 @ 2.4 GHz |
|
Wireless Range |
100 m (Line of sight with no competing signals) |
|
Power Supply |
5-24 VDC or 2x AA Batteries (Replaceable) |
|
Battery Lifetime |
12,000 Measurements |
|
Input Range |
0-10 VDC |
|
Number of Input Channels |
4 |
|
Data Receiving Interval |
1 min to 120 min (configurable) |
|
Operating Temperature |
-40˚C to 80˚C (-40˚F to 176˚F) |
|
Protection Rating |
IP67 |
|
Wireless Protocol |
Bluetooth BLE 5.0 @ 2.4 GHz |
|
Wireless Range |
100 m (Line of sight with no competing signals) |
|
Power Supply |
5-24 VDC or 2x AA Batteries (Replaceable) |
|
Battery Lifetime |
12,000 Measurements |
|
Input Range |
Closed / Open Circuit |
|
Number of Input Channels |
4 |
|
Data Receiving Interval |
5 min |
|
Operating Temperature |
-40˚C to 80˚C (-40˚F to 176˚F) |
|
Protection Rating |
IP67 |
|
Wireless Protocol |
Bluetooth BLE 5.0 @ 2.4 GHz |
|
Wireless Range |
100 m (Line of sight with no competing signals) |
|
Power Supply |
5-24 VDC or 2x AA Batteries (Replaceable) |
|
Battery Lifetime |
12,000 Measurements |
The Cutsforth Wireless Condition Monitoring System is designed to be integrated into InsightCM software. For more information on InsightCM, including specific server requirements, visit the InsightCM README on the Cutsforth Support webpage at support.cutsforth.com.
The plant must provide a PC or Server for InsightCM meeting the requirements listed at the above link. Cutsforth is not responsible for the configuration of server-side deployment. Ensure the plant's InsightCM server is set up and ready for communication to field equipment in advance of system commissioning by Cutsforth.
