Vibration Route Data Collector

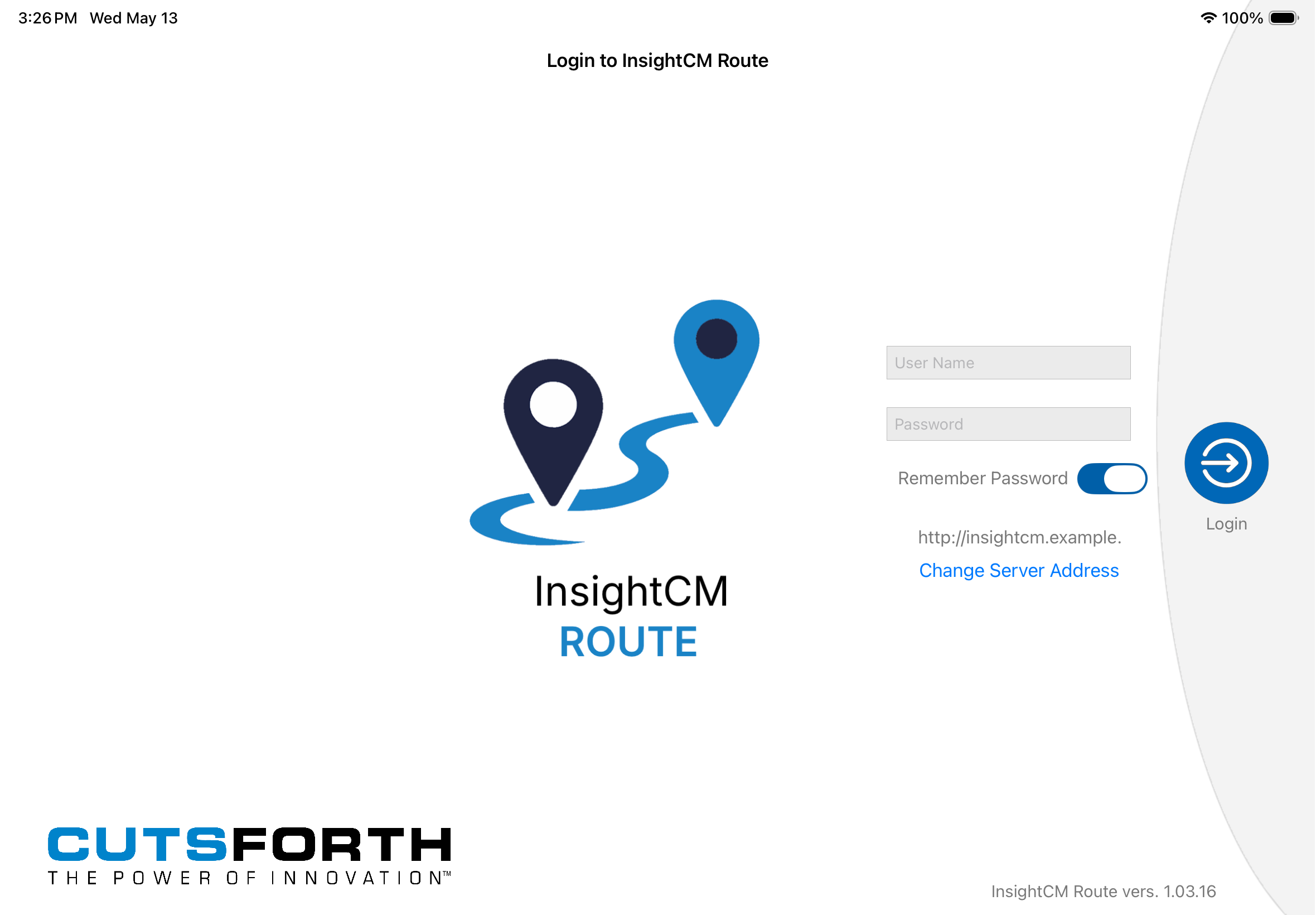

Open the InsightCM Route App, enter the InsightCM server address and login with your InsightCM credentials. Once you are logged in for the first time the credentials will be stored in the device if the "Remember Password" switch is set to ON. After this, you can log in with or without Internet connectivity.

Once a Route is created in the InsightCM it will be available to download in the tablet. Make sure the tablet is connected to the Internet for this process. Available routes in InsightCM will show on the left side of the screen.

Tap on a route to select it, on the right panel options the download button will be now enabled, as shown below. Click on the "InsightCM" button, the selected route will be downloaded in the device.

Once the route is downloaded it will appear on the right side of the screen be remain local in the device, during data collection Internet connectivity will not be required.

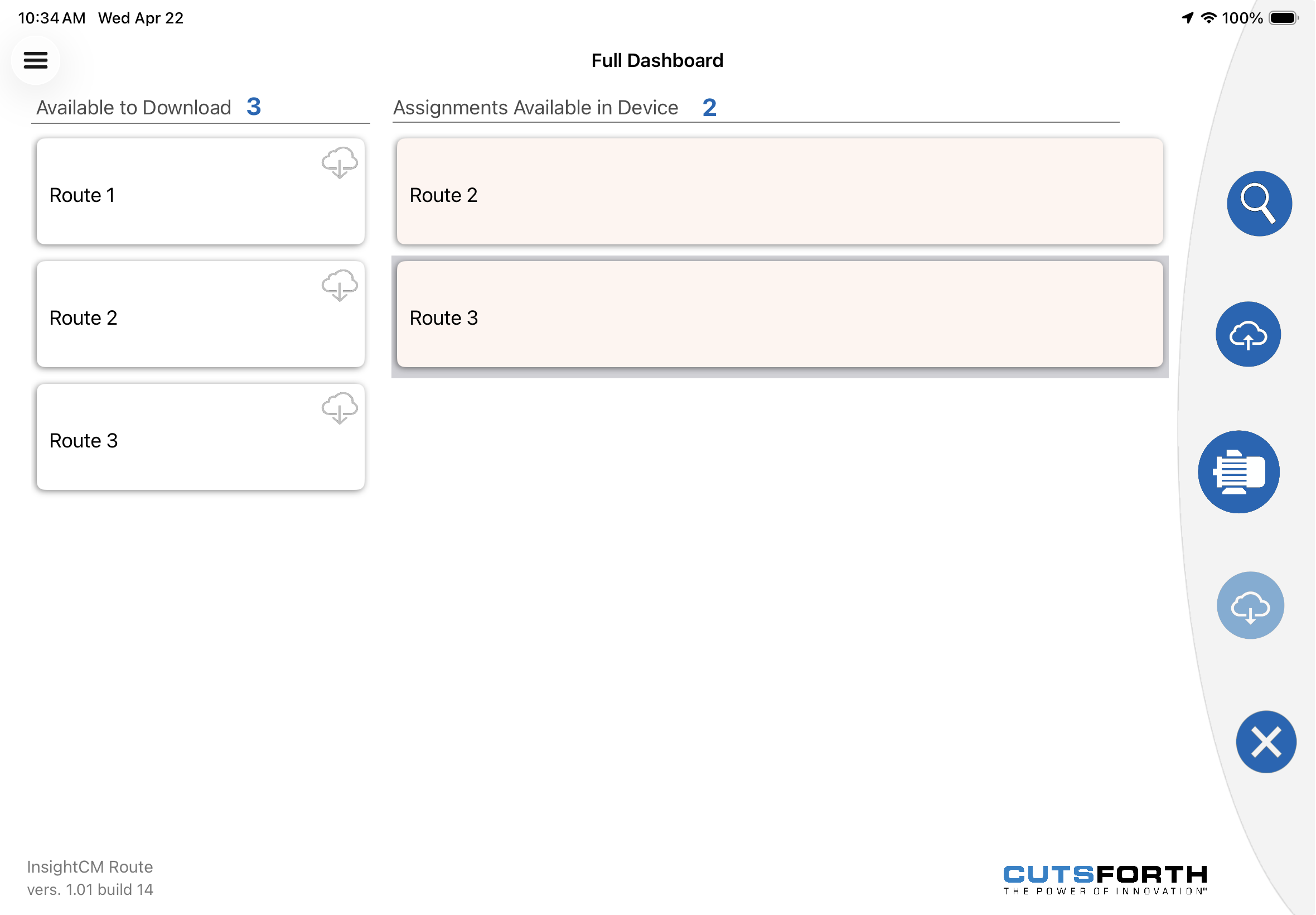

Tap on the downloaded routes to select one, the right panel buttons (view, upload, collect and remove) will be enabled

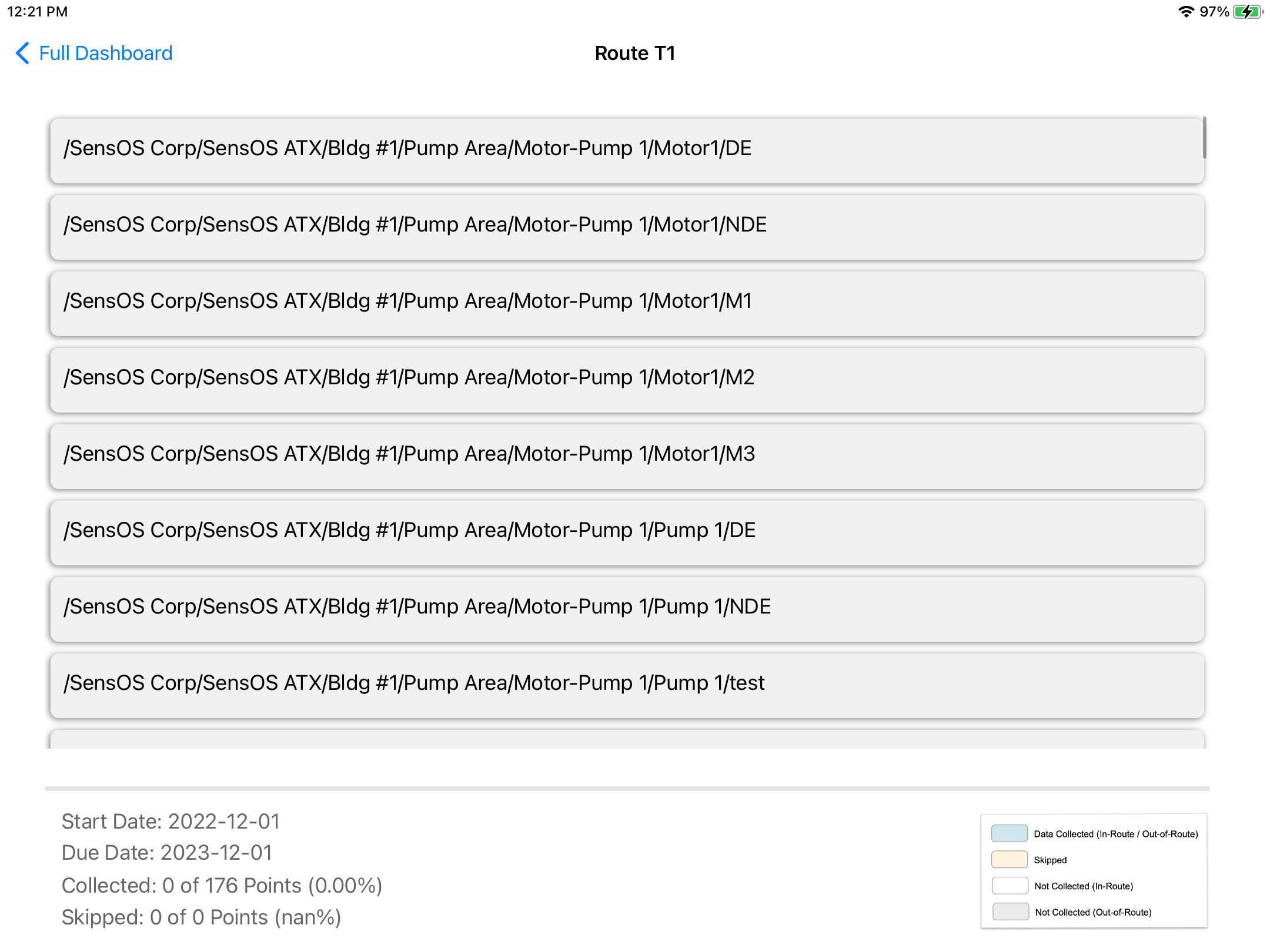

Pressing the View (magnifier icon) button in the right panel, will open a view showing all the points in the selected route. A white background cell means the point is in the route, gray background is for off-route points. The cyan background indicates the point is already measured/collected. The view will also show the total number of points and completion percentage.

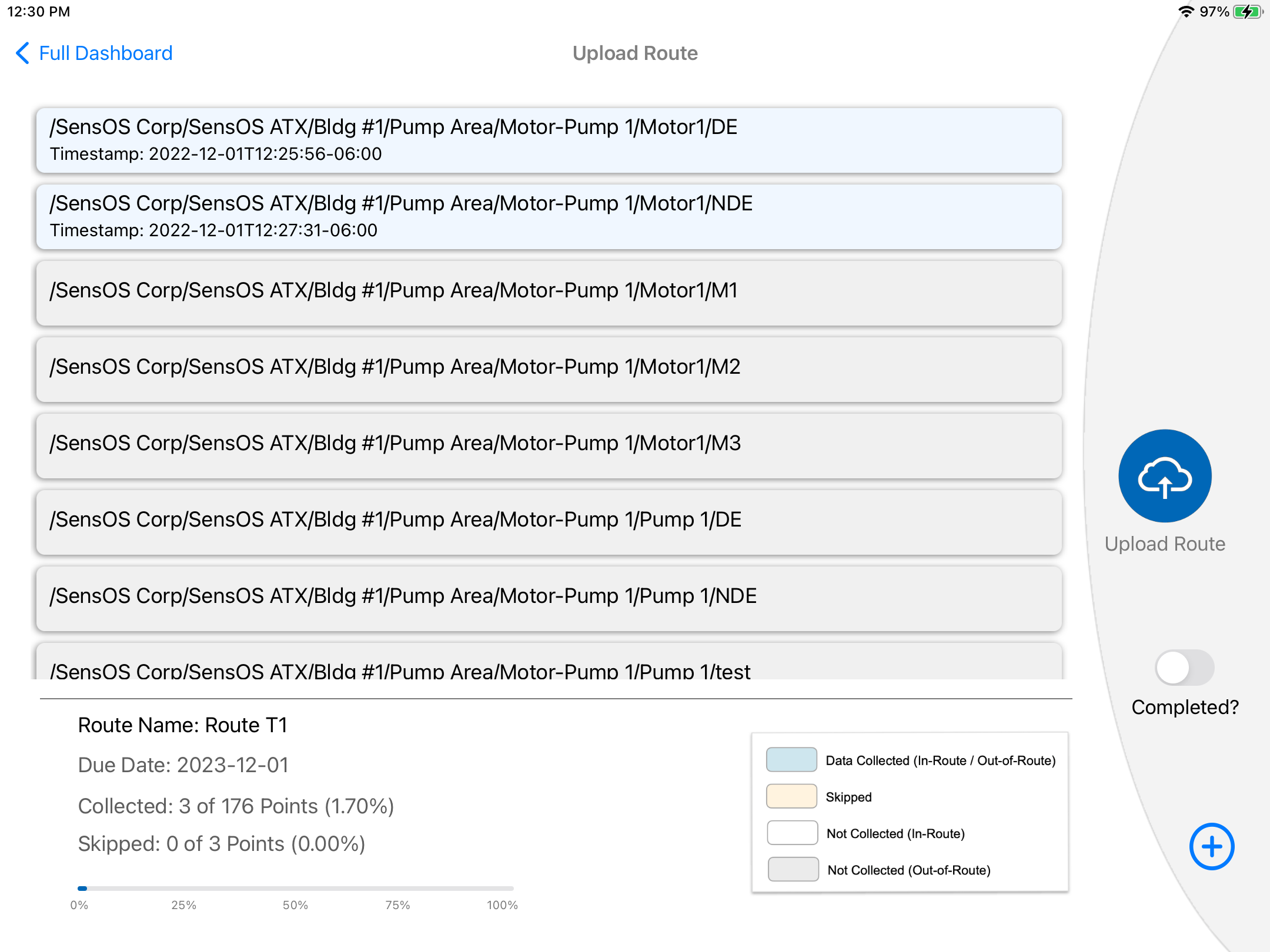

Pressing the "InsightCM" button, will open a new view showing all the point status and with the option to upload all the collected data to the InsightCM server. Pressing the Upload button in this view will send data to the InsightCM server, the user can decide to leave the route (partial upload) or to remove the route after uploading.

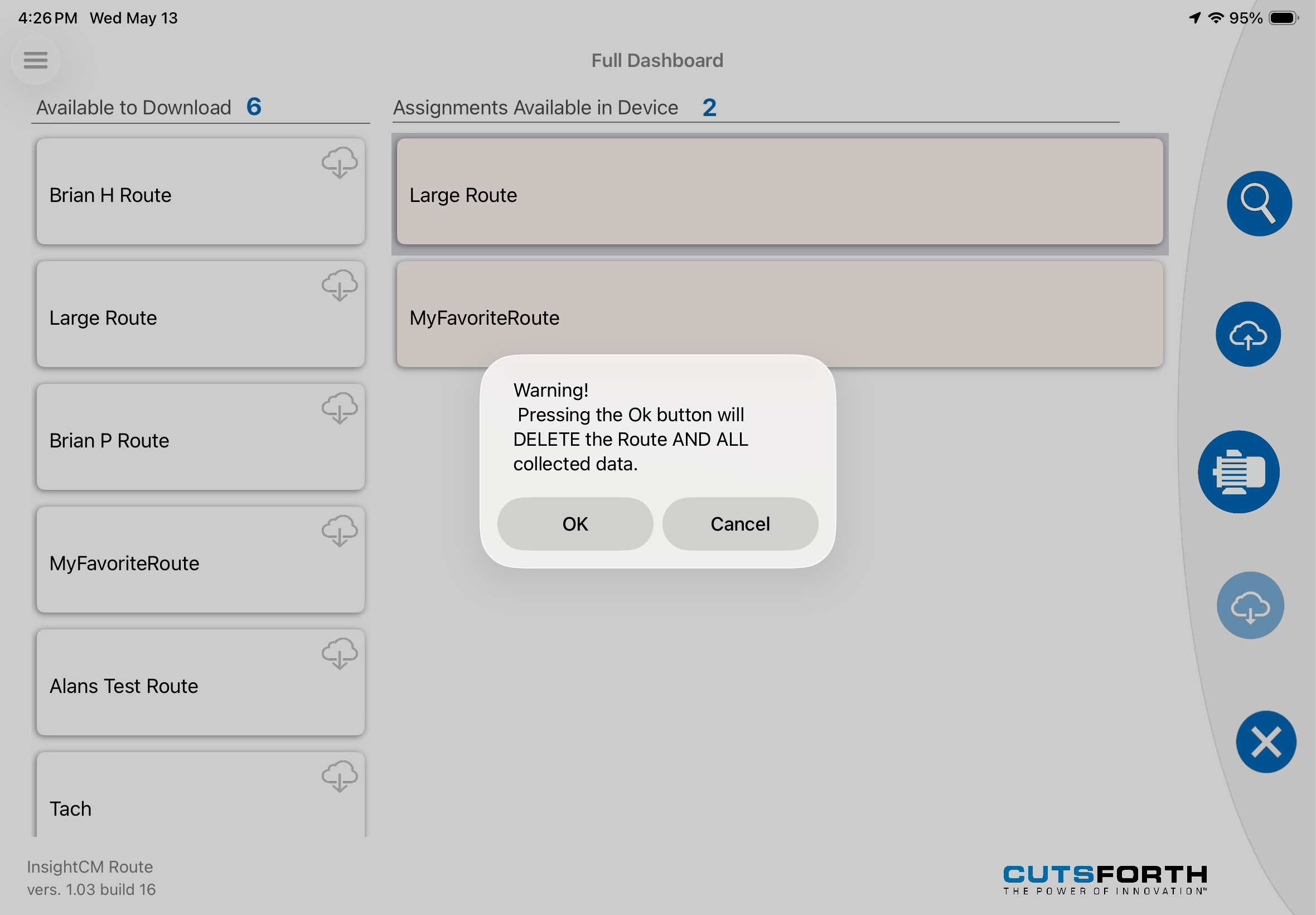

Pressing the 'X' (remove) button, will remove the selected route from the device. The route will be available again to be downloaded but it will not be local anymore.

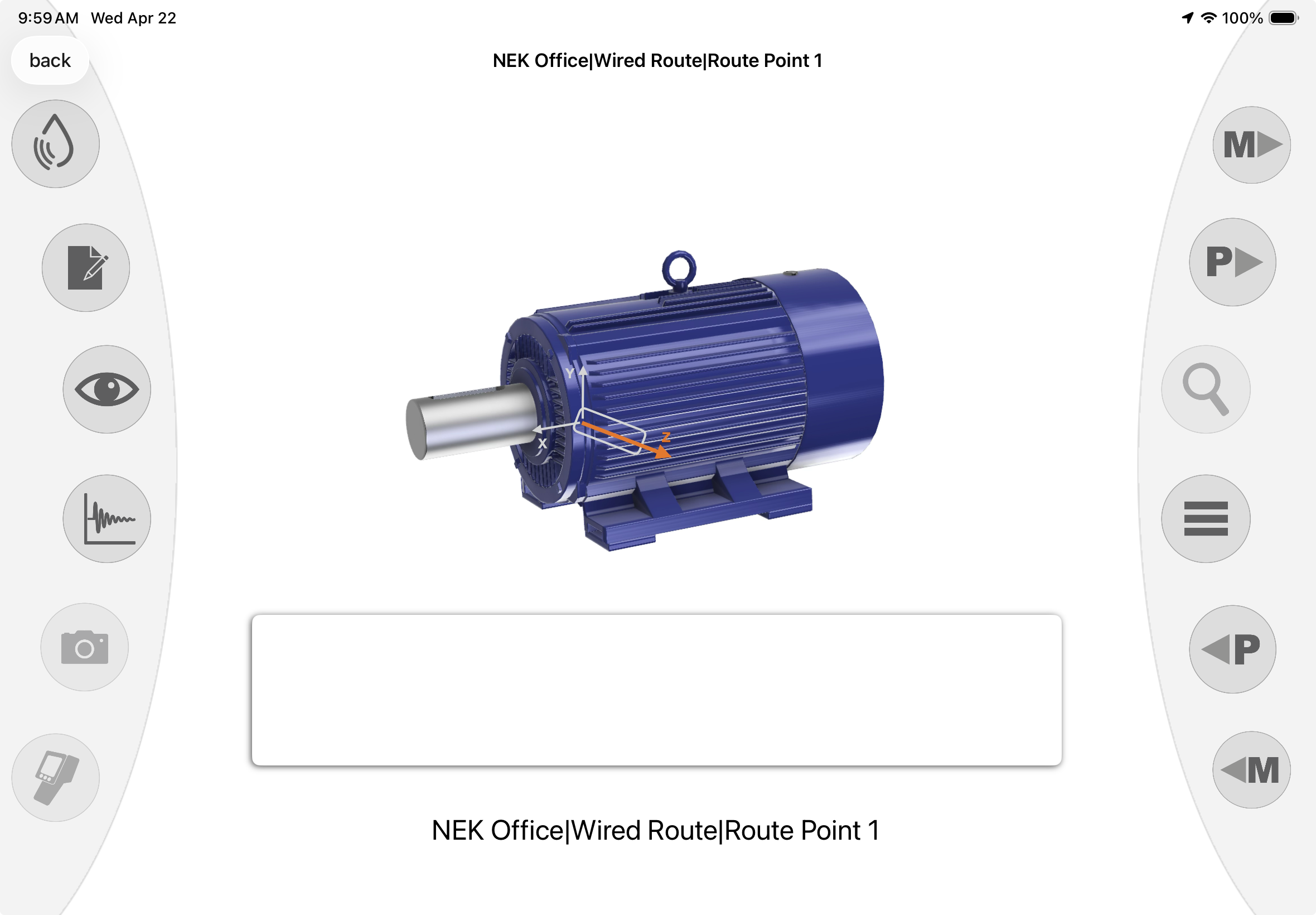

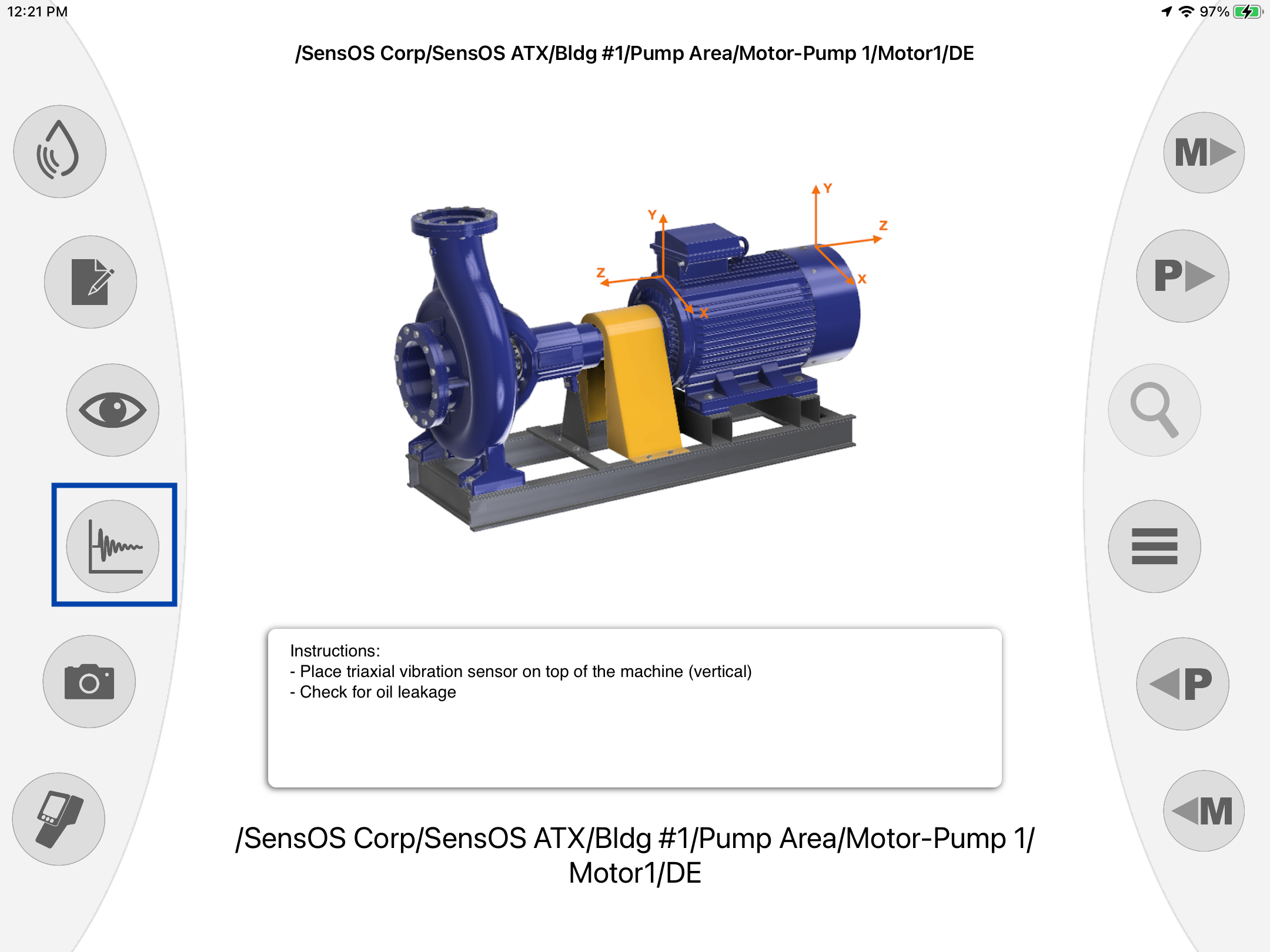

Pressing 'Collect Data' (Motor icon) button, will open the data collection user interface. The initial view will be a picture or diagram of the asset with instructions to the technician (the initial view can be changed to default to vibration, etc., in the main configuration, see Configuration item 2 for more details).

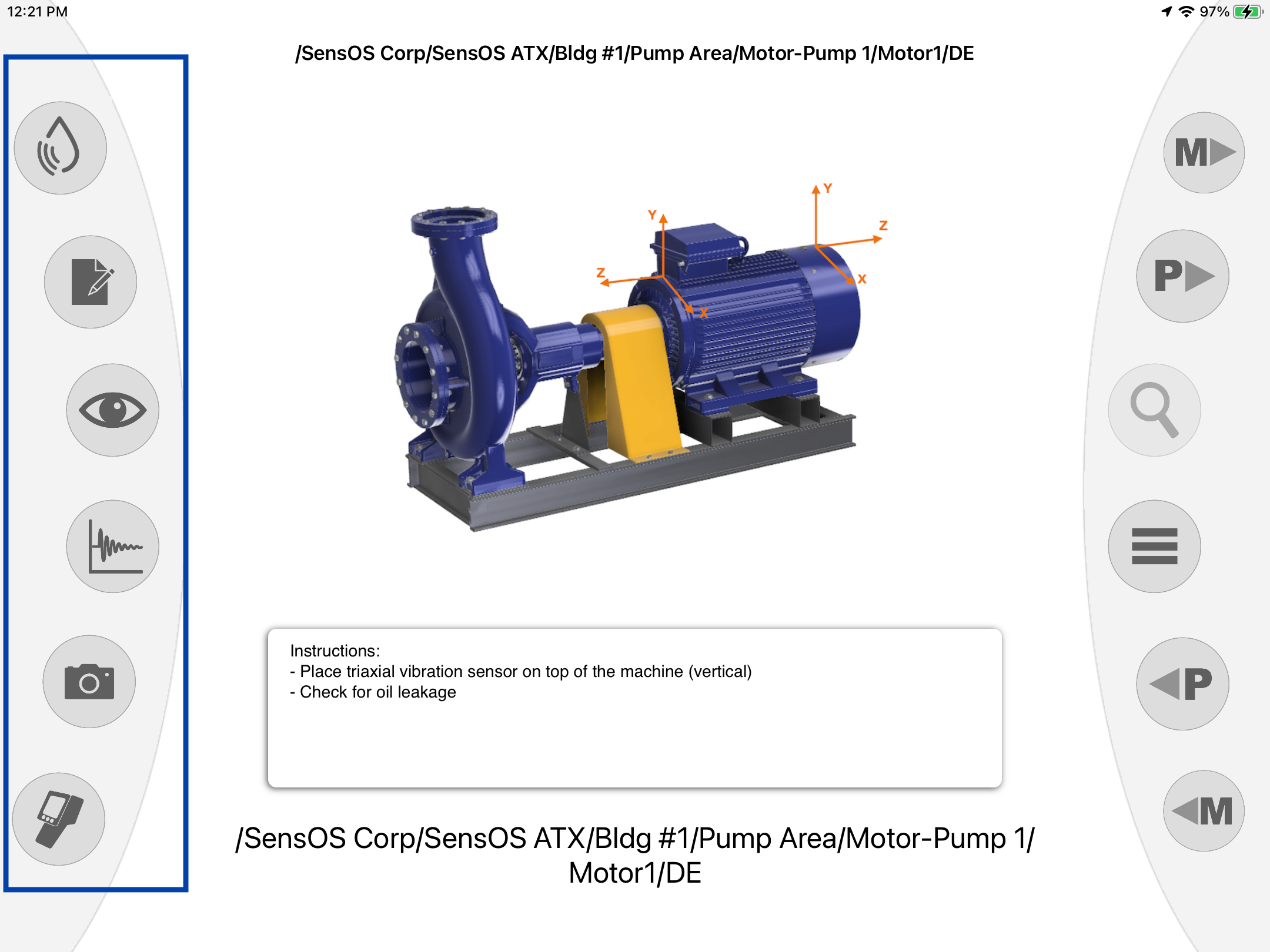

The left panel buttons will allow the user to select different CBM methods (from top to bottom: Ultrasonic, Annotations, Asset Diagram, Vibration, Photo & Thermal Imaging).

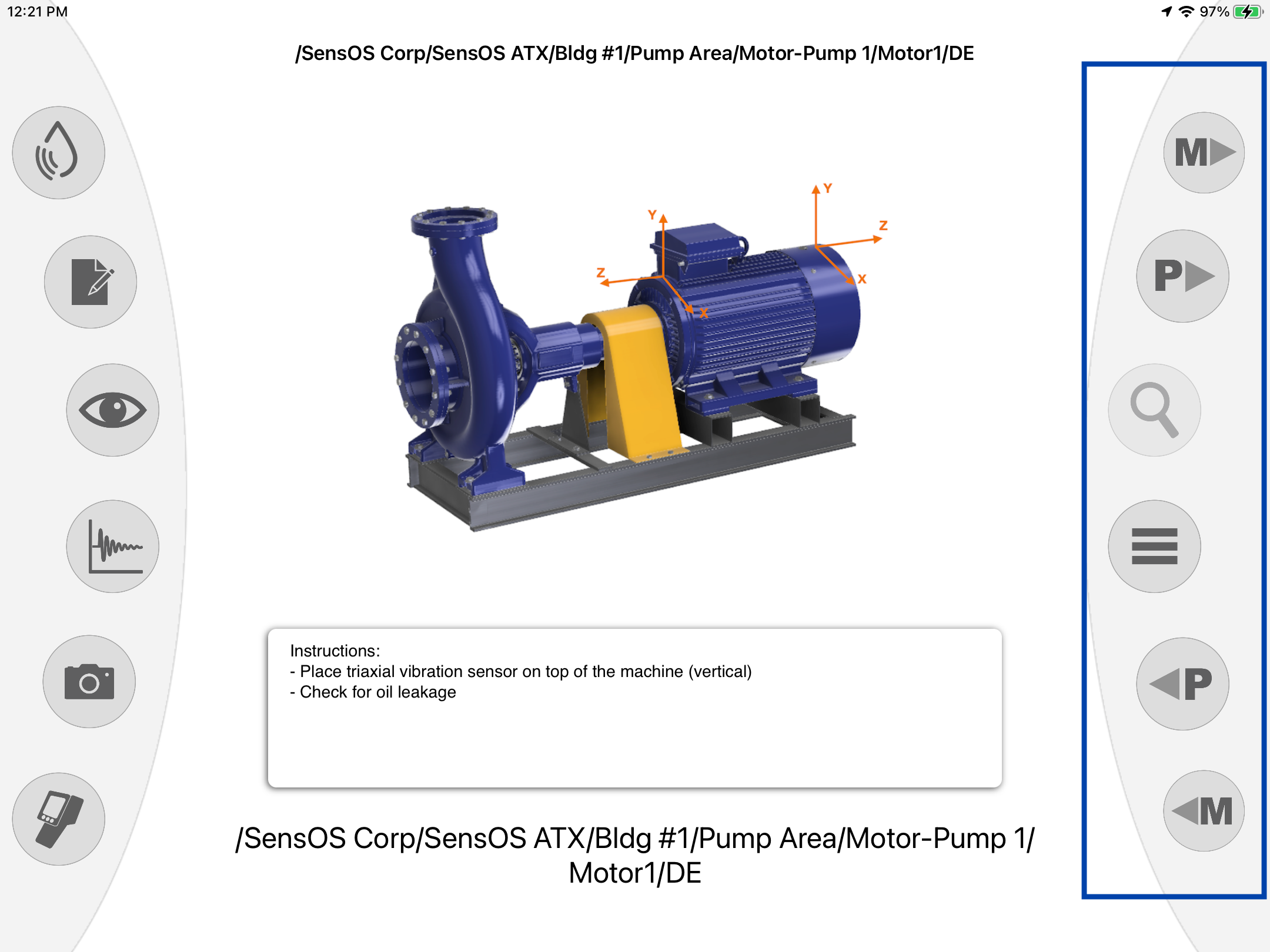

The right panel will allow the following options: from top to bottom: 'M▶︎' move to next Machine, 'P▶︎' advance to next Route Point, 'Magnifier' view collected data, 'Hamburger Menu' opens a pop-up with the list of points (see item 3 below), '◀︎M' move to previous Machine, '◀︎P' go to previous Route Point

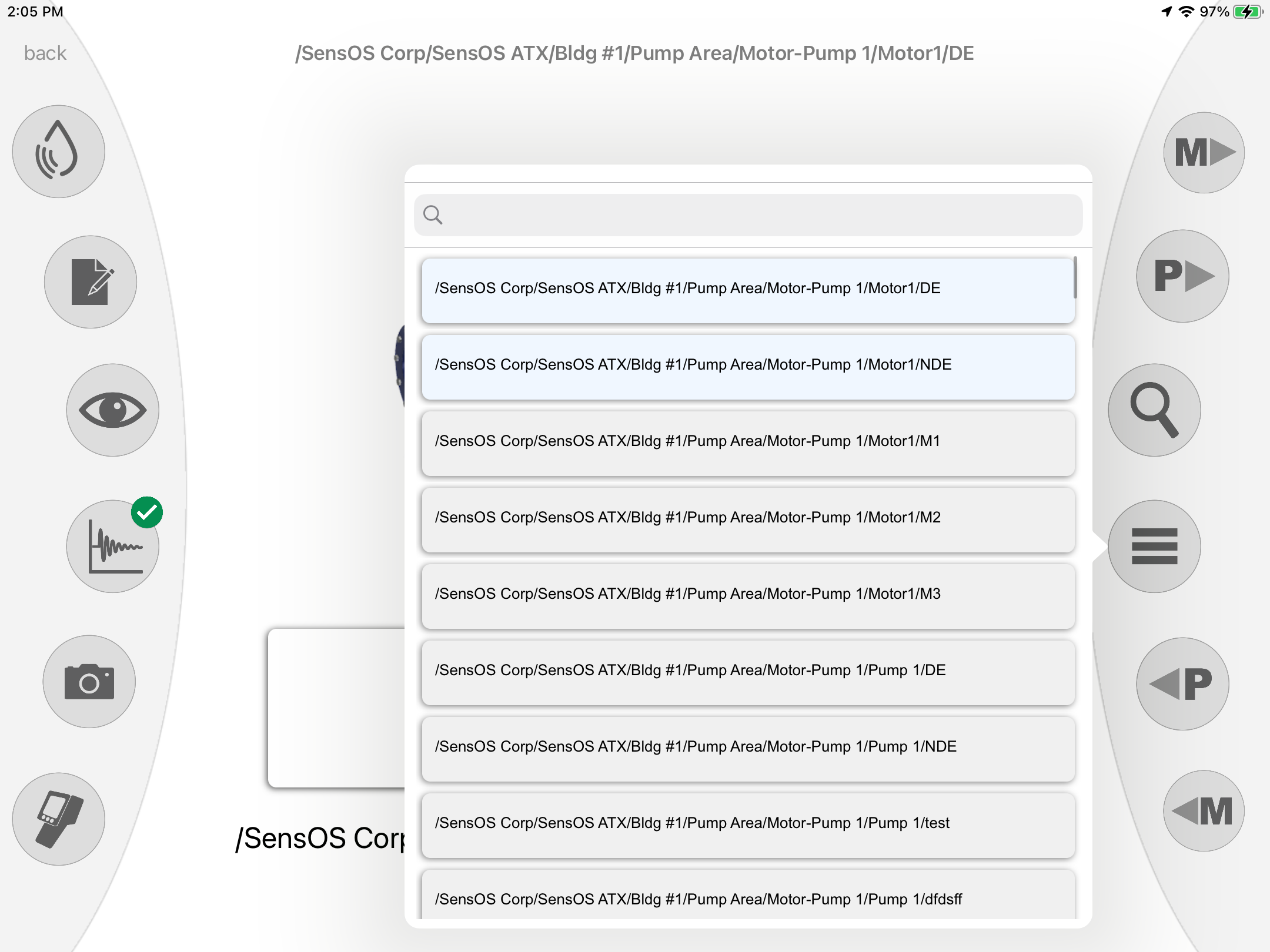

Pressing the hamburger menu button on the right panel will open a pop-up with the list of all route and off-route points. The user can search or scroll to any point and jump directly to it. This is the only way to access off-route points.

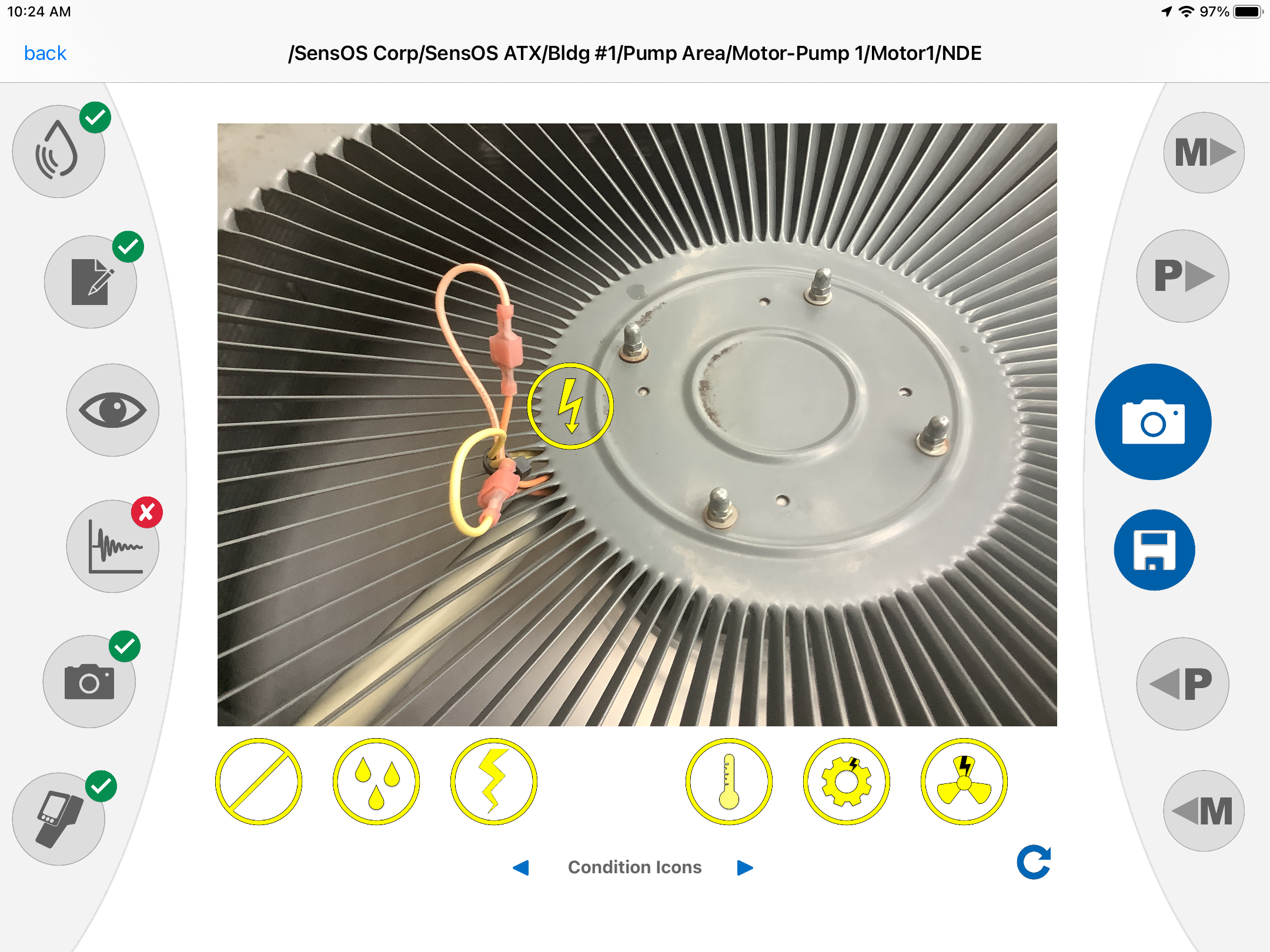

While navigating the left control panel buttons will show bubbles indicating if the reading was done '︎' or skipped '︎' for each of the CBM methods.

To collect vibration data, the user will need to select a default vibration sensor first, see Configuration item 1 & 3 for more details. Then press the Vibration button to show the vibration data collection view.

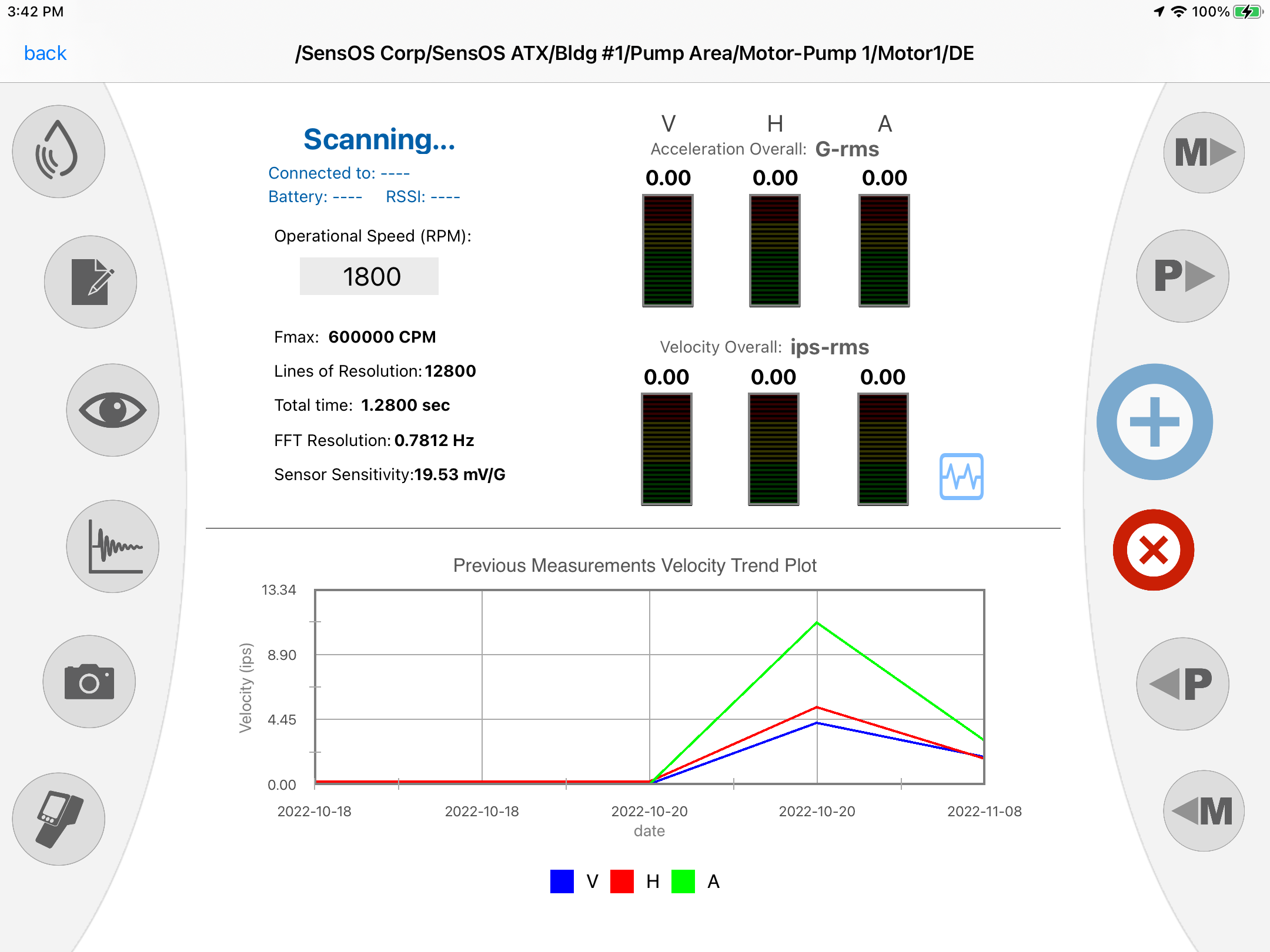

Navigate to the desired point and turn on the wireless sensor (if needed), the app will Scan for the available wireless sensors, as shown below.

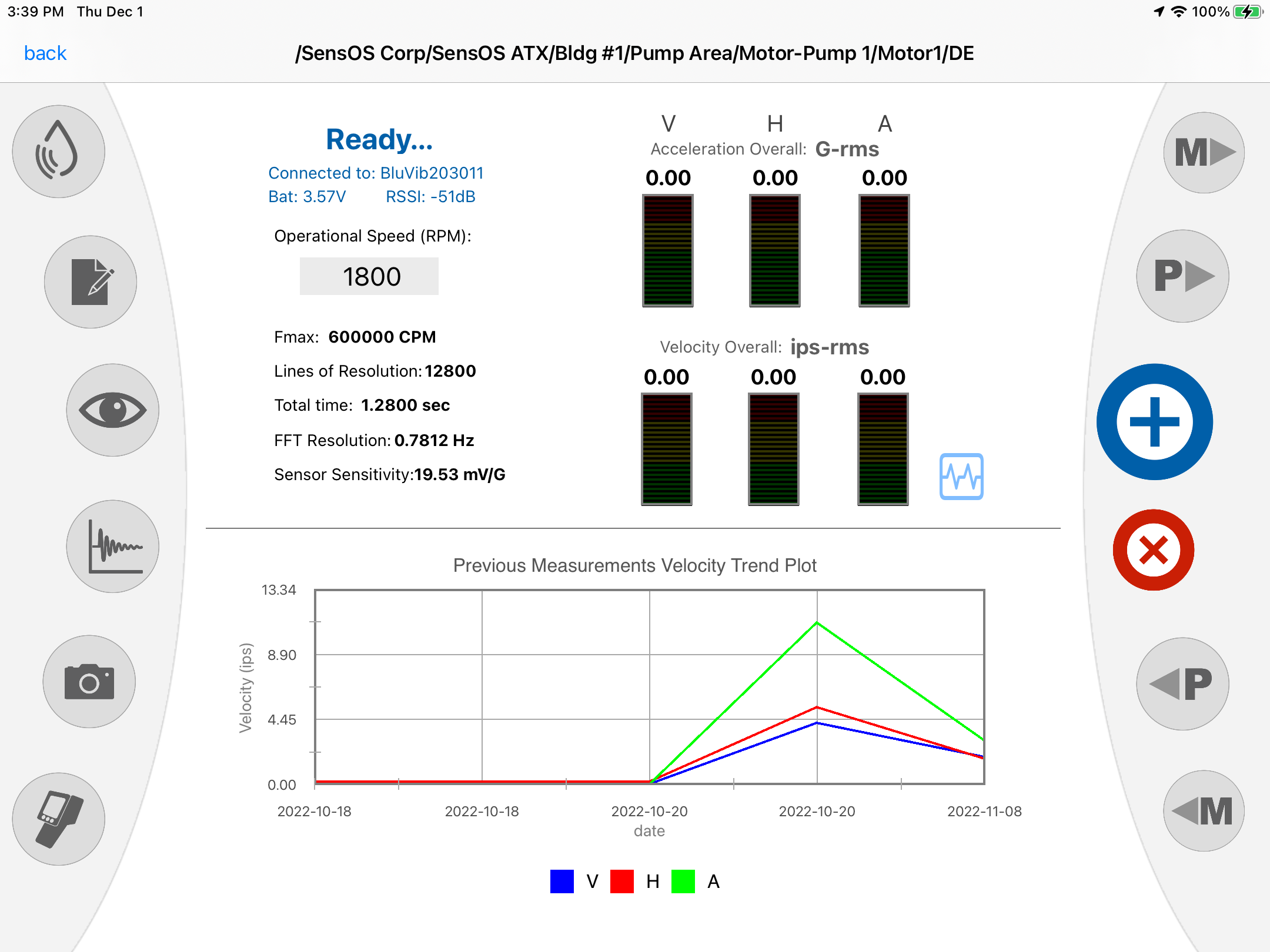

Once the sensor connects, it will display that its status is Ready. The RPM and sampling settings for the readings are part of the point configuration in InsightCM, and will show below the Sensor's status. The Trend below show the last 5 overall values of the vibration (Velocity or Acceleration, this can be set in the Configuration View).

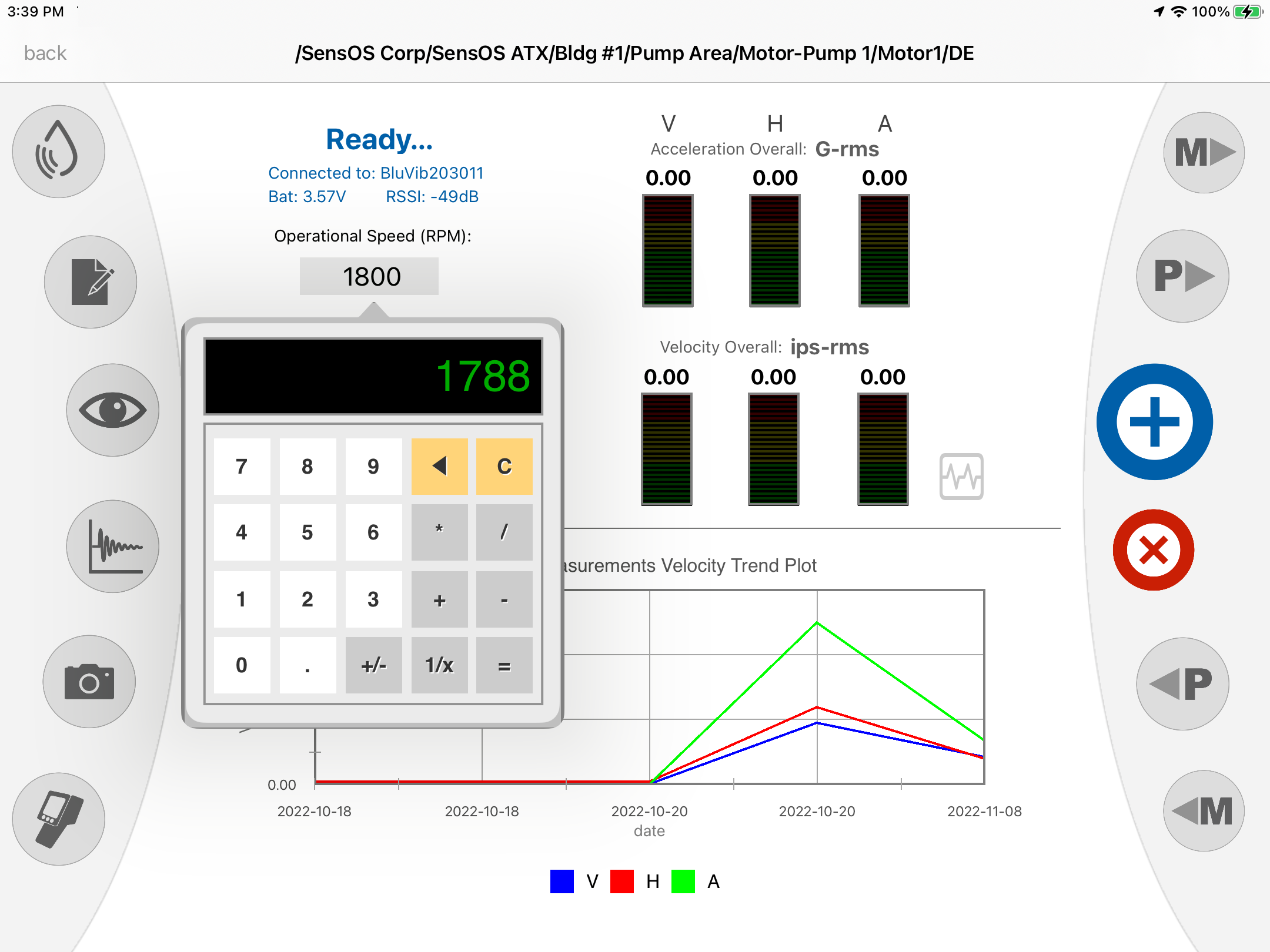

The user can change the RPM value by pressing over the RPM field, the calculator will allow to enter the actual operational RPM value. This value will be reported to the InsightCM but will not change the machine's default RPM.

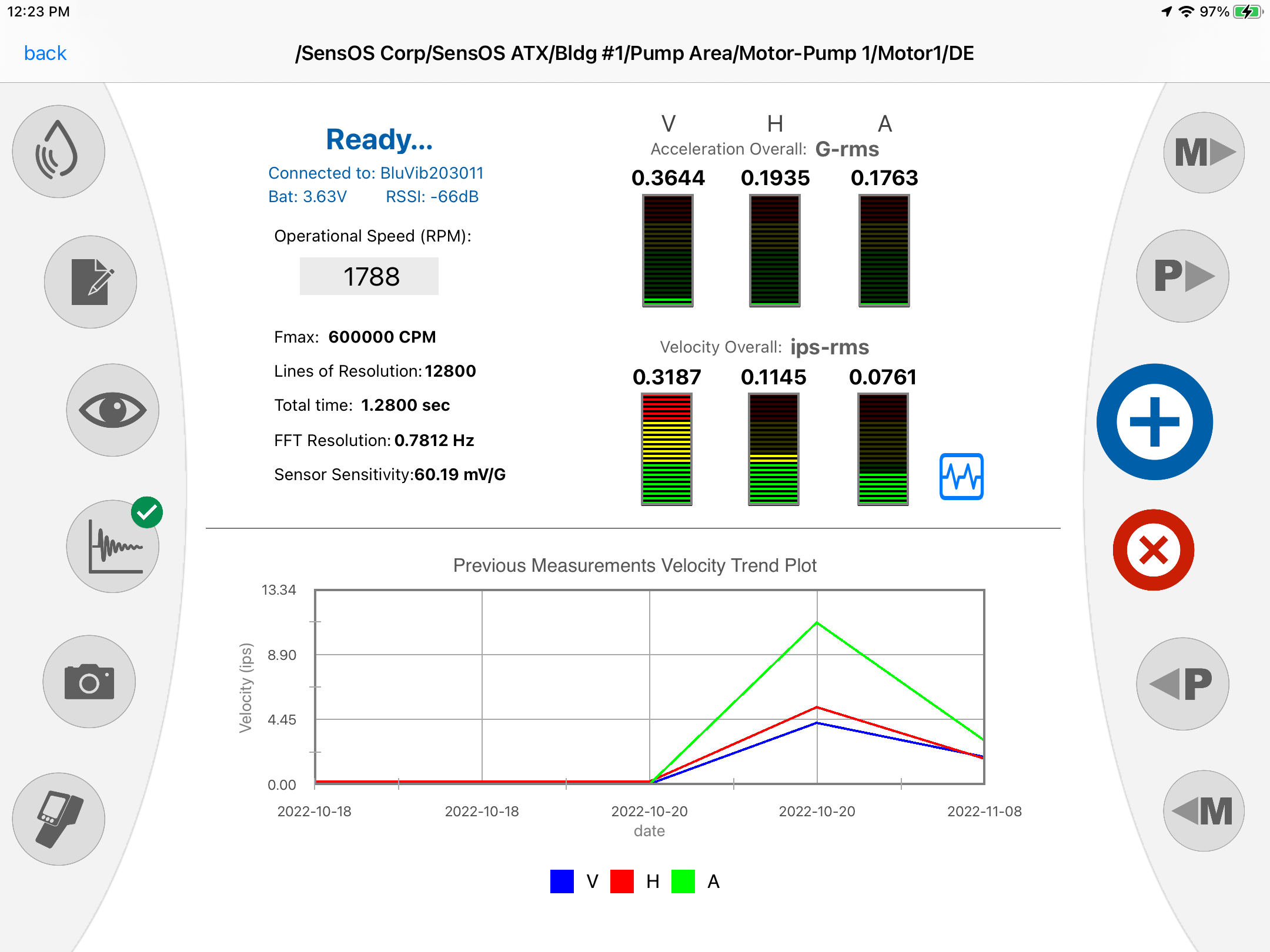

Place the Accelerometer on the machine in the selected point and press the "+" button on the Right Pannel to collect the vibration data. Once Data is collected it will display the overall values of the acceleration and velocity for the 3-Axes H-V-A.

The user can check the time-waveform and spectrum of the collected data by pressing the "Vibration View" button located besides the vibration meters, see Analyzing Vibration for more details, or can navigate to the next point to be measured.

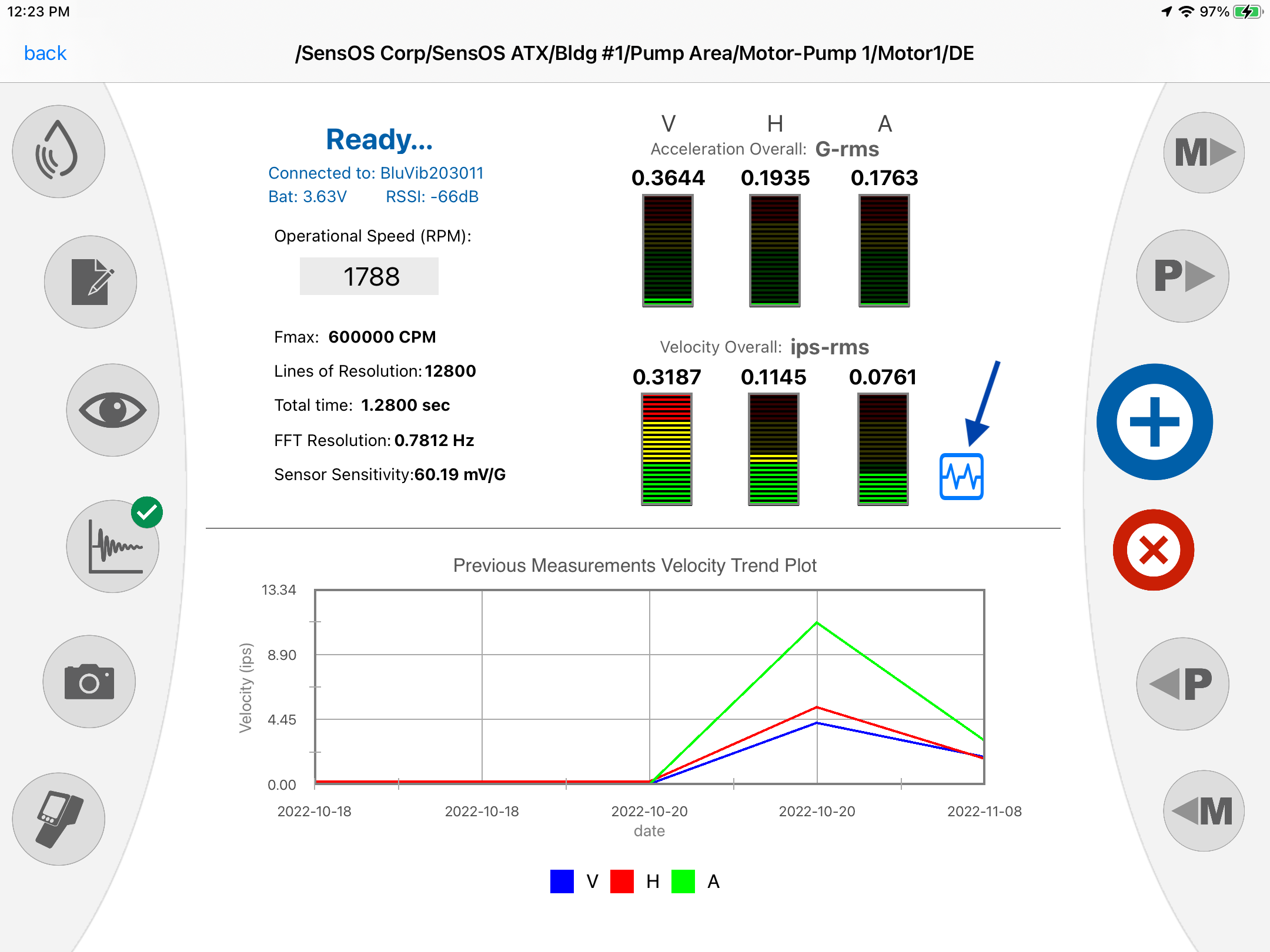

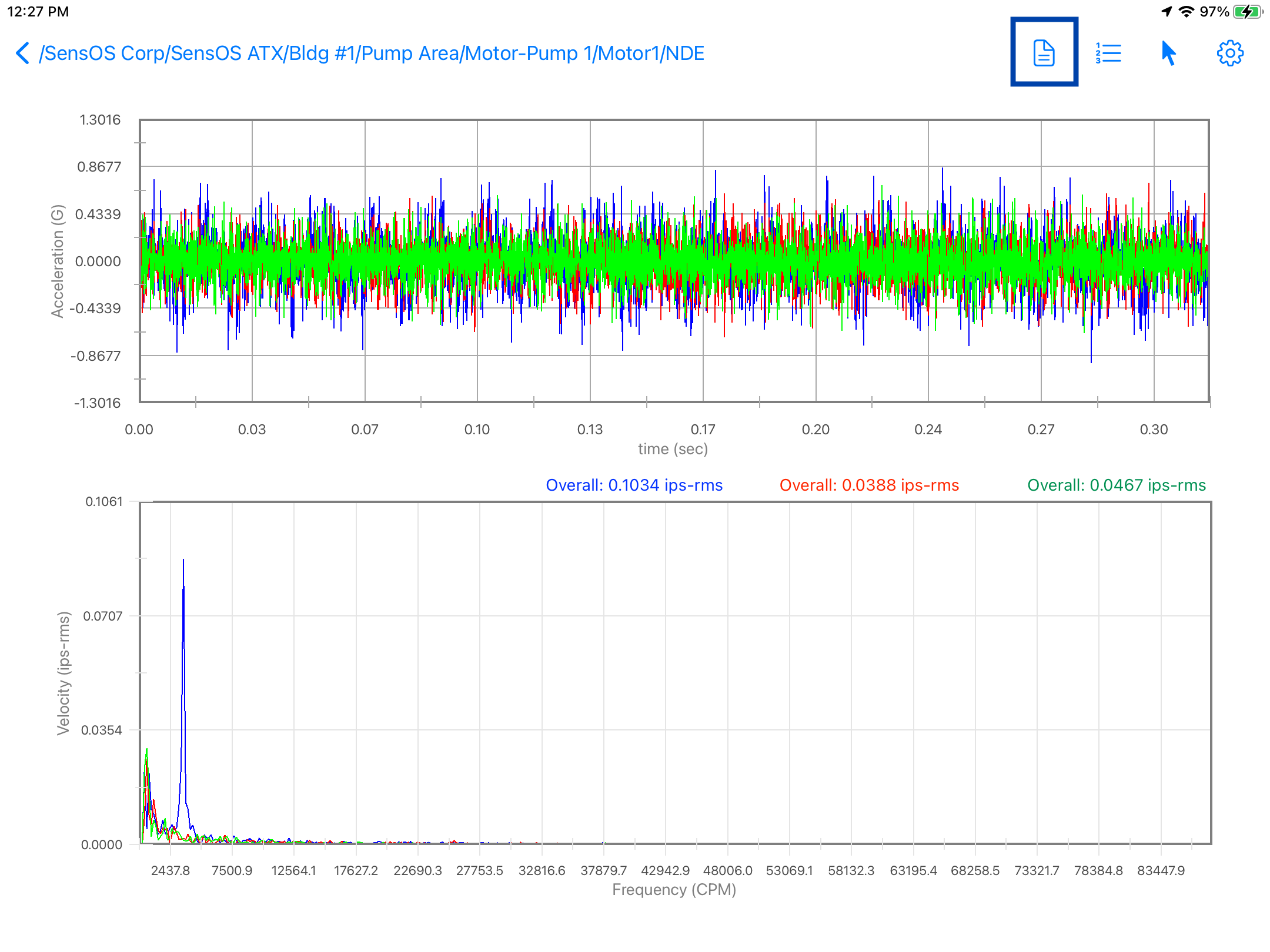

Press the vibration view button (indicated below with an arrow) to open the vibration analysis view.

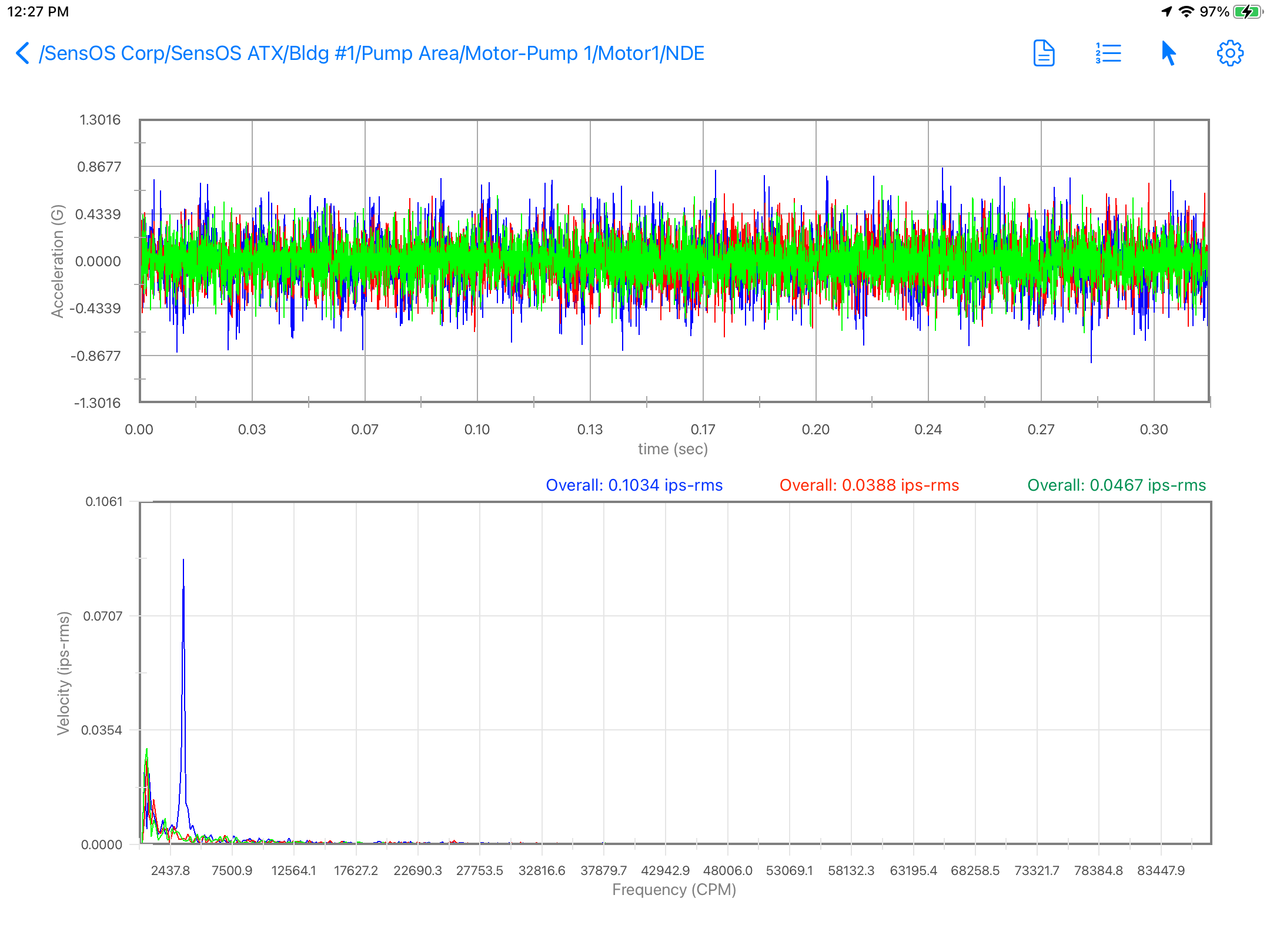

The vibration analysis view will appear, showing the collected data in the time-domain and frequency-domain. To zoom the plots, use both fingers to pinch in and out, to pan use one finger and swipe left or right.

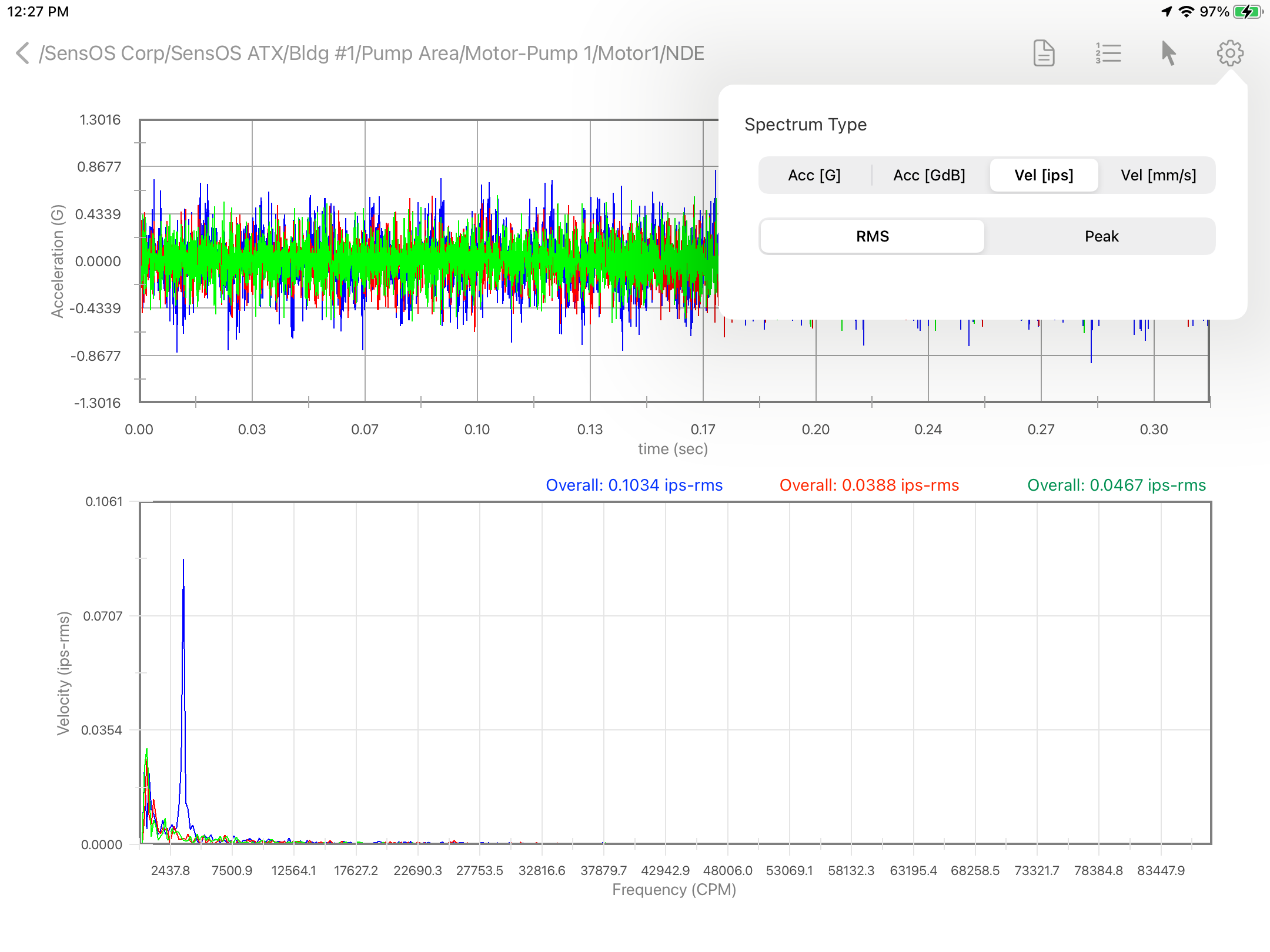

The settings button will open a pop-up where the user can toggle the spectrum type between acceleration/Velocity and can also change the amplitude from RMS to Pk and vice versa. To change the amplitude and frequency units see the Configuration section.

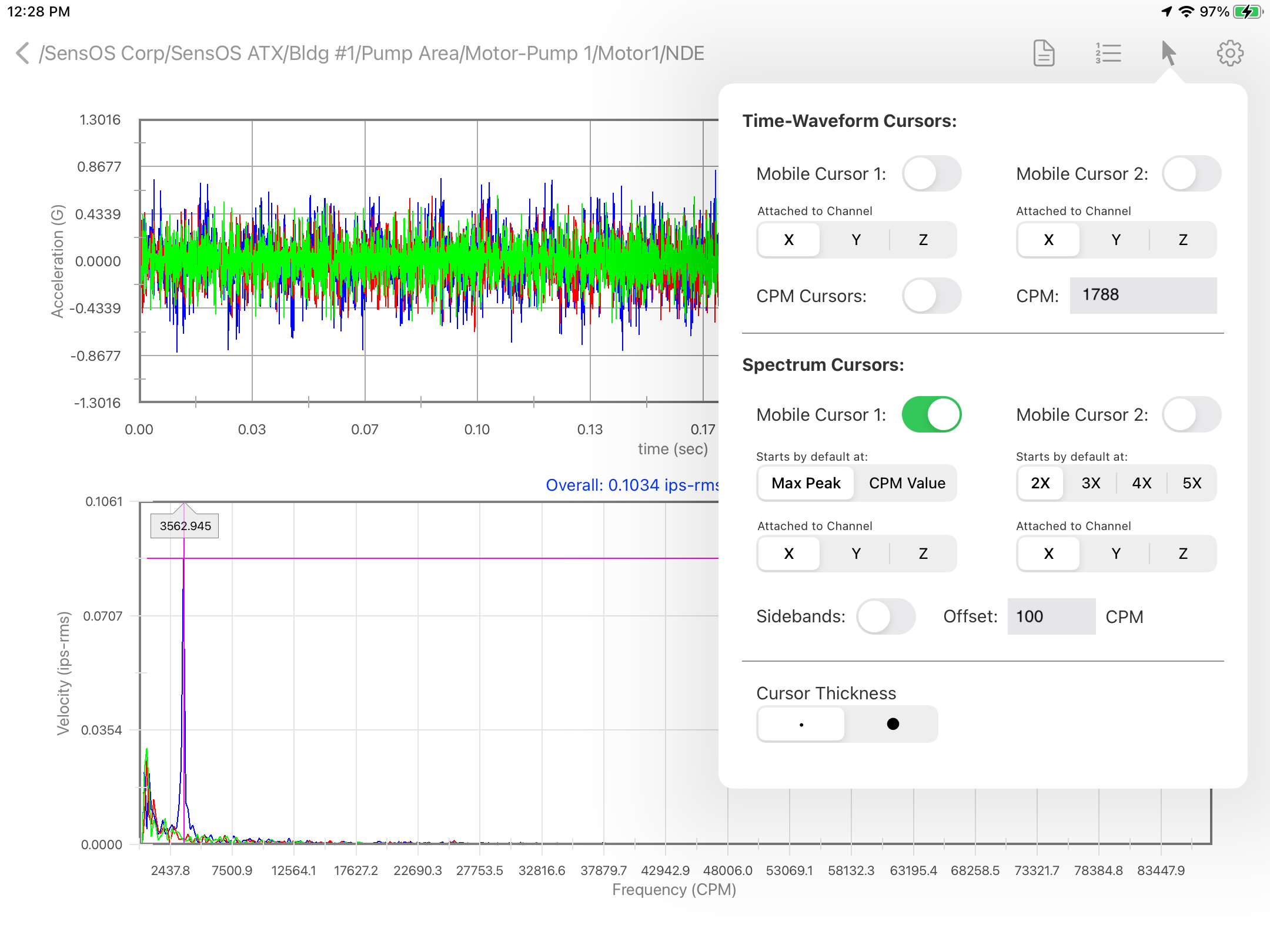

The cursors pop-up will allow the user to add manual cursors or the CPM cycle cursor to the time-waveform. The user can add a single manual cursor or a dual manual cursor by turning each switch on/off. User can select the channel to attach the cursor (in the selector below the cursor switch), in order for the cursor to follow the X, Y or Z plots. Spectrum cursors are also available; by selecting the manual cursor 1, the user is given the option to automatically place it on the higher peak or on the entered CPM value. The vertical (frequency) cursor can be dragged manually to the left or right, the horizontal (amplitude) cursor will follow the plot (on a triaxial plot, the user can select the axis to which the cursor is attached). A second cursor can be added and moved manually, but can also be set as a harmonic cursor. Sidebands cursors can be added and an initial offset entered in the offset field.

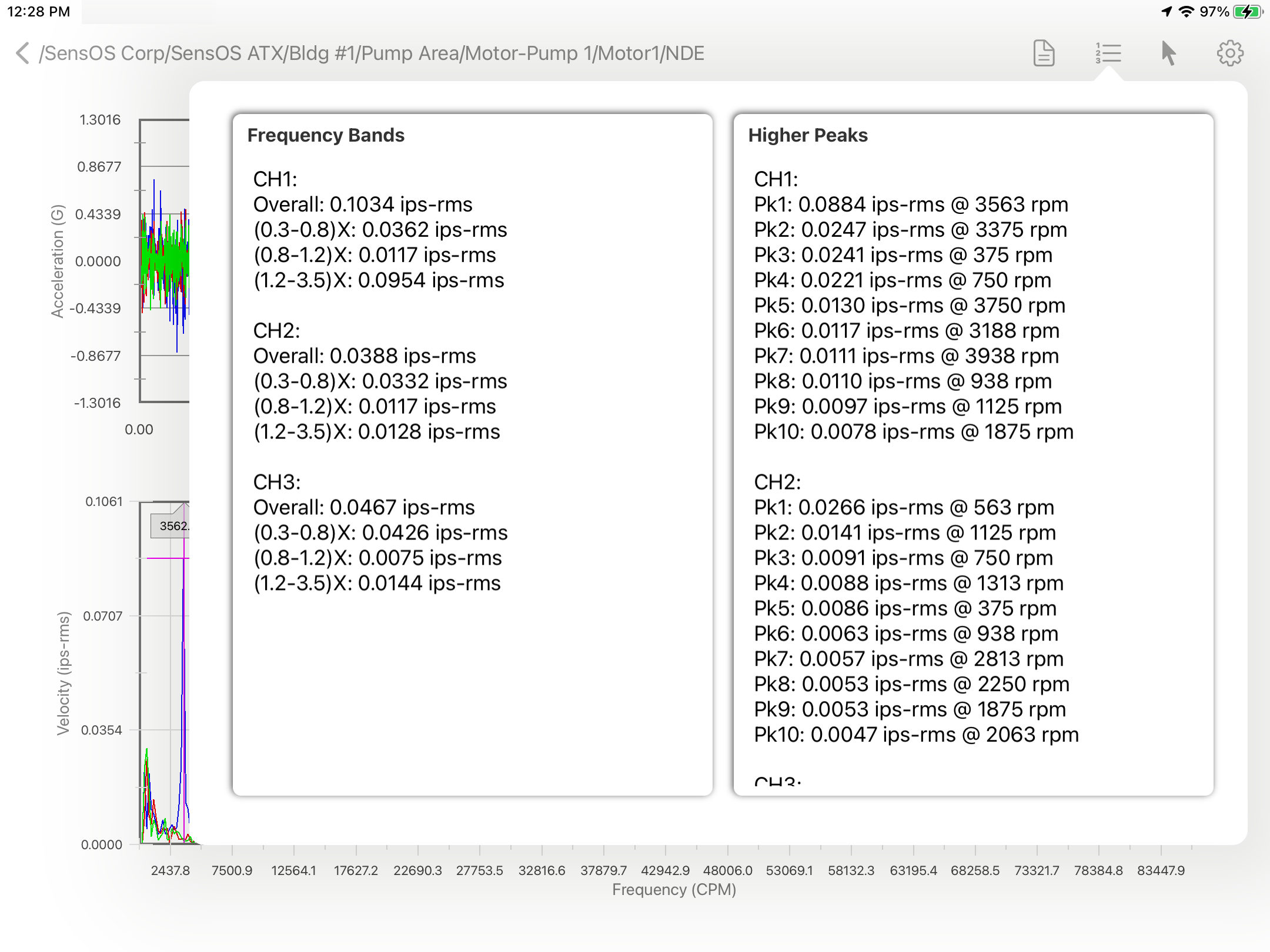

Pressing the stats button on the top menu bar, will open a pop-up view with the overalls and overall band values defined by the route point. The higher 10 peaks for each axis will also be listed.

A full pdf report can be generated, saved or sent by clicking on the report button, see more info in: Generating a pdf Report.

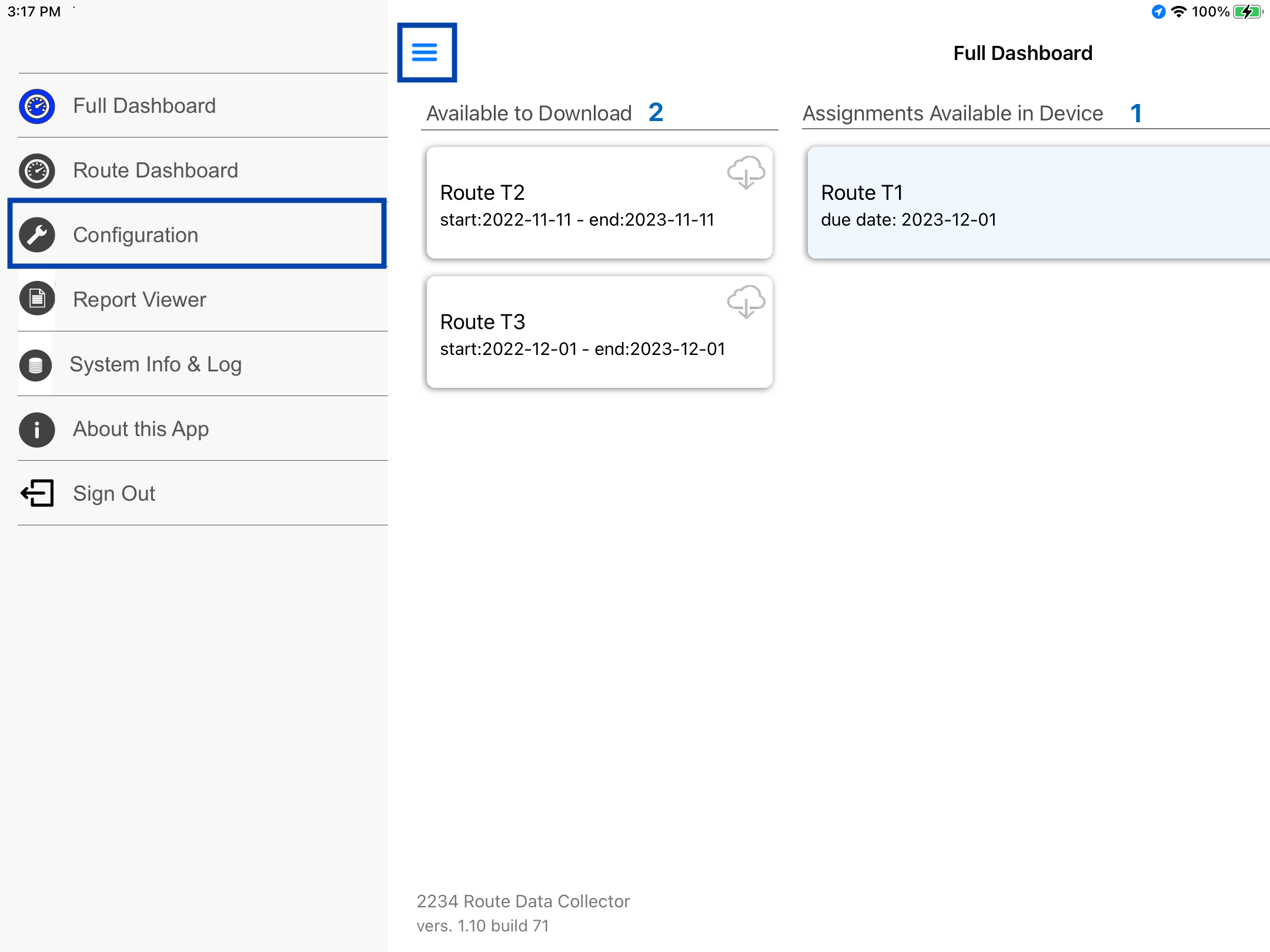

From the Main menu, click the top left menu button to open the left drawer with more options. Select 'Configuration' from the left menu.

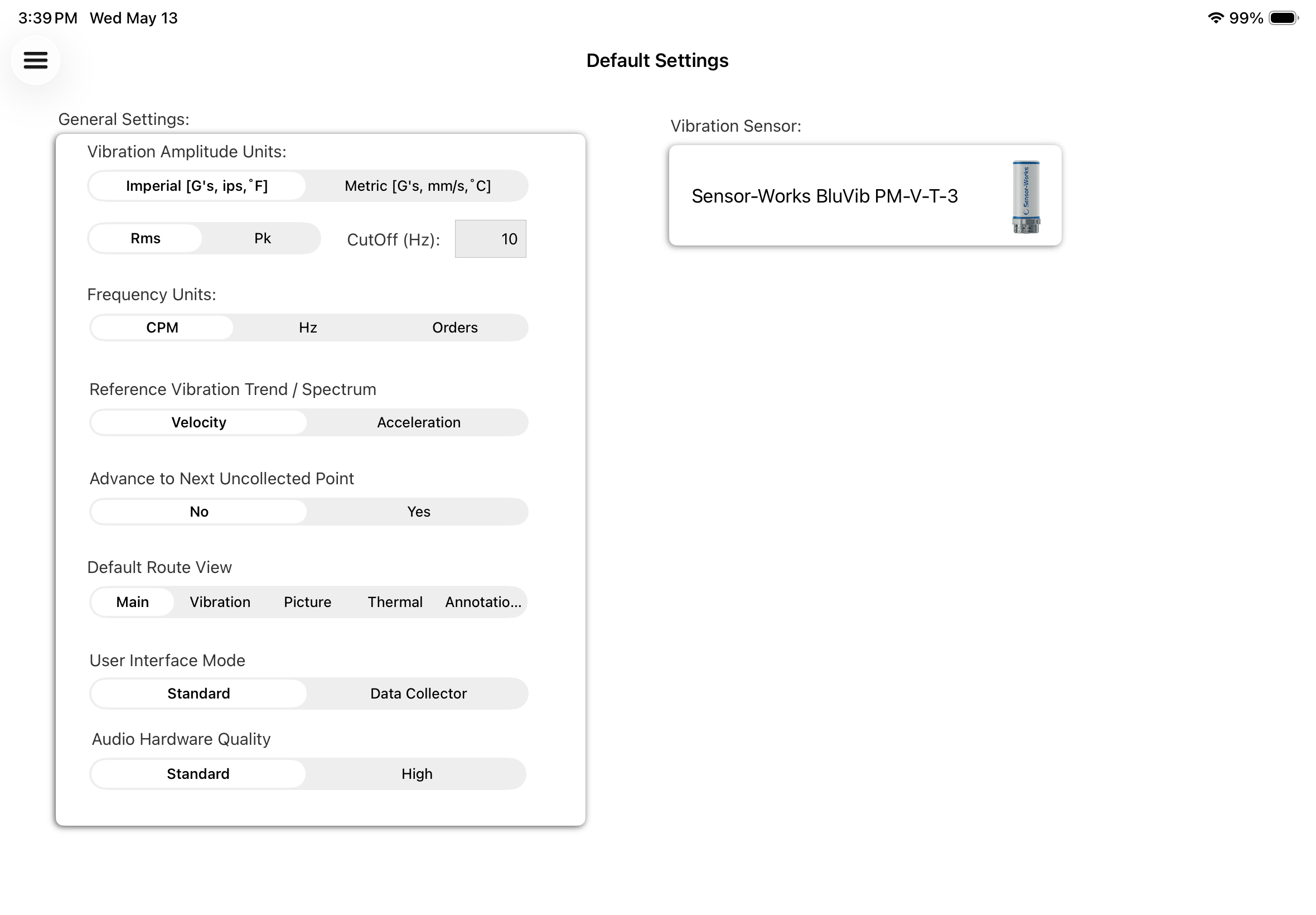

The main configuration will allow the user to: i) Set the unit to metric or imperial, ii) Set the amplitude of the vibration to RMS or Pk, iii) Set the spectrum frequency units to CPM, Hz or orders, iv) Set the last readings trend default to acceleration or velocity, v) Set to manually advance to the next uncollected point in the route, vi) Set the initial screen that will appear when goinf into the route, vii) Set the Data Collector user interface type, viii) Select the type of vibration sensor, and ix) Select the type of thermal image camera.

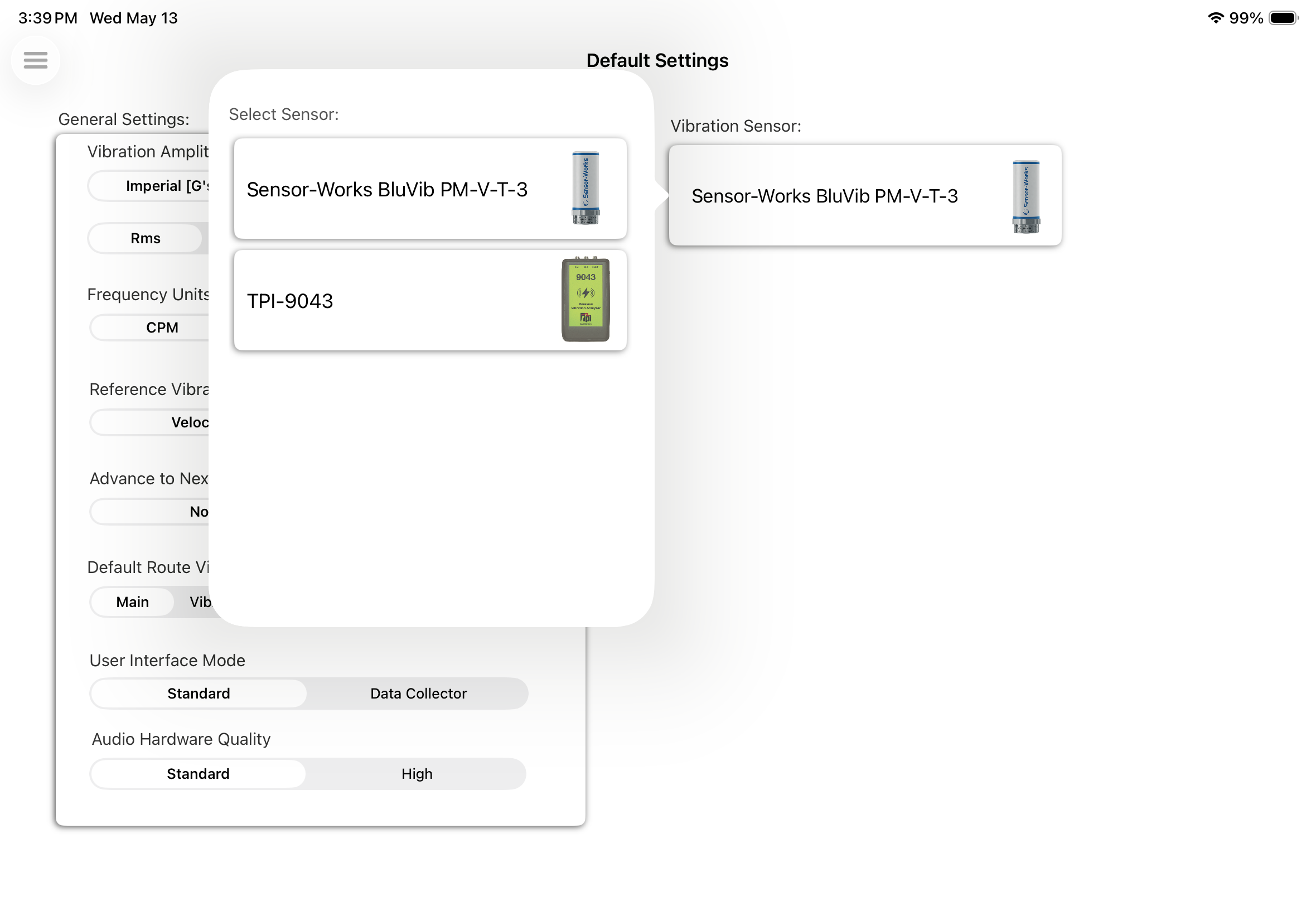

Press on the Vibration Sensor Cell to open a pop-up with a list of all available sensors. Select the sensor to be used.

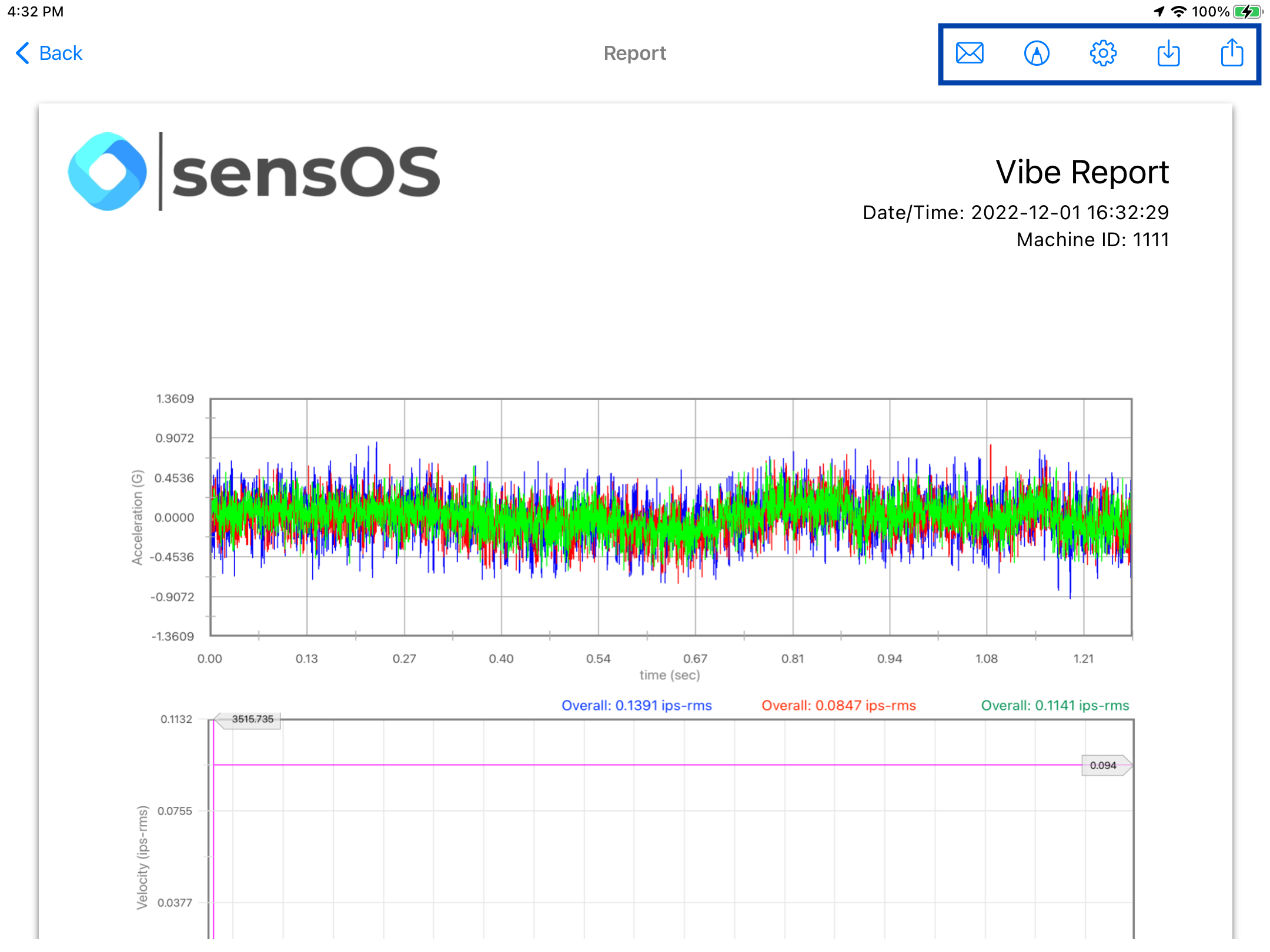

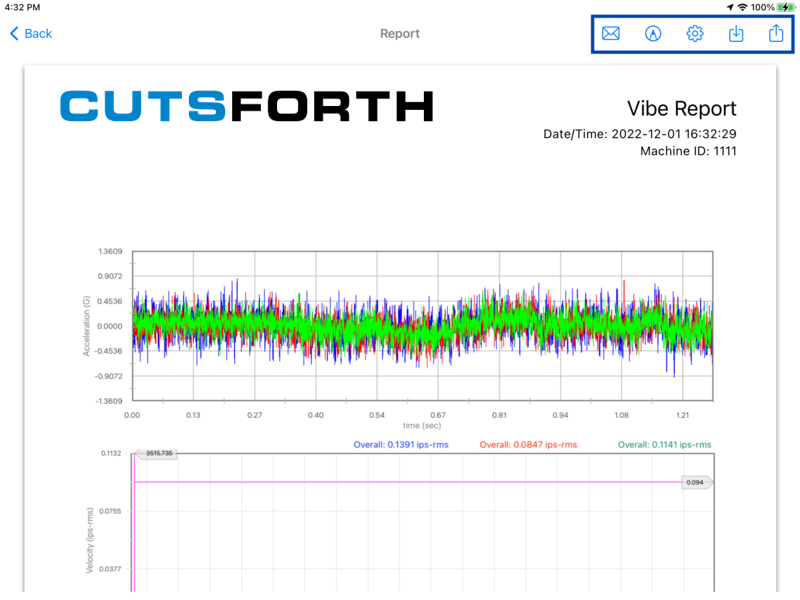

Clicking on the Report button will open a new view with the pdf report. The report view contains several options in the top bar menu: 1:Send by Email, 2:Markup tools, 3:Report Configuration, and 4:Save report locally.

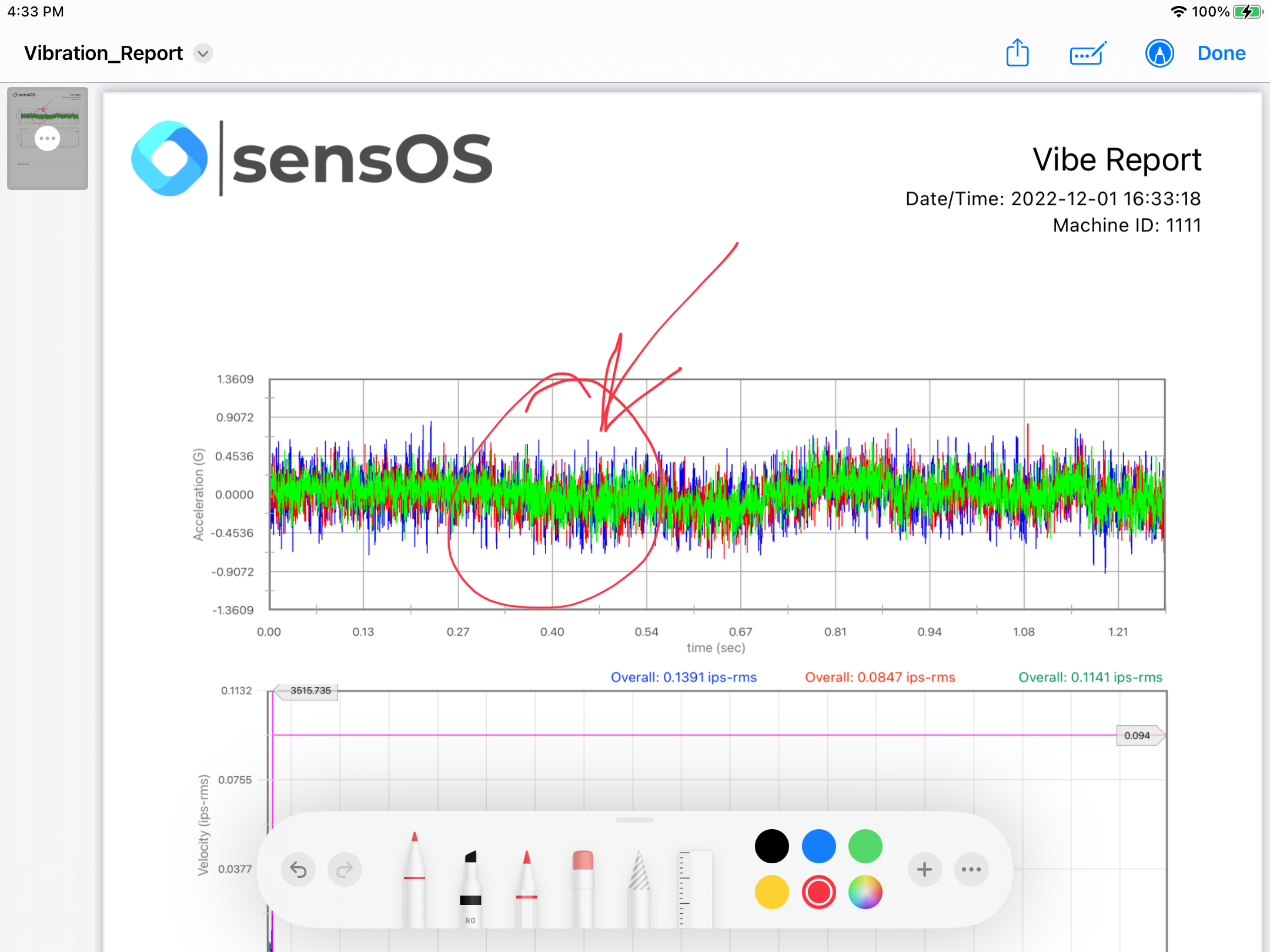

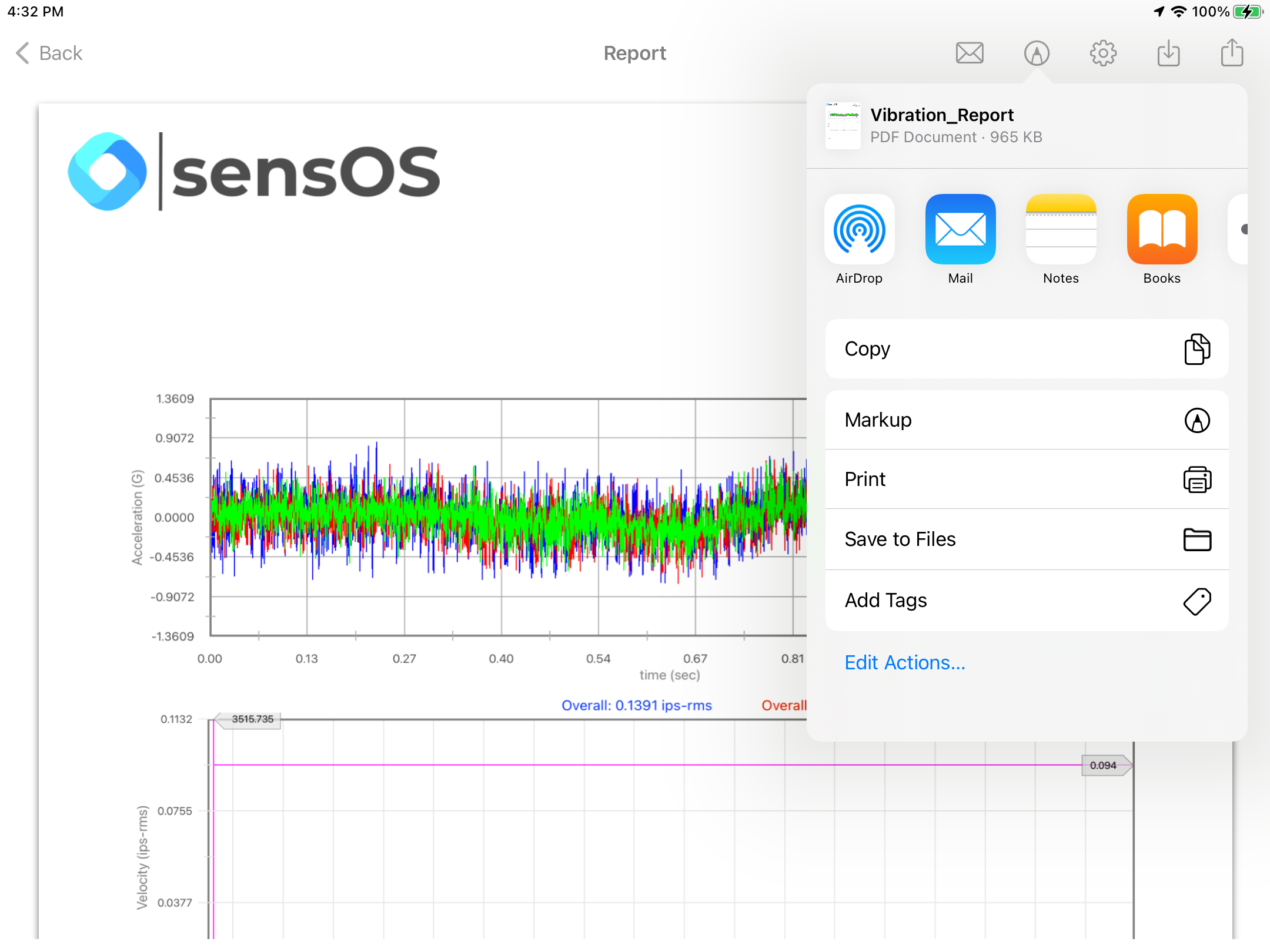

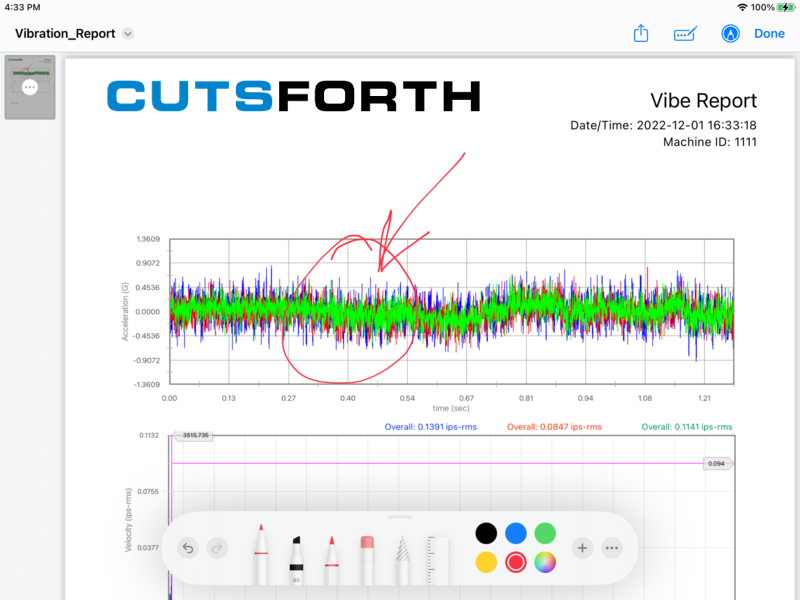

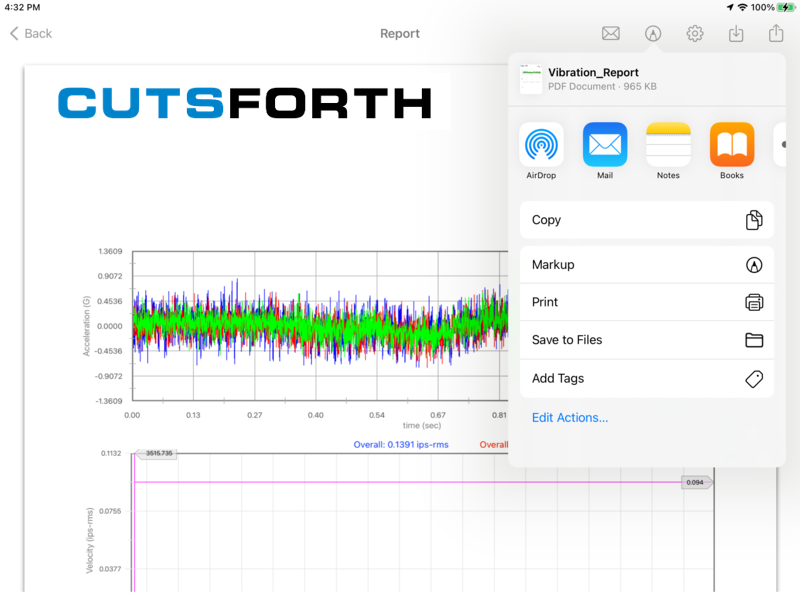

The markup tool allows the user to copy the report to the clipboard, send it by Airdrop or any other messaging app, email it, print it or save it to Files. The markup tool will open the standard tool to paint on the pdf report.

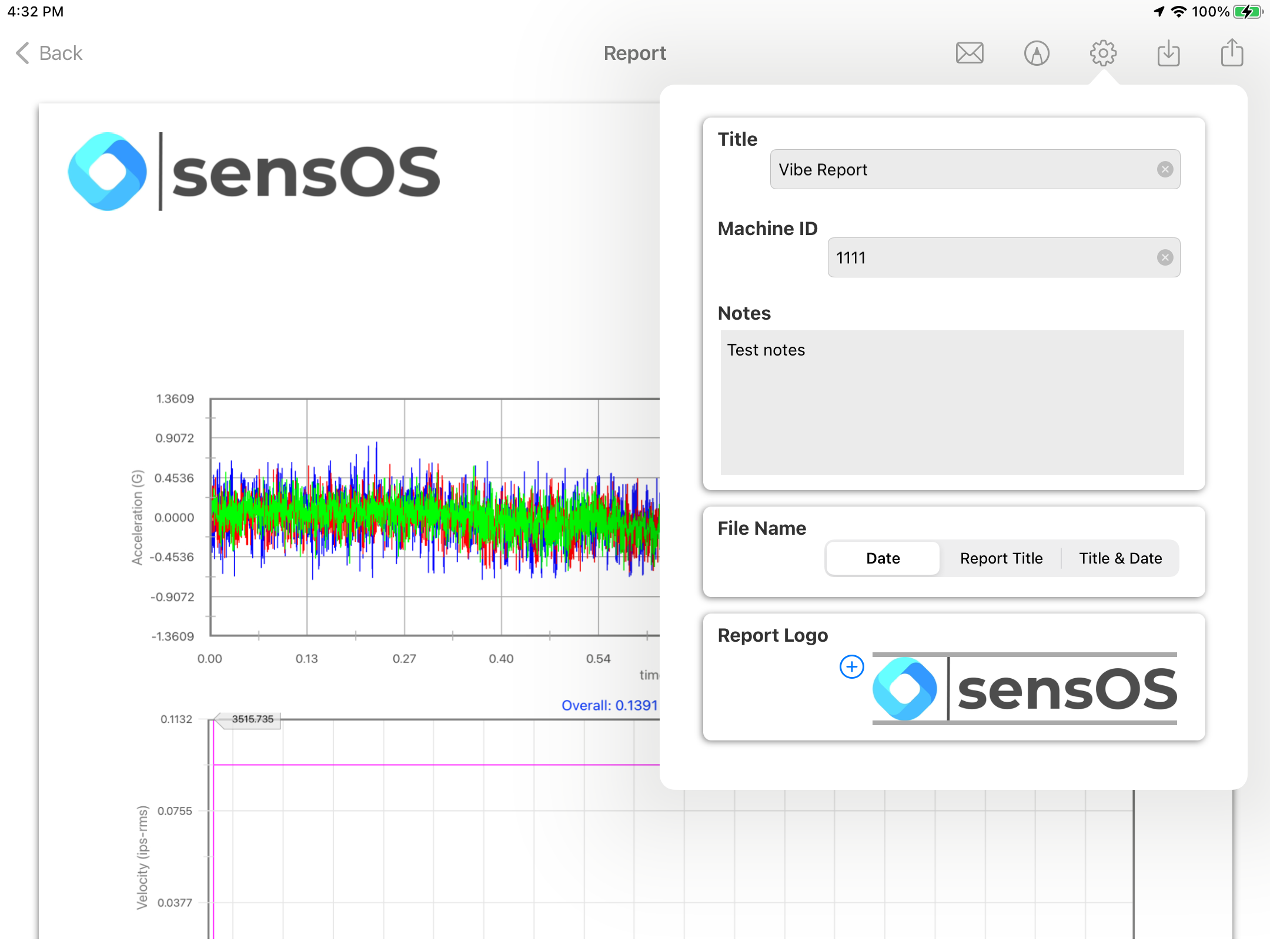

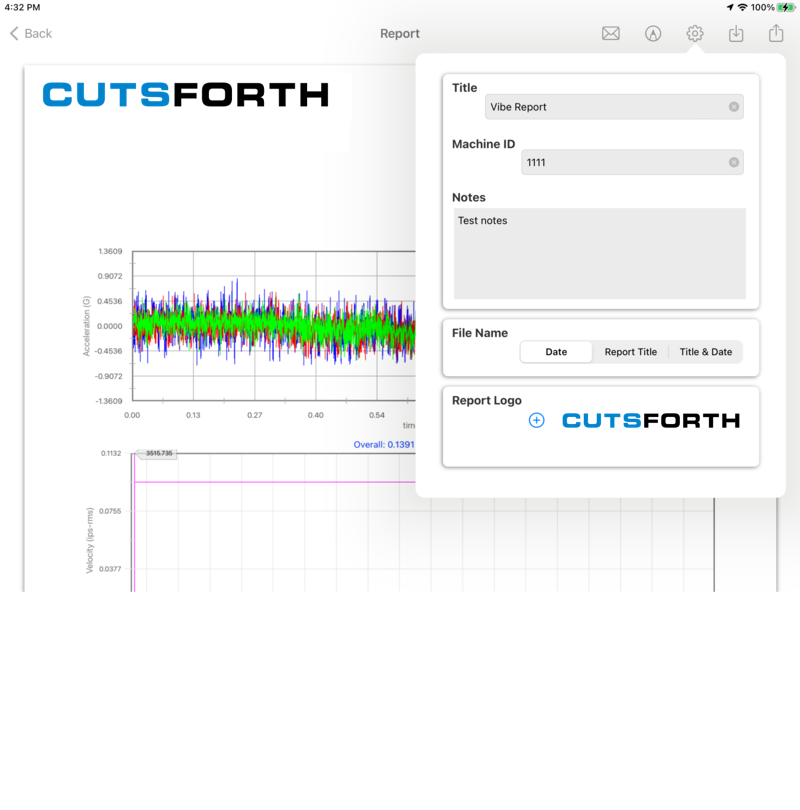

The Report Configuration pop-up allows the user to enter the Report Title, Machine ID and Notes to be added to the report. Here the user can also select a logo for the report. The report file name be default is the actual date and time, but the user can change it to the title name of the report or to both, the title name and date.
