Equipment List

To install the Wired Vibration Monitoring system, you need the equipment listed below. Please review this list thoroughly, taking care to note who is responsible for supplying each piece of equipment.

Equipment

Supplied by Cutsforth

Supplied by Plant

Supplied by Plant Electrical Contractor

Controller – one or two of the following, depending on quantity and type of equipment being monitored:

  • cRIO-9055 4-slot controller

  • cRIO-9058 8-slot controller

  • cRIO-9047 8-slot controller


Input card(s) – Depends on the signal type and quantity of signals being brought into the monitoring system:

  • NI-9229

  • NI-9230

  • NI-9232


NEMA 4X rated enclosure


Sensors (accelerometers, velocity probes, proximity sensors, etc.)

checkmark.png*

checkmark.png*

Shielded sensor signal cabling

checkmark.png*

checkmark.png*

Ethernet cable for connection to server


600 volt rated power cable


Conduit


*Either existing or new vibration sensors and cabling (supplied by plant or purchased from Cutsforth) can be integrated into the Cutsforth vibration monitoring hardware.

Installation

This section provides step by step instructions for installing the Wired Vibration Monitoring system.

  1. Mount the Wired Vibration Monitoring system enclosure at the planned location.

  2. If not already installed, install vibration sensors at desired location(s) on equipment to be monitored.

  3. Install the conduit and run cable between the vibration sensors and the monitoring system enclosure.

  4. Install the conduit and run cable for AC power input to the monitoring system enclosure. Minimum circuit size: 20A circuit free of non-linear loads. Consider a circuit with isolated ground.

  5. Install the conduit and run cable for data connection to the monitoring system enclosure. Cutsforth recommends Cat6a or fiber connection (media converter required if using fiber).

  6. Connect protective earth conductor per local electrical codes.

  7. Install wire for 120 – 240VAC supply per local electrical codes.

  8. If required by local electrical codes, install an external switch or circuit breaker near the equipment.Ensure equipment is positioned so that it will not be difficult to operate the external disconnecting device.

Conduit Layout

Color on Diagram

Conduit Run Description

Conduit Trade Size*

Wire Description

Purpose

Max. Cable Length

Wire Supplied By

Blue

Monitoring Enclosure to InsightCM Server

¾ in (2 cm)

Cat6a or Fiber

Data to InsightCM Server

330 ft (100 m)

Plant Electrical Contractor

Red

Plant Power to Monitoring Enclosure

¾ in (2 cm)

120VAC Power (20A dedicated circuit – preferably with isolated ground)

Power for the monitoring system

N/A

Plant Electrical Contractor

Yellow

Vibration Sensor(s) to cRIO Enclosure

¾ in (2 cm)

Shielded signal cabling

Vibration sensor signals to cRIO

100 ft

Plant Electrical Contractor

*cRIO Enclosures do not come with conduit holes pre-drilled. Conduit sizing and hole placement is customizable.

Up to 48 signal inputs can be connected to a Wired Vibration Monitoring system, provided that cable lengths stay within the specified limitations.

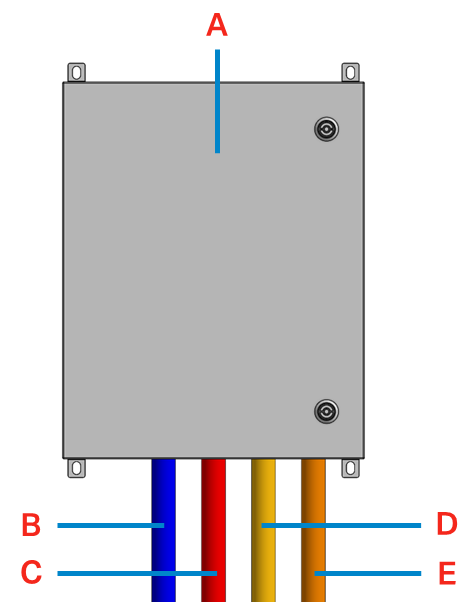

Part

Name

A

Cutsforth Wired Vibration Monitoring System

B

Blue: Data Output to InsightCM Network

C

Red: Plant Power Input to Monitoring System Enclosure

D

Yellow: Vibration Sensor Signal Input(s)

E

Orange: Additional Vibration Sensor Signal Input(s) as Required for Additional Assets

Conduit and Strut Channel Recommendations

Component

Standard Recommendation

Recommendation for High-Corrosion Environments

Conduit type

Galvanized rigid metal conduit (RMC)

Rigid Aluminum Conduit (RAC)

Conduit fittings type

Malleable, NEMA 4X rated or greater

Aluminum

Strut channel type

Hot dipped galvanized, back-to-back

316 Stainless steel

Mounting hardware

316 Stainless steel

316 Stainless steel

Liquid flexible metallic conduit

Type HCX

Type HCX

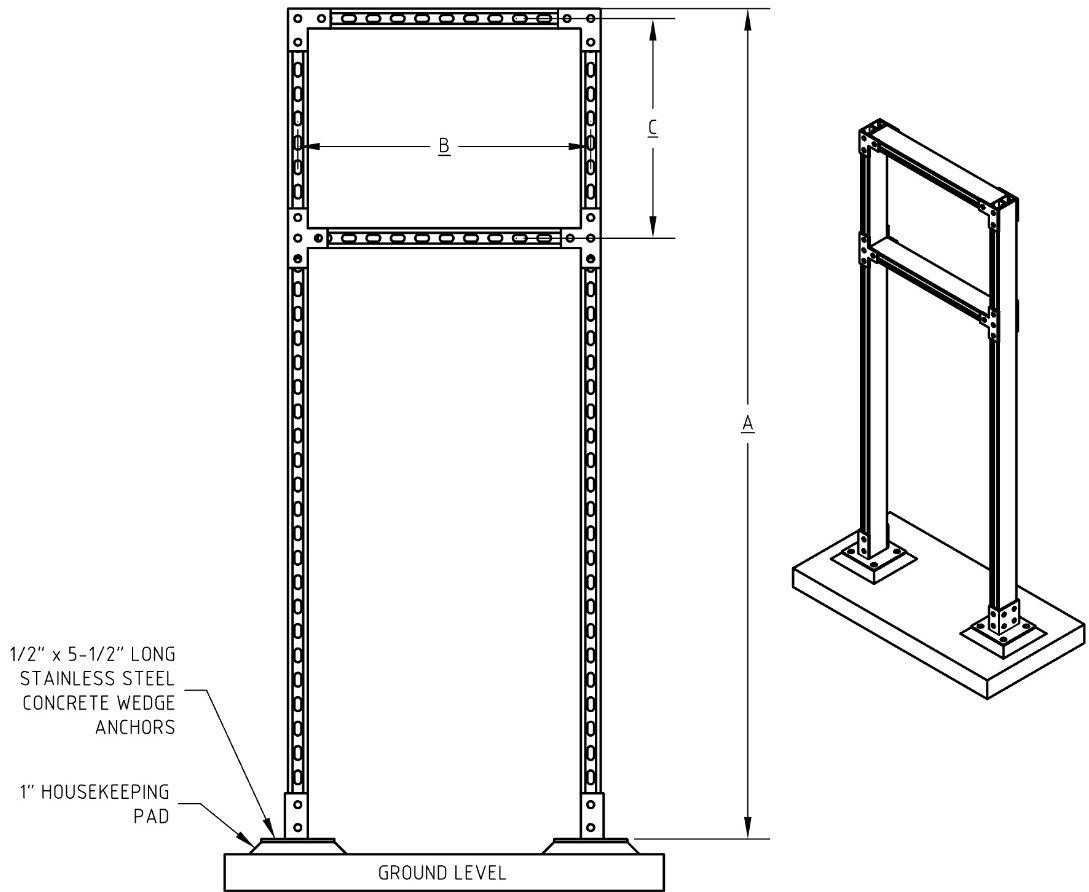

Recommended Strut Rack Design


A in. (mm)

B in. (mm)

C in. (mm)

68 (1730)

24 (610)

Refer to enclosure mounting feet dimensions

Enclosure Specifications

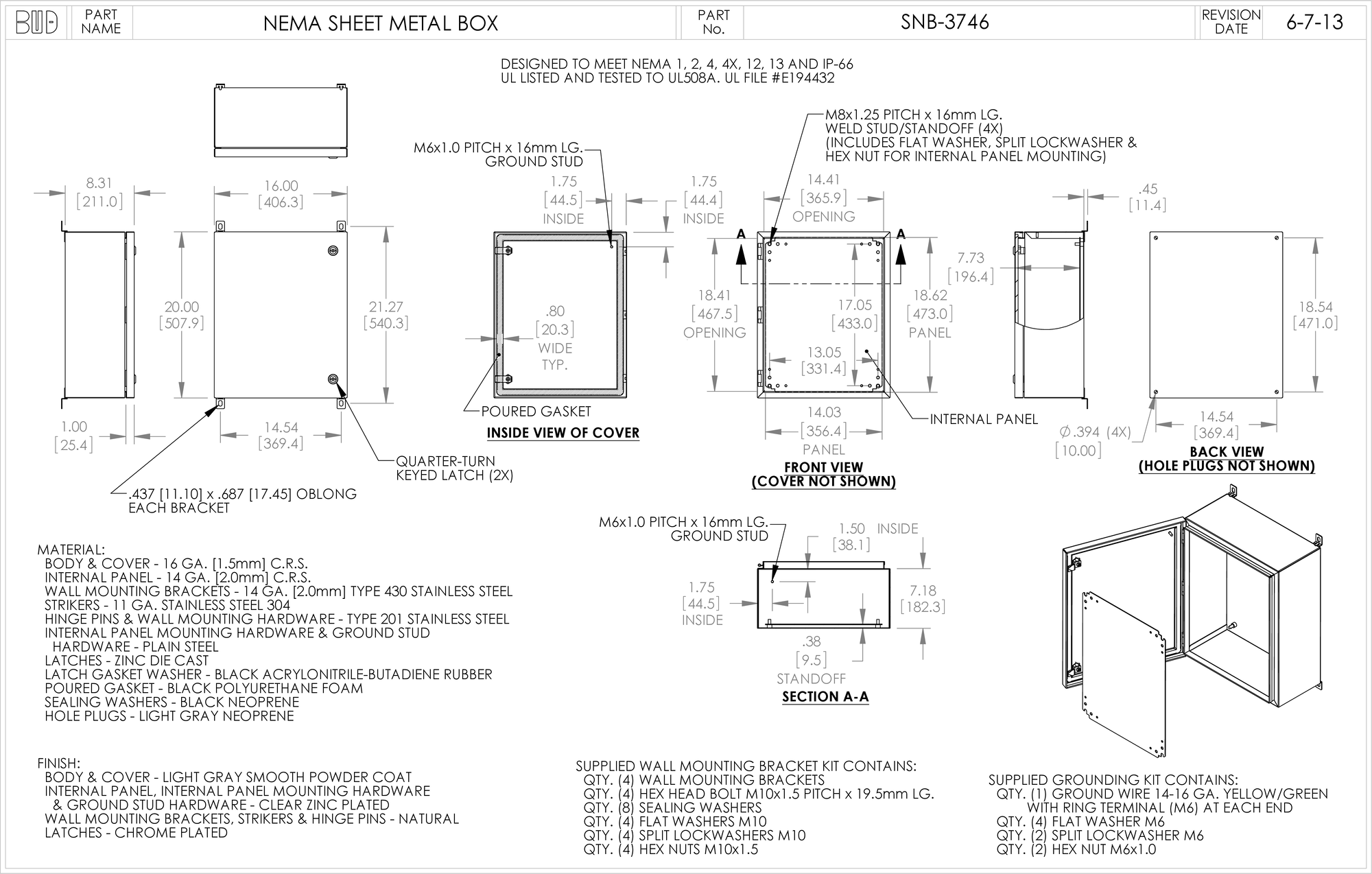

Wired Vibration Monitoring System Enclosure

Catalog Number

Dimensions (in. (mm))

SNB-3746

20.0 (508) x 16.0 (406) x 8.0 (203)

SNB-3746_Drawing.pdf

Specifications:

  • UL 508A Listed Type 1, 2, 4, 4X, 12, and 13 File No. E194432

  • IP Rating: IP65 and IP66

  • RoHS Compliant

  • Powder Coated Steel

Power Requirements

AC Power Supply Requirements

Plant-supplied power source

120 V, 60 Hz or 240 V, 50 Hz

Circuit breaker

Internal 120 V, 5 A

Maximum power consumption

120 W

AC Power Specifications

Input Voltage Range

100 – 240VAC

Input Frequency Range

50 – 60 Hz

Input Power Rating

150 W

Overvoltage Category

II; According to EN62368, EN61558, EN50178, EN60664-1, EN62477-1

Input Wire Connection Type

DIN, Screw-Down Terminal Block

Input Wire Size

26 – 10 AWG

Environmental Specifications

Storage Temperature

-40 ˚C to 85 ˚C (-40 ˚F to 185 ˚F)

Operating Temperature

-20 ˚C to 65 ˚C (-4 ˚F to 149 ˚F)

Storage Humidity

5% RH to 95% RH, non-condensing

Operating Humidity

10% RH to 90% RH, non-condensing

Maximum Altitude

2,000 m (6,500 ft)

Pollution Degree

2

Weight

15.88 – 27.22 kg (35 – 60 lbs.) depending on configuration

Indoor / Outdoor Use

Both

Product Certifications

Table 1. North America

Electromagnetic Compatibility (EMC)

Conforms to FCC 15.107 2026, Class A

FCC 15.109 2026, Class A

Certified to ICES-003 Issue 7 2020, Class A

Safety

Conforms to UL 508A and CSA C22.2 No. 286


Table 2. EU Directive Information – CE Compliance

Electromagnetic Compatibility (EMC) Directive 2014/30/EU

Tested to EN IEC 61326-1 2021, Class A


Table 3. UKCA

Electromagnetic Compatibility (EMC) 2016

Tested to EN 61326-1 2021, Class A


Integration and Infrastructure

The Cutsforth Wired Vibration Monitoring System is designed to be integrated into InsightCMTM software. For more information on InsightCMTM, including specific server requirements, visit the InsightCMTM README on the Cutsforth Support webpage at https://support.cutsforth.com.

The plant must provide a PC or Server for InsightCMTM meeting the requirements listed at the above link. Cutsforth is not responsible for the configuration of server-side deployment. Ensure the plant's InsightCMTM server is set up and ready for communication to field equipment in advance of system commissioning by Cutsforth.
