Equipment List

To install the IR Thermography system, you need the equipment listed below. Some are provided by Cutsforth, and some are provided by the electrical contractor.

Equipment

Supplied by Cutsforth

Supplied by Electrical Contractor

Infrared camera


Controller

  • cRIO-9055 4-slot controller


NEMA 4X rated enclosures:

  • Camera enclosure

  • cRIO enclosure


Conduit


Ethernet cable for data run from camera to cRIO


Ethernet cable for connection to server


600 volt rated power cable


Installation

This section provides step by step instructions for installing the IR Thermography system.

  1. Mount the IR cRIO enclosure at the planned location.

  2. Mount the IR camera enclosure(s) at the planned location(s).

  3. Install the conduit and run cable between the IR cRIO enclosure and the camera enclosure(s).

  4. Install the conduits and run cables for AC power inputs to the cRIO enclosure and camera enclosure(s). Minimum circuit size: 20A circuit free of non-linear loads. Consider a circuit with isolated ground.

  5. Install the conduit and run cable for data connection to the cRIO enclosure. Cutsforth recommends Cat6a or fiber connection (media converter required if using fiber).

  6. Connect protective earth conductor per local electrical codes.

  7. Install wire for 120 – 240VAC supply per local electrical codes.

  8. If required by local electrical codes, install an external switch or circuit breaker near the equipment. Ensure equipment is positioned so that it will not be difficult to operate the external disconnecting device.

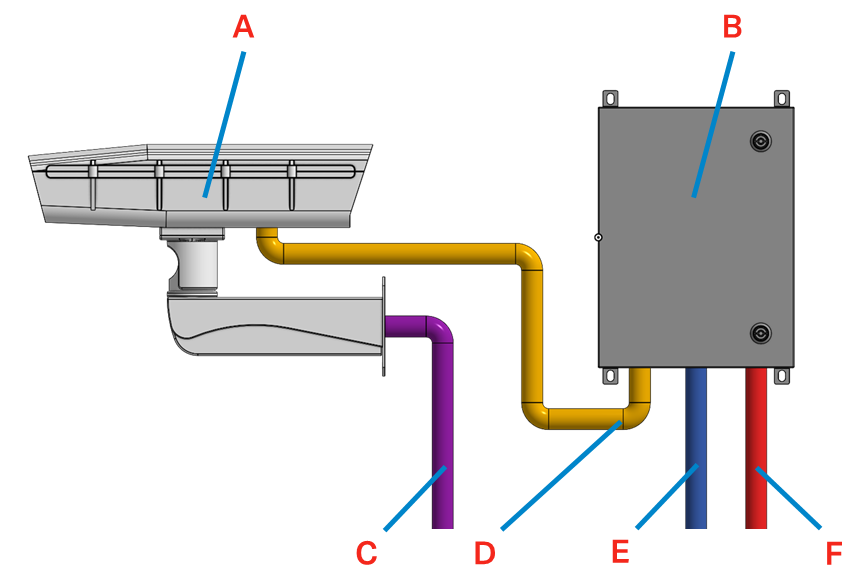

Conduit Layout

Color on Diagram

Conduit Run Description

Conduit Trade Size*

Wire Description

Purpose

Max. Cable Length

Wire Supplied By

Purple

Plant power to IR Camera Enclosure(s)

¾ in (2 cm)

120VAC Power (20A dedicated circuit – preferably with isolated ground)

Power for the camera enclosure

N/A

Plant Electrical Contractor

Yellow

IR Camera Enclosure to cRIO Enclosure

¾ in (2 cm)

Cat6a

Data from camera to cRIO

100 ft

Plant Electrical Contractor

Blue

IR cRIO Enclosure to InsightCM Server

¾ in (2 cm)

Cat6a or Fiber

Data to InsightCM Server

330 ft (100 m)

Plant Electrical Contractor

Red

Plant power to IR cRIO Enclosure

¾ in (2 cm)

120VAC Power (20A dedicated circuit – preferably with isolated ground)

Power for the cRIO enclosure

N/A

Plant Electrical Contractor

*cRIO Enclosures do not come with conduit holes pre-drilled. Conduit sizing and hole placement is customizable.


Up to seven (7) cameras can be connected to each cRIO, provided that cable lengths stay within the specified limitations.

Part

Name

A

Cutsforth IR Thermography Camera Enclosure

B

Cutsforth IR Thermography cRIO Enclosure

C

Purple: Plant Power Input to Camera Enclosure

D

Yellow: Data from Camera to cRIO

E

Blue: Data Output to InsightCM Network

F

Red: Plant Power Input to cRIO Enclosure

Conduit and Strut Channel Recommendations

Component

Standard Recommendation

Recommendation for High-Corrosion Environments

Conduit type

Galvanized rigid metal conduit (RMC)

Rigid Aluminum Conduit (RAC)

Conduit fittings type

Malleable, NEMA 4X rated or greater

Aluminum

Strut channel type

Hot dipped galvanized, back-to-back

316 Stainless steel

Mounting hardware

316 Stainless steel

316 Stainless steel

Liquid flexible metallic conduit

Type HCX

Type HCX

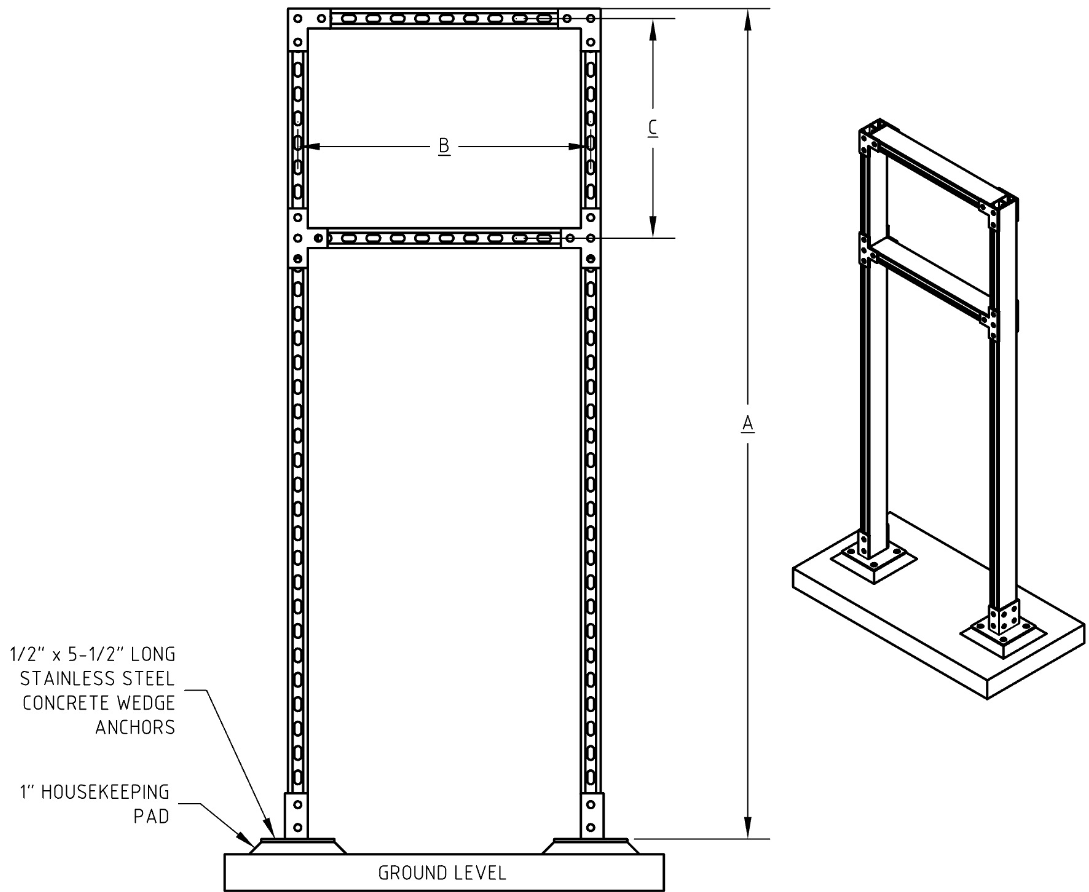

Recommended Strut Rack Design for cRIO Enclosure


A in. (mm)

B in. (mm)

C in. (mm)

68 (1730)

24 (610)

Refer to enclosure mounting feet dimensions

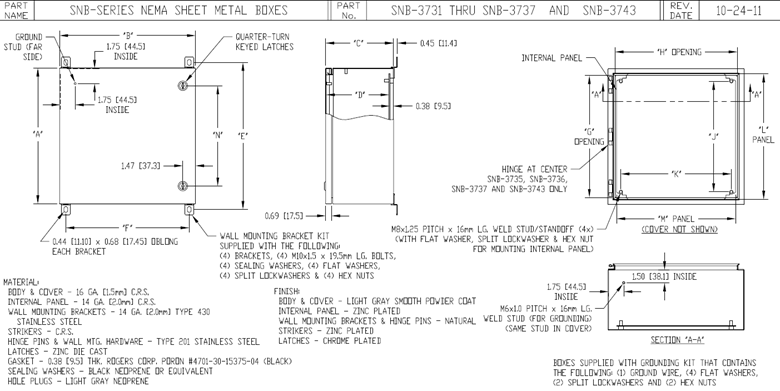

Enclosure Specifications

IR Thermography cRIO Enclosure

Catalog Number

Dimensions (in. (mm))

SNB-3736

15.75 (400) x 11.81 (300) x 7.87 (200)


Specifications:

  • UL 508A Listed Type 1, 2, 4, 4X, 12 and 13

  • IP Rating: IP65 and IP66

  • RoHS Compliant

  • Powder Coated Steel

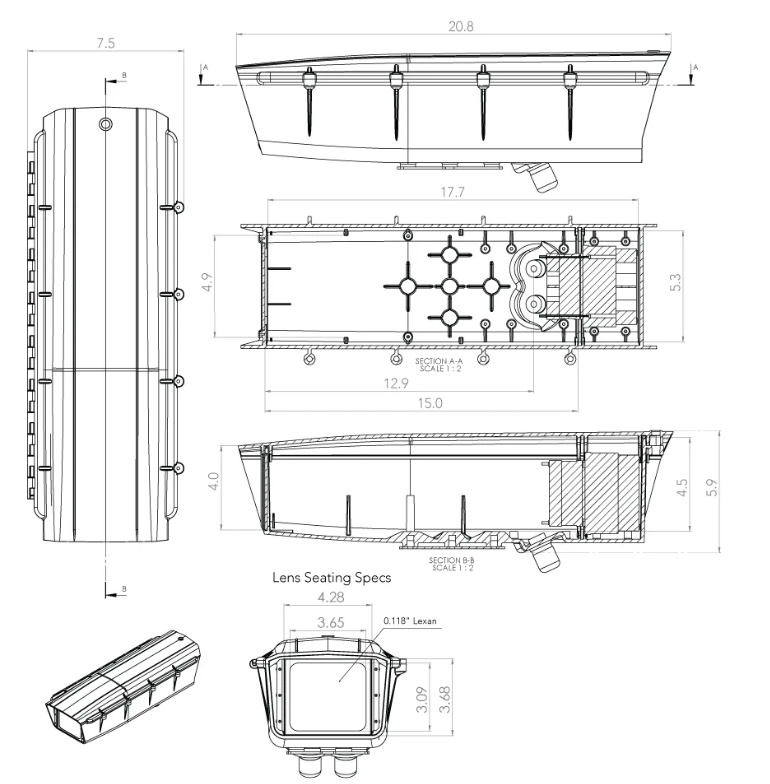

IR Thermography Camera Enclosure

Catalog Number

Dimensions (in. (mm))

ST-CD-HBX-24V-SS

20.9 (531) x 7.5 (191) x 6.7 (170)


Specifications:

  • Active cooling (400 BTU) and heating (65 Watts)

    • Both thermostatically controlled

    • 25 CFM fan (always on)

  • UV-resistant polycarbonate body

  • Stainless steel mounting arm

  • IP Rating: IP66

  • IK Rating: IK10

Enclosure Cleaning

Power Requirements

AC Power Supply Requirements

cRIO Enclosure

Plant-supplied power source

120 V, 60 Hz or 240 V, 50 HZ

Circuit breaker

Internal 120 V, 5 A

Maximum power consumption

72 W

Camera Enclosure

Plant-supplied power source

120 V, 60 Hz or 240 V, 50 HZ

Circuit breaker

N/A

Maximum power consumption

165 W

AC Power Specifications

cRIO Enclosure

Input Voltage Range

100 – 240 VAC

Input Frequency Range

50 – 60 Hz

Input Power Rating

150 W

Overvoltage Category

II; According to EN62368, EN61558, EN50178, EN60664-1, EN62477-1

Input Wire Connection Type

DIN, Screw-Down Terminal Block

Input Wire Size

26 – 10 AWG

Camera Enclosure

Input Voltage Range

90 – 305 VAC

Input Frequency Range

47 – 63 Hz

Input Power Rating

240 W

Input Wire Connection Type

Butt splice, Wire nut

Input Wire Size

22 – 14 AWG

Environmental Specifications

cRIO Enclosure

Storage Temperature

-40 ˚C to 85 ˚C (-40 ˚F to 185 ˚F)

Operating Temperature

-20 ˚C to 65 ˚C (-4 ˚F to 149 ˚F)

Storage Humidity

5% RH to 95% RH, non-condensing

Operating Humidity

10% RH to 90% RH, non-condensing

Maximum Altitude

2,000 m (6,500 ft)

Pollution Degree

2

Weight

11.34 kg (25 lbs.)

Indoor / Outdoor Use

Both

Camera Enclosure

Storage temperature

-40 ˚C to 70 ˚C (-40 ˚F to 158 ˚F)

Operating temperature

-25 ˚C to 65 ˚C (-13 ˚F to 149 ˚F)

Storage humidity

10% RH to 95 % RH, non-condensing

Operating humidity

10% RH to 95 % RH, non-condensing

Product Certifications

Table 1. North America

Electromagnetic Compatibility (EMC)

Conforms to FCC 15.107 2026, Class A

FCC 15.109 2026, Class A

Certified to ICES-003 Issue 7 2020, Class A

Safety

Conforms to UL 508A and CSA C22.2 No. 286


Table 2. EU Directive Information – CE Compliance

Electromagnetic Compatibility (EMC) Directive 2014/30/EU

Tested to EN IEC 61326-1 2021, Class A


Table 3. UKCA

Electromagnetic Compatibility (EMC) 2016

Tested to EN 61326-1 2021, Class A


Instrumentation


Integration and Infrastructure

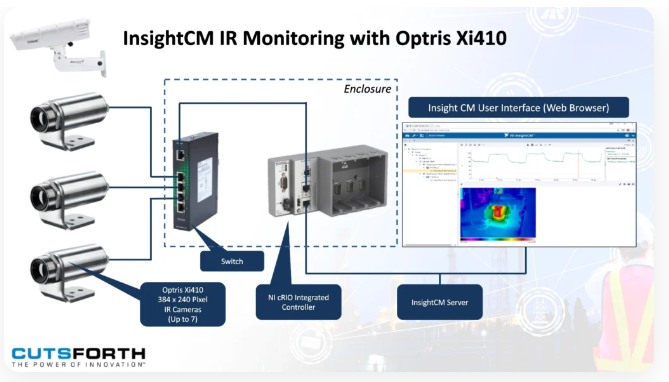

The Cutsforth ESA Monitoring System is designed to be integrated into InsightCMTM software. For more information on InsightCMTM, including specific server requirements, visit the InsightCMTM README on the Cutsforth Support webpage at https://support.cutsforth.com.

The plant must provide a PC or Server for InsightCMTM meeting the requirements listed at the above link. Cutsforth is not responsible for the configuration of server-side deployment. Ensure the plant's InsightCMTM server is set up and ready for communication to field equipment in advance of system commissioning by Cutsforth.
