Color on Diagram (see below) |
Conduit Run Description |
Conduit Trade Size |
Max Run Length |
Wire Description |
Purpose |
Wire Supplied by |
Conduit Supplied by |
|---|---|---|---|---|---|---|---|
|
Blue |
Plant 120VAC Power to cBCM |
3/4 in (2 cm) |
N/A |
AC 85-264 V AC, 47-440 Hz, 10 W20 A Circuit |
Power for the Monitoring System |
Plant Electrical Contractor |
Plant Electrical Contractor |
|
Yellow |
cBCM to Exciter Housing |
1/2 in (1.27 cm) |
18ft (5.5 m) |
LMR-240 Coax with SMA ends |
Brush Health Sensor antenna signal cable |
Cutsforth |
Plant Electrical Contractor |
|
Red (Optional) |
cBCM to Modbus Server |
3/4 in (2 cm) |
N/A |
Ethernet cable (TCP/IP) or DB9 Serial cable (RTU) |
Modbus data outputs |
Plant Electrical Contractor |
Plant Electrical Contractor |
|

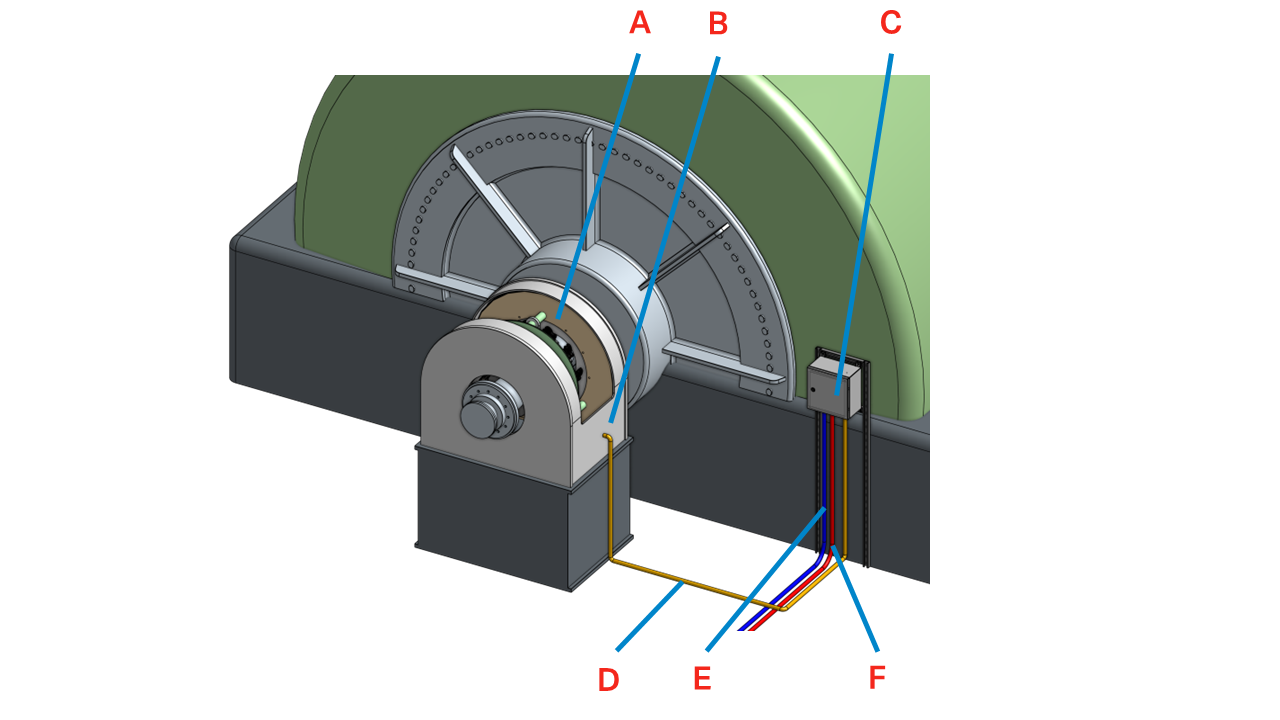

Part |
Name |
|---|---|
|
A |
EASYchange® Brush Holders and Brush Health Sensors |
|
B |
Antenna (inside exciter housing) |
|
C |
Compact Brush Condition Monitoring System (cBCM) |
|
D |
Yellow: 1/2 in. (1.27 cm) Conduit from cBCM to Exciter Housing |
|
E |
Blue: 3/4 in. (2 cm) Conduit from Plant Power Supply to cBCM |
|
F |
(Optional) Red: 3/4 in. (2 cm) Conduit for Modbus Output from cBCM |
|
Catalog Number |
A |
B |
C |
Steel Type |
Door/Body Gauge |
Latch Qty |
|---|---|---|---|---|---|---|
|

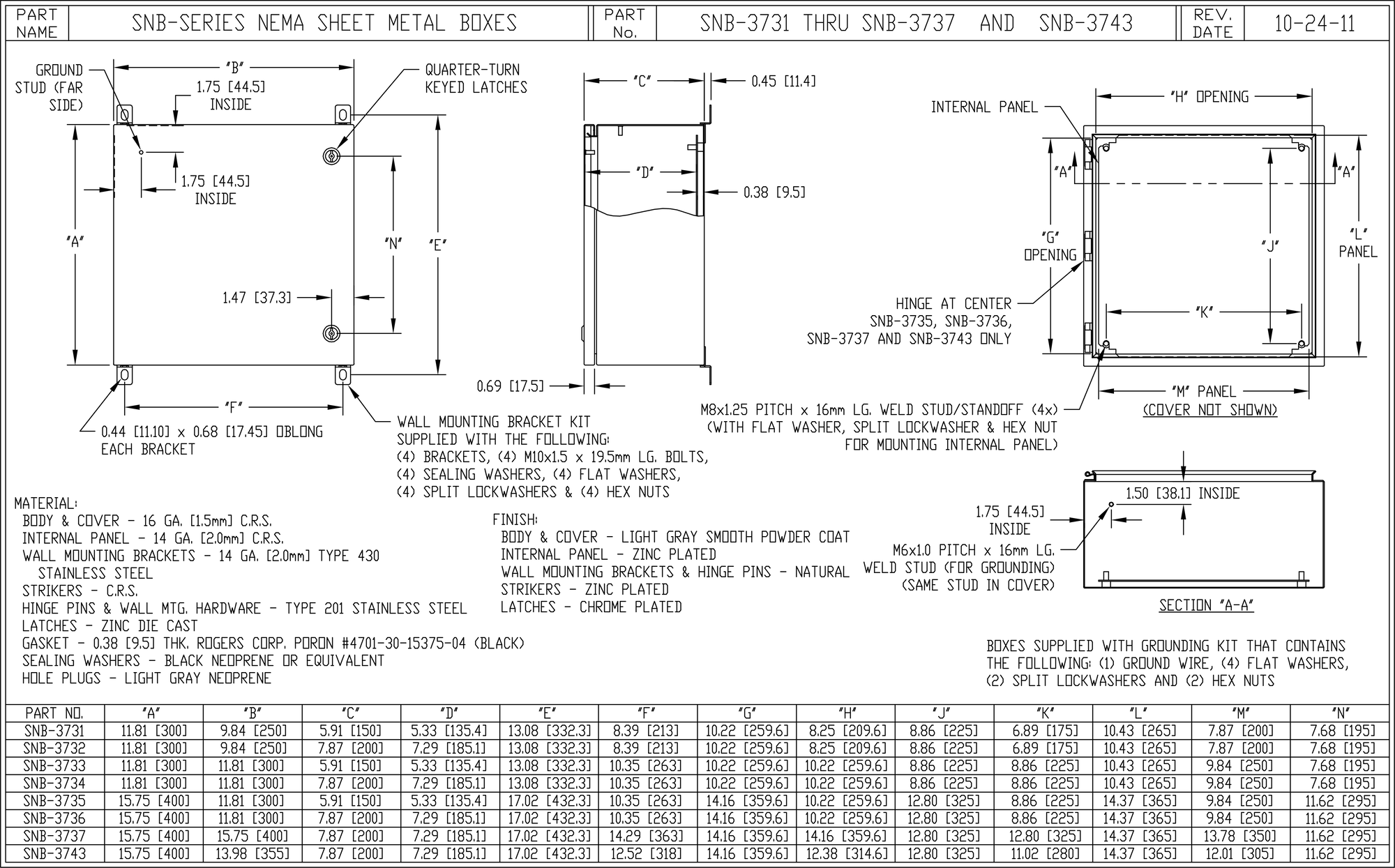

SNB-3734 |
11.81 in (300 mm) |
11.81 in (300 mm) |
7.87 in (200 mm) |
Painted Steel, Cold Rolled |
16 |
1 |

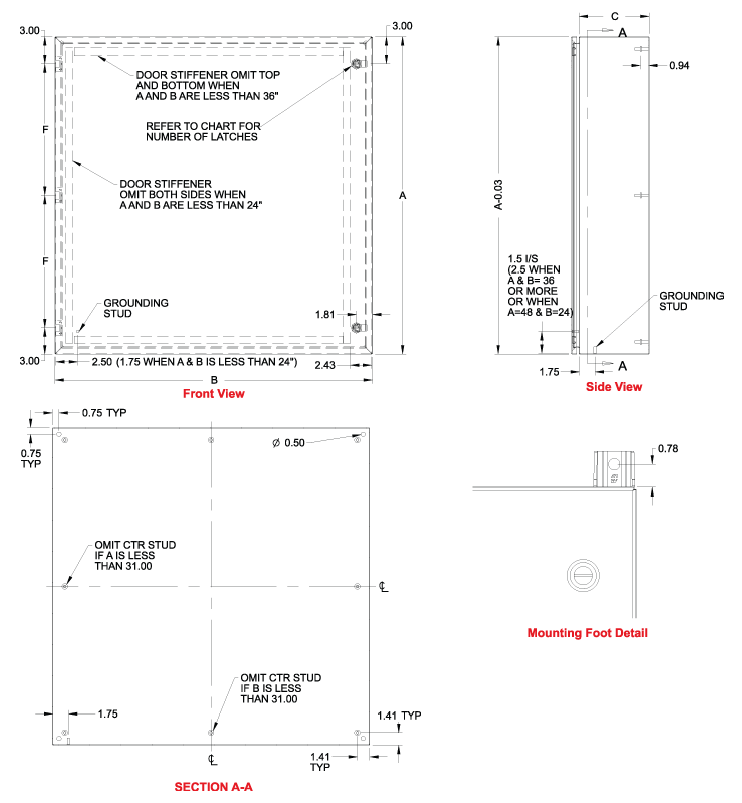

Specifications:
|
|
|
Catalog Number |
A |
B |
C |
Steel Type |
Door/Body Gauge |
Latch Qty |
|---|---|---|---|---|---|---|
|
EN4SD12126S16 |
12.0 in (305 mm) |
12.0 in (305 mm) |
6.00 in (152 mm) |
316 Stainless |
16 |
1 |
Specifications:
|
|
