To install the ESA Monitoring system, you need the equipment listed below. Some are provided by Cutsforth, and some are provided by the electrical contractor.
|
Equipment |
Supplied by Cutsforth |
Supplied by Electrical Contractor |
|---|---|---|
|
Current Sensor |
|
|
|
Controller – one or two of the following (depending on number of motors being monitored):
|
|
|
|
NI-9242 or NI-9244 voltage bus input card |
|
|
|
NI-9239 Voltage Input Module for voltage output current sensor |
|
|
|
NEMA 4X rated enclosure |
|
|
|
Multi-paired, shielded, Tray Cable for PT and Current Sensor signal Inputs |
|
|
|
Conduit |
|
|
|
Ethernet cable for connection to server |
|
|
|
600 volt rated power cable |
|
This section provides step-by-step instructions for installing the ESA Monitoring System enclosure.
-
Mount the ESA System enclosure at the planned location.
-
Install the conduit between the ESA Monitoring System and each voltage bus pickup point.
-

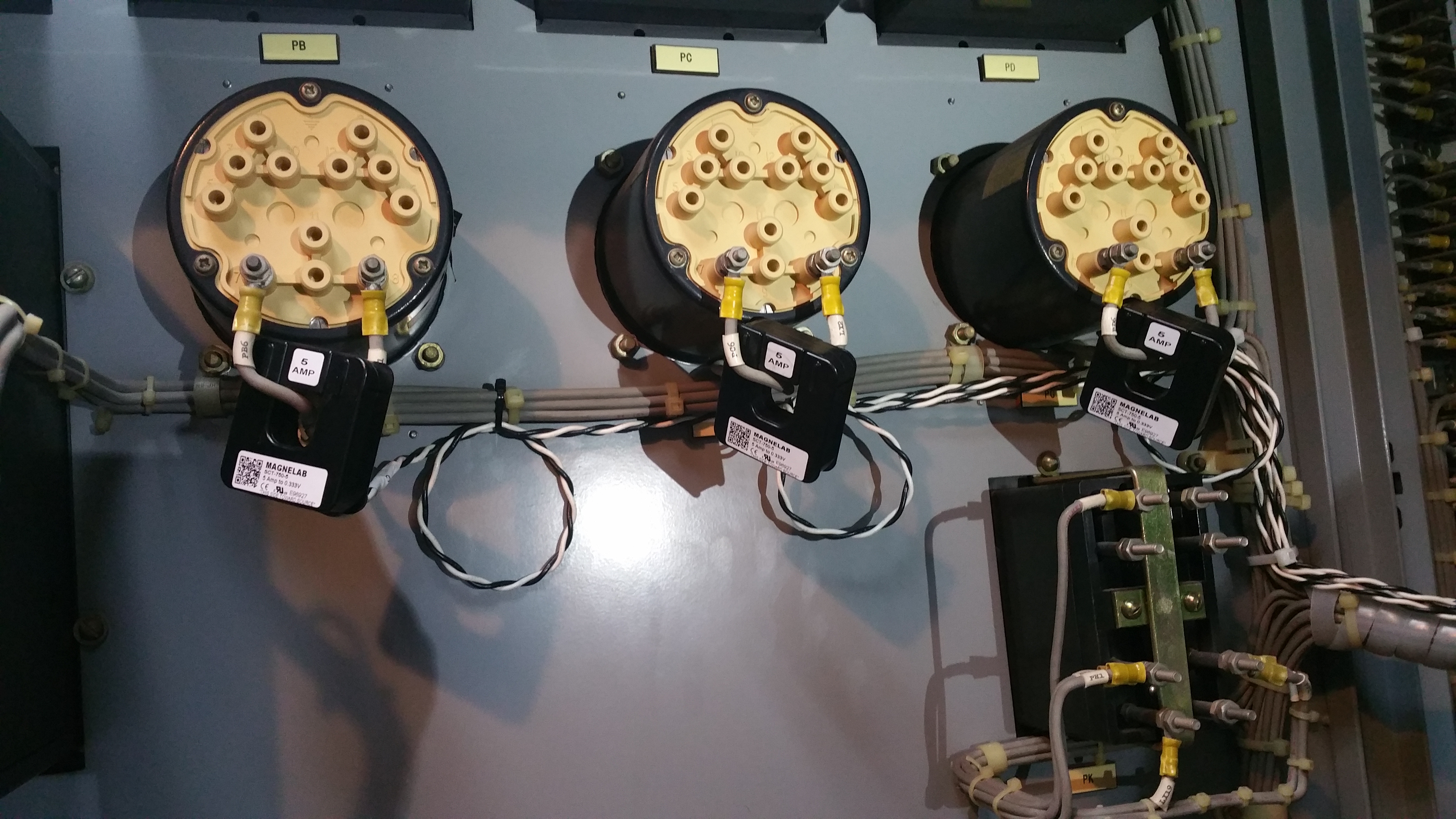

Install the conduit between the ESA Monitoring System and each current sensor pickup point. Current sensor cables may be combined in conduit as long as it is appropriately sized. Current sensor cables should not be combined with PT cables.
-
Install the conduit for 120VAC power. Minimum circuit size: 20A 120VAC power supply free of non-linear loads. Consider a circuit with isolated ground.
-
Install the conduit and wire for data connection. Cutsforth recommends Cat6a or fiber connection (media converter required).
-
Connect protective earth conductor per local electrical codes.
-
Install wire for 120–240VAC supply per local electrical codes.
-
If required by local electrical codes, install an external switch or circuit breaker near the equipment. Ensure equipment is positioned so that it will not be difficult to operate the external disconnecting device.
|

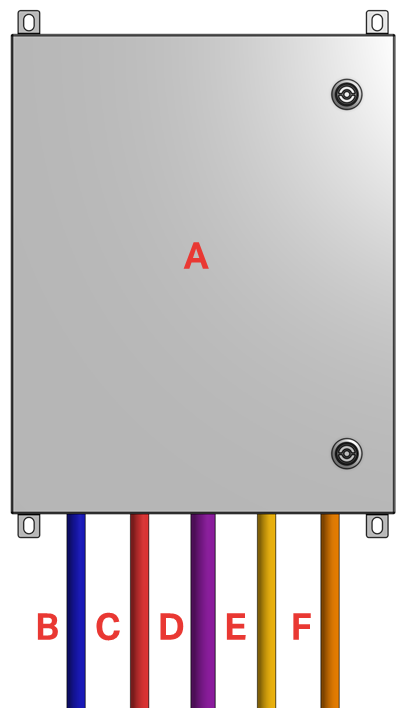

Color on Diagram |
Conduit Run Description |
Conduit Trade Size* |
Wire Description |
Purpose |
Max. Cable Length |
Wire Supplied By |
|---|---|---|---|---|---|---|
|
Blue |
ESA Enclosure to InsightCM Server |
3/4 in (2 cm) |
Cat6a Cable or Fiber |
Data to InsightCM Server |
330 ft (100 m) |
Plant Electrical Contractor |
|
Red |
Plant Power to ESA Enclosure |
3/4 in (2 cm) |
120VAC Power (20A dedicated circuit – preferably with isolated ground) |
Power for the Monitoring System |
N/A |
Plant Electrical Contractor |
|
Purple |
Current Sensor Voltage Output to ESA Enclosure |
Size dependent on cable type used and quantity. Follow NEC and site electrical specification for proper sizing. |
Shielded Twisted Pair |
Current Sensor Signal In |
100 ft |
Plant Electrical Contractor |
|
Yellow |
Voltage Bus Signals to ESA Enclosure |
3/4 in (2 cm) |
Shielded Twisted Pair |
Voltage Bus Signal In |
100 ft |
Plant Electrical Contractor |
*Enclosures do not come with conduit holes pre-drilled. Conduit sizing and hole placement is customizable.
|
|
|
|
Component |
Standard Recommendation |
Recommendation for High-Corrosion Environments |
|---|---|---|
|
Conduit type |
Galvanized rigid metal conduit (RMC) |
Rigid Aluminum Conduit (RAC) |
|
Conduit fittings type |
Malleable, NEMA 4X rated or greater |
Aluminum |
|

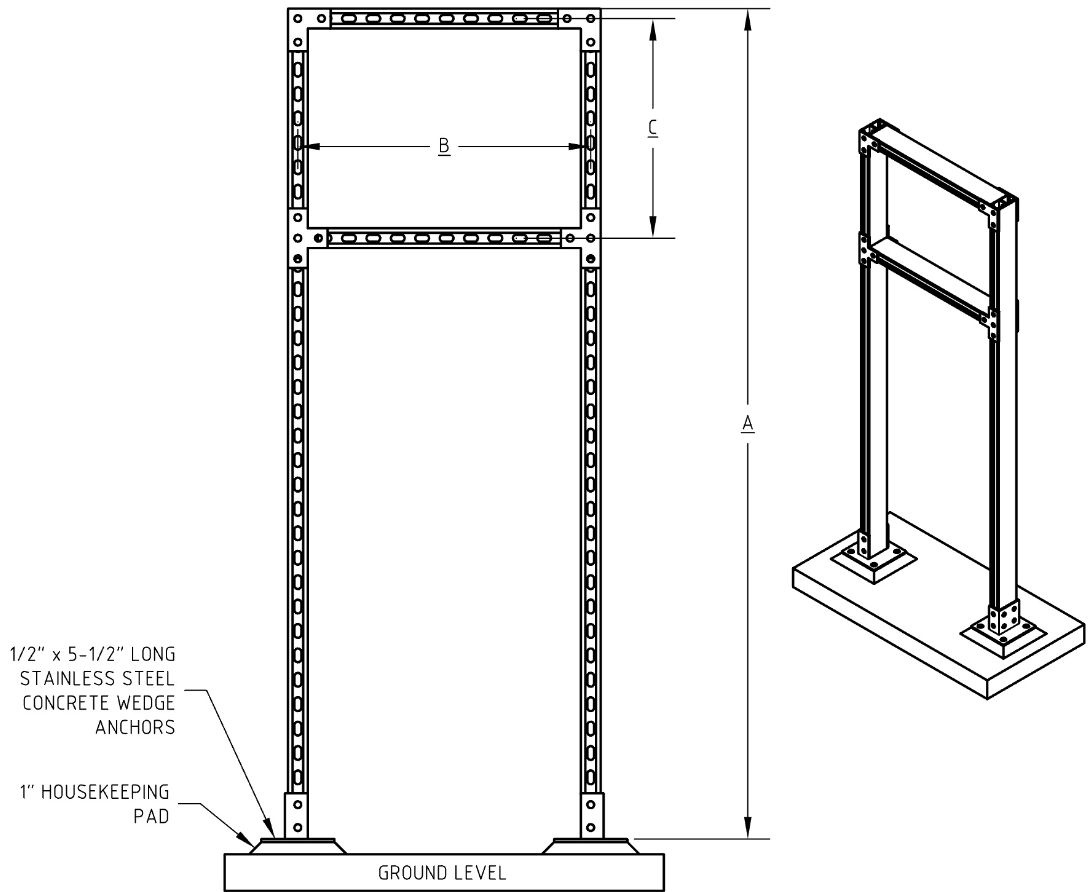

Strut channel type |
Hot dipped galvanized, back-to-back |
316 Stainless steel |
|
Mounting hardware |
316 Stainless steel |
316 Stainless steel |
|
Liquid flexible metallic conduit |
Type HCX |
Type HCX |
Note
The specific enclosure used is determined by the space requirements of the requested product configuration.
|
Catalog Number |
Dimensions (in. (mm)) |
|---|---|
|

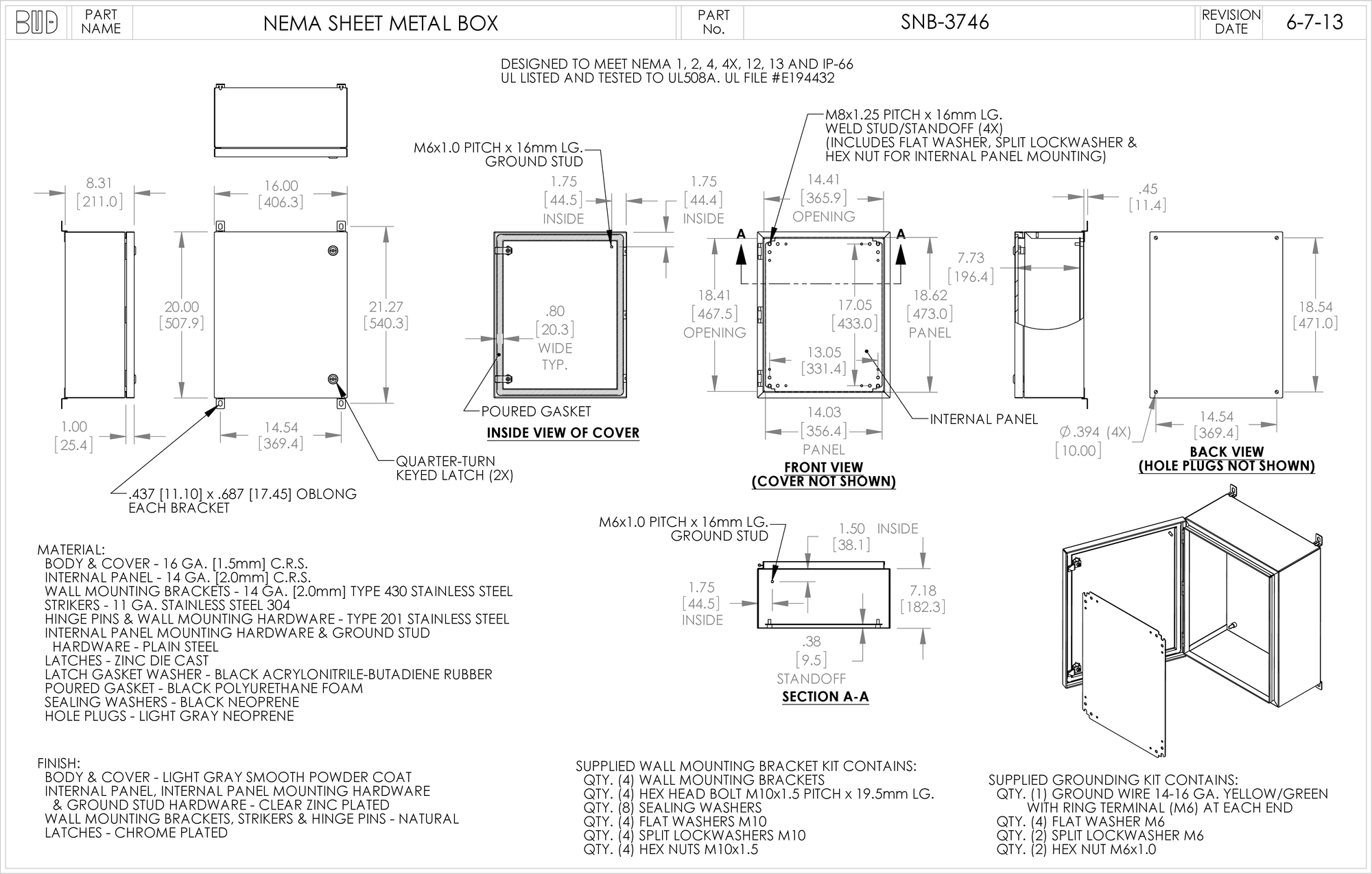

SNB-3746 |
20.0 (508) x 16.0 (406) x 8.0 (203) |
|

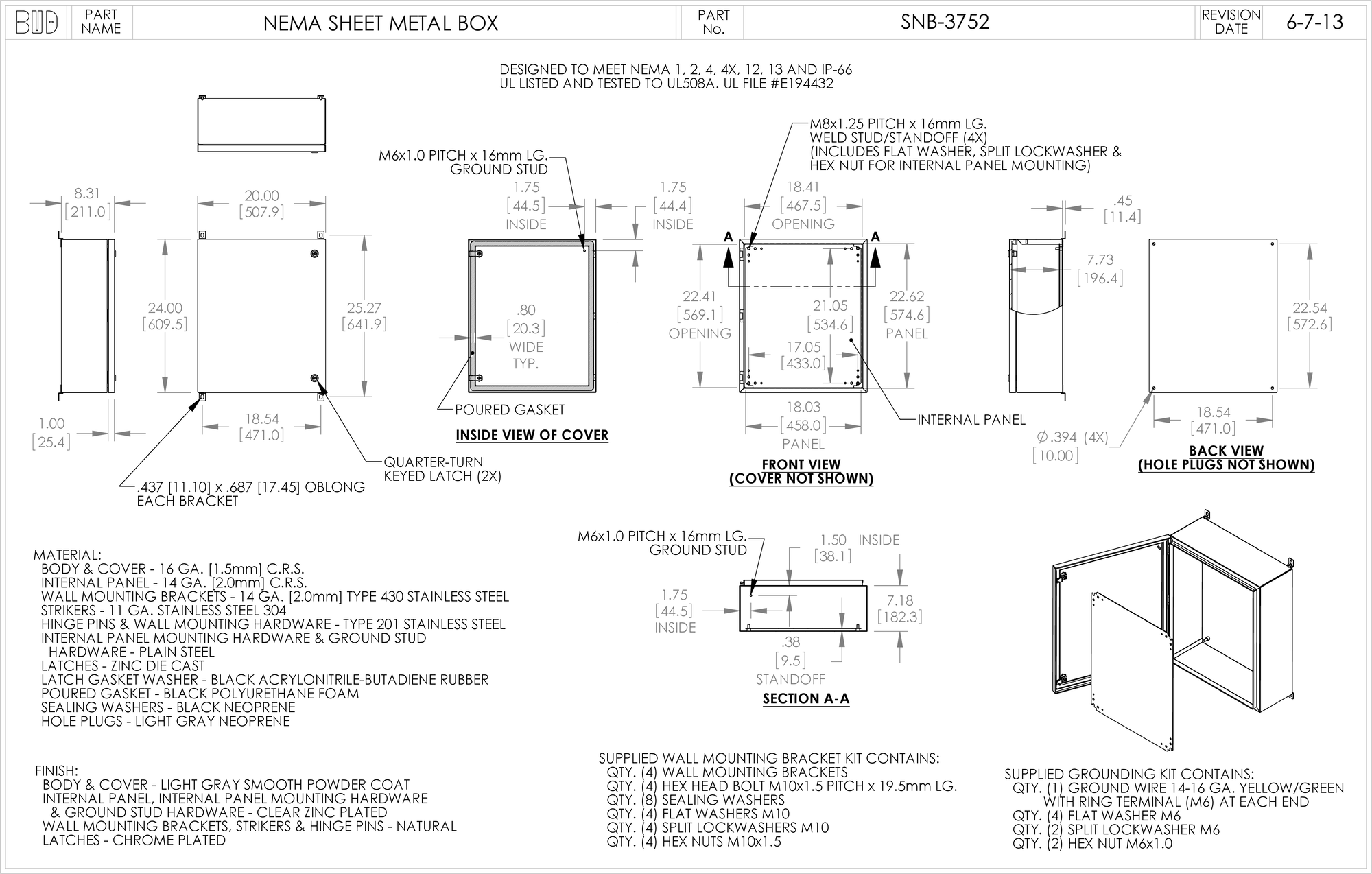

SNB-3752 |
24.0 (610) x 20.0 (508) x 8.0 (203) |
Specifications:
-
UL 508A Listed Type 1, 2, 4, 4X, 12, and 13 File No. E194432
-
IP Rating: IP65 and IP66
-
RoHS Compliant
-
Powder Coated Steel
|
Plant-supplied power source |
120 V, 60 Hz AC or 240 V, 50 Hz |
|
Circuit breaker |
Internal 120 V, 5 A |
|
Current draw under normal usage |
Approximately 0.6 A |
|
Storage Temperature |
-40 °C to 85 °C (-40 °F to 185 °F) |
|
Operating Temperature |
-20 °C to 65 °C (-4 °F to 149 °F) |
|
Storage Humidity |
5% RH to 95% RH, non-condensing |
|
Operating Humidity |
10% RH to 90% RH, non-condensing |
|
Maximum Altitude |
2,000 m (6,500 ft) |
|
Pollution Degree |
2 |
|
Weight |
15.88 – 27.22 kg (35 – 60 lbs.) depending on configuration |
|
Indoor / Outdoor Use |
Both |
Table 1. North America
|
Electromagnetic Compatibility (EMC) |
Conforms to FCC 15.107 2026, Class A FCC 15.109 2026, Class A Certified to ICES-003 Issue 7 2020, Class A |
|
Safety |
Conforms to UL 508A and CSA C22.2 No. 286 |
Table 2. EU Directive Information – CE Compliance
|
Electromagnetic Compatibility (EMC) Directive 2014/30/EU |
Tested to EN IEC 61326-1 2021, Class A |

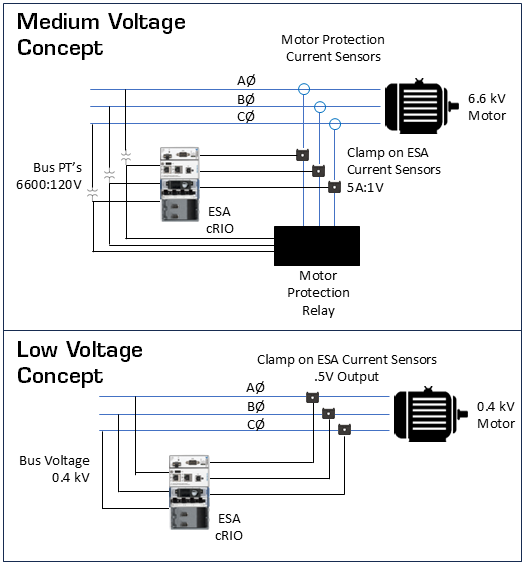

The ESA system potential (voltage) measurements can be made by paralleling to an existing bus PT (typical in medium voltage systems) or paralleling directly from the bus (low voltage system).
Medium voltage connection points may be made from the load side of the existing PT fuses, existing relay test switches, or relay voltage inputs.

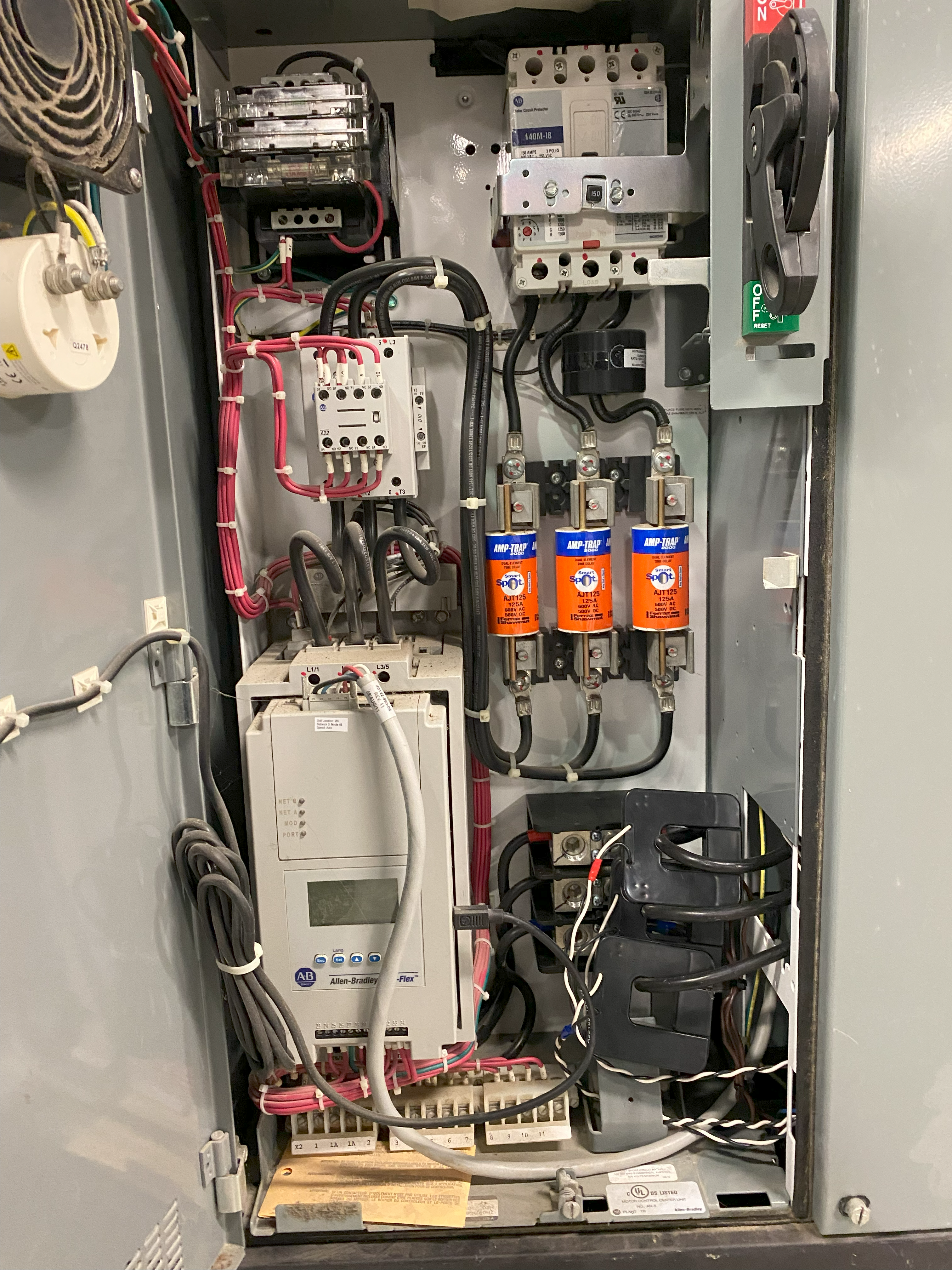

Low voltage connection points may be directly connected to the bus, auxiliary connection points on an MCC breaker, or existing motor test points.
It is important to specify the line-to-line voltage magnitude and configuration (delta/wye) when ordering your ESA monitoring equipment so the appropriate input module can be included in your build.
The Cutsforth Monitoring System is designed to be integrated into InsightCMTM software. For more information on InsightCMTM, including specific server requirements, visit the InsightCMTM README on the Cutsforth Support webpage at https://support.cutsforth.com.
The plant must provide a PC or Server for InsightCMTM meeting the requirements listed at the above link. Cutsforth is not responsible for the configuration of server-side deployment. Ensure the plant's InsightCMTM server is set up and ready for communication to field equipment in advance of system commissioning by Cutsforth.
